AMI 415 - Figure 2 AC Power Set up (Transformer Jumpers - International)

Model 415
Operation Manual
INTERNATIONAL TRANSFORMER TERM
INAL JUMPER SET UP

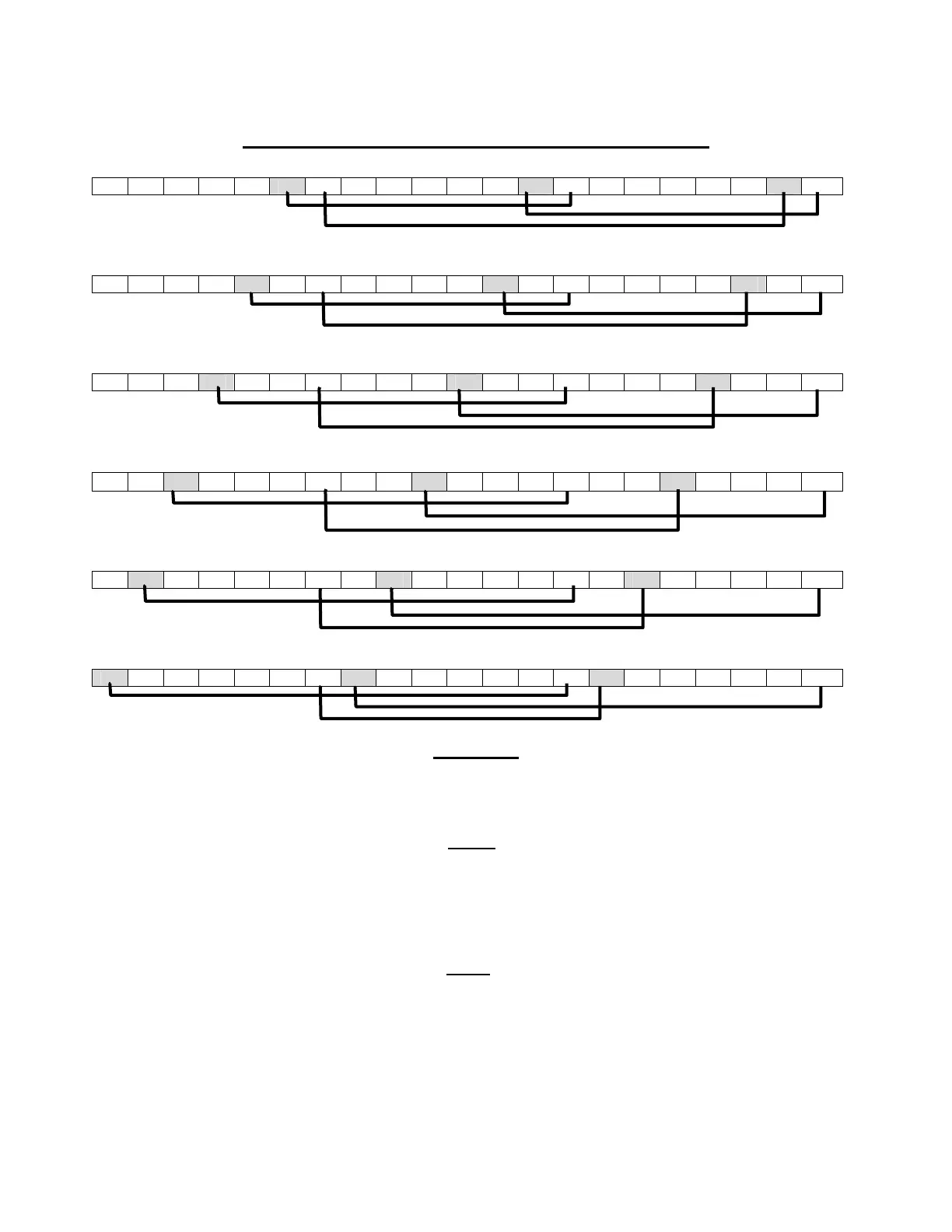

200 VOLT TERMINAL JUMPER SETTINGS
6 5 4 3 2
Docume
nt No. 740084
Revision N
15
1 U1 12 11 10 9 8 7 V1 18 17 16 15 14 13 W1
240 VOLT TERMINAL JUMPER SETTINGS
6 5 4 3 2 1 U1 12 11 10 9 8 7 V1 18 17 16 15 14 13 W1
400 VOLT TERMINAL JUMPER SETTINGS
6 5 4 3 2 1 U1 12 11 10 9 8 7 V1 18 17 16 15 14 13 W1
440 VOLT TERMINAL JUMPER SETTINGS
6
5 4 3 2 1 U1 12 11 10 9 8 7 V1 18 17 16 15 14 13 W1
480 VOLT TERMINAL JUMPER SETTINGS
6 5 4 3 2 1 U1 12 11 10 9 8 7 V1 18 17 16 15 14 13 W1
575 VOLT TERMINAL JUMPER SETTINGS
6 5 4 3 2 1 U1 12 11 10 9 8 7 V1 18 17 16 15 14 13 W1
FIGURE 2
.NOTE
During the first production run of M-415s there were two (2) types of transformers offered by AMI.
Later production runs were replaced by a single Universal type. If your Power supply was
manufactured before January 1999 it may be configured differently than the above figure.
Page 3.8 depicts jumper information for the two obsolete versions.
NOTE
3 phase power in most European countries in slowly being changed from 380 VAC to 400 VAC.
If the user still has 380 VAC he is advised to use the 400 VAC tap.
