Installation Guide
Location
The KW950 can be mounted using the trunnion mount supplied.
Alternatively The DIN case will fit a 68 by 132 mm panel cut-out using optional fixing clamps.
Wiring
Cable entry is via glands on the rear panel. The cable tails should be long enough for the
instrument to be withdrawn for service. The glands are designed for miniature screened cable,
standard shipboard cables should be terminated at an intermediate junction box.
Earthing
The power earth line should be grounded, and the screen of the NMEA 0183 output.
Connections

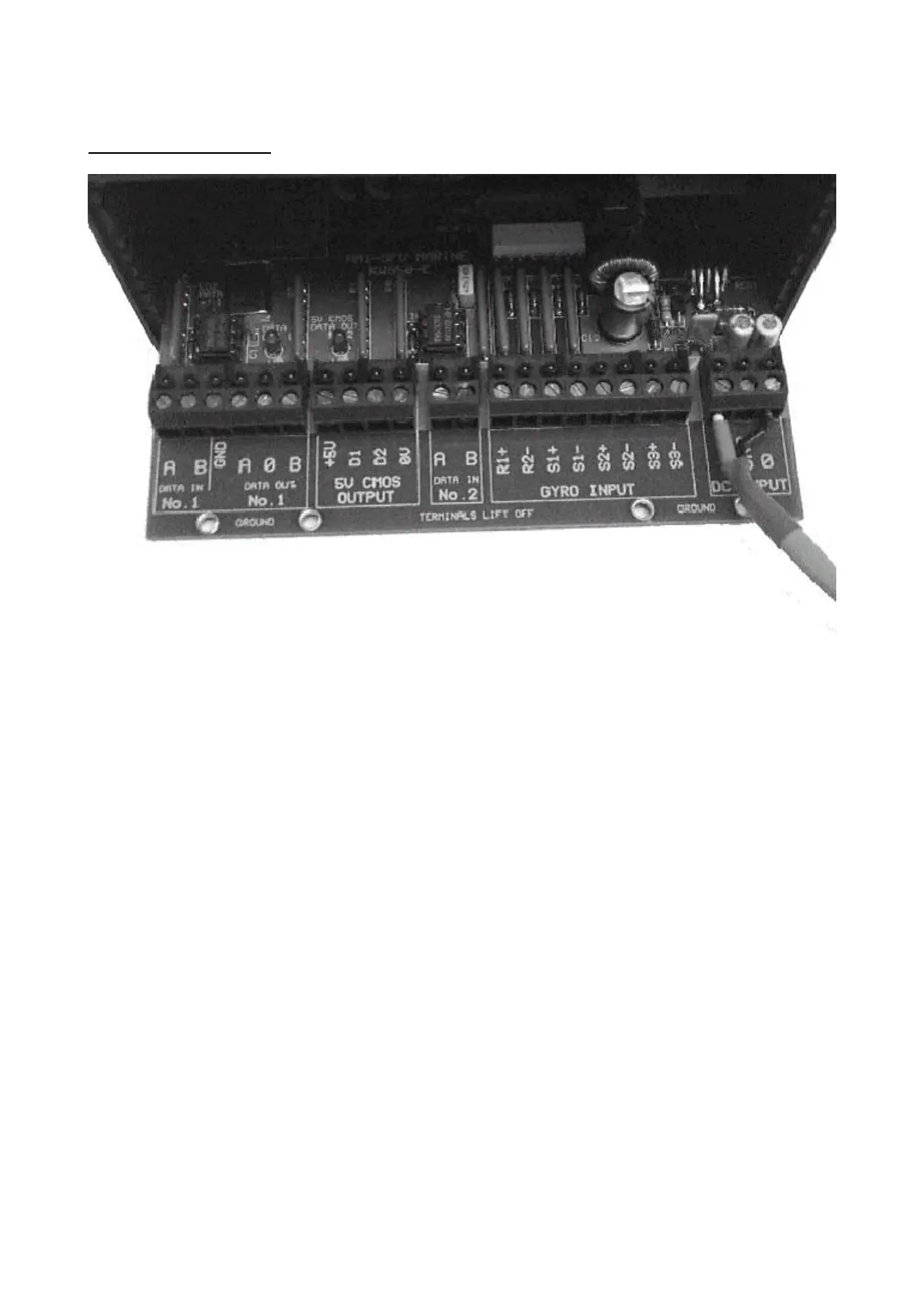

Remove the Rear panel. The interface PCB will pull out to give easy access to the connectors.
Note that the connectors lift off for convenience, and may be refitted vertically or horizontally.
Power Supply SK1
+ / - DC Volts, and EARTH.
Note that the NMEA 0183 and the 5V CMOS data are connected to the power 0V line.
