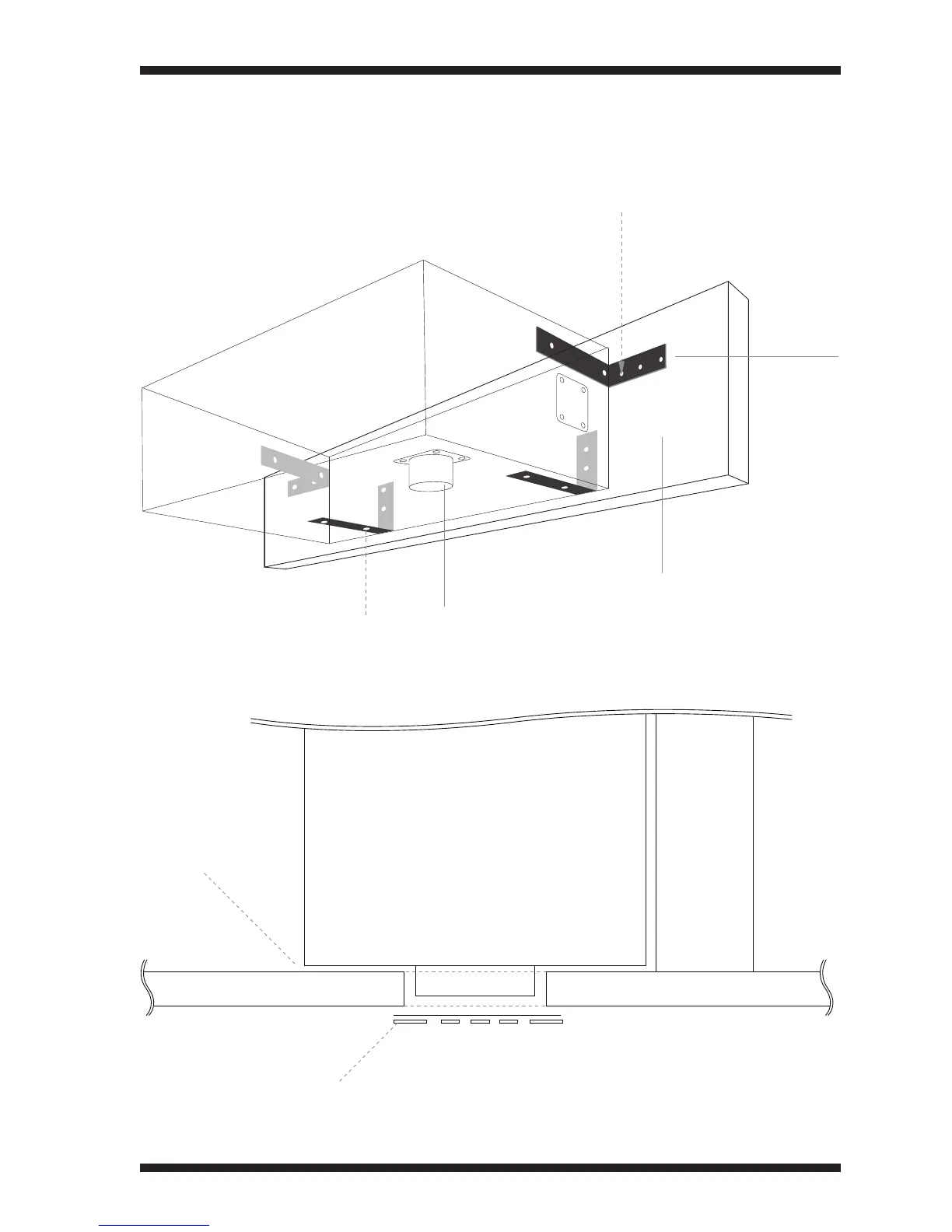

Positioning the ALF80 (Diagram)
In-Ceiling cont.
32mm screws
into joist
Brackets
Port
13mm screws
into ALF80
Detail view
min 10mm
max 80mm gap
ALF80
Ceiling joist
Plasterboard ceiling
Ceiling joist
Port trim
