Ammann APH 5020 - Technical Data

APH 5020 APH 5030 APH 6020 APH 6530 APH 100-20

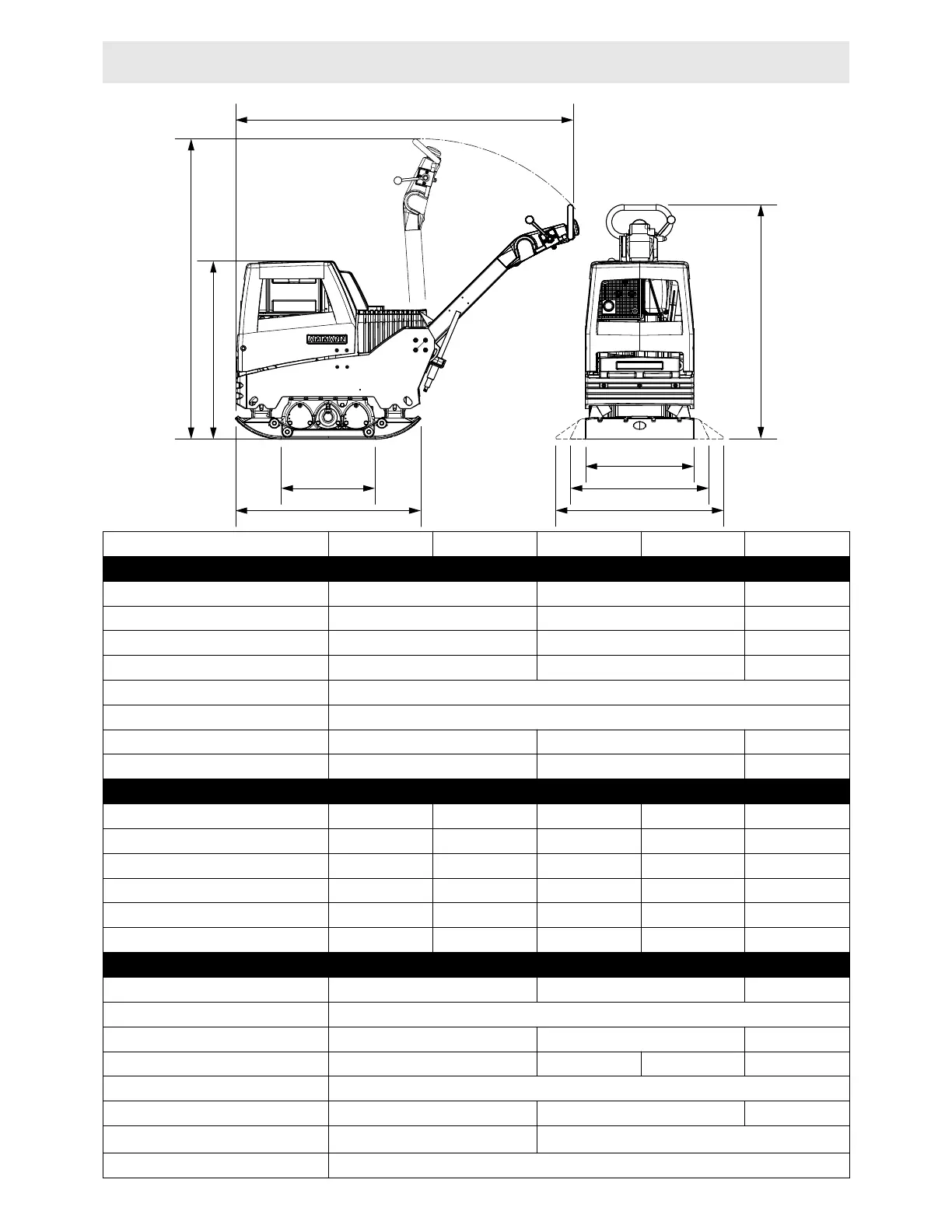

1. Dimensions
L
1600 mm 1840 mm 1965 mm
L1
900 mm 930 mm 1070 mm
L2
450 mm 470 mm 520 mm
H
775 mm 870 mm 900 mm
H1
ca. 1000 mm
H2
ca. 1500 mm
Working width, base unit
450 mm 550 mm 650 mm
w. mount. brackets 75 / 150 mm
600 / 750 mm 700 / 850 mm 800 / 950 mm
2. Weights
Base unit
367 kg 368 kg 482 kg 491 kg 675 kg
w. mount. brackets 75 mm
388 kg 389 kg 506 kg 515 kg 704 kg
w. mount. brackets 150 mm 400 kg 402 kg 518 kg 527 kg 727 kg
Electrical starter + 16 kg + 16 kg + 18 kg + 18 kg Standard
Electr. dead man’s control + 17 kg + 17 kg + 19 kg + 19 kg + 2 kg
ACEecon + 17 kg + 17 kg + 18 kg + 18 kg – 2 kg
3. Drive
Engine
HATZ 1D50 S HATZ 1D81 S HATZ 1D90 S
Type
1-cylinder, four-stroke diesel
Power output
7,0 kW (9,5 hp) 10,1 kW (13,7 hp) 10,9 kW (14,8 hp)
Speed
3100 1/min 3000 1/min 3000 1/min 3000 1/min
Cooling
Air
Fuel capacitiy
5 l 7 l 10 l
Fuel consumption
1,7 l /h 2,5 l /h
max. sloping position
30°
2. Technical data
31
B1
B2
B3
L1
L2
L
H1
H
H2
