Ammann AV23-2 - Dashboard (Control Lamps)

5 Overview
BNNbOO
ID: 1138310 Issue date January 01, 2010
45

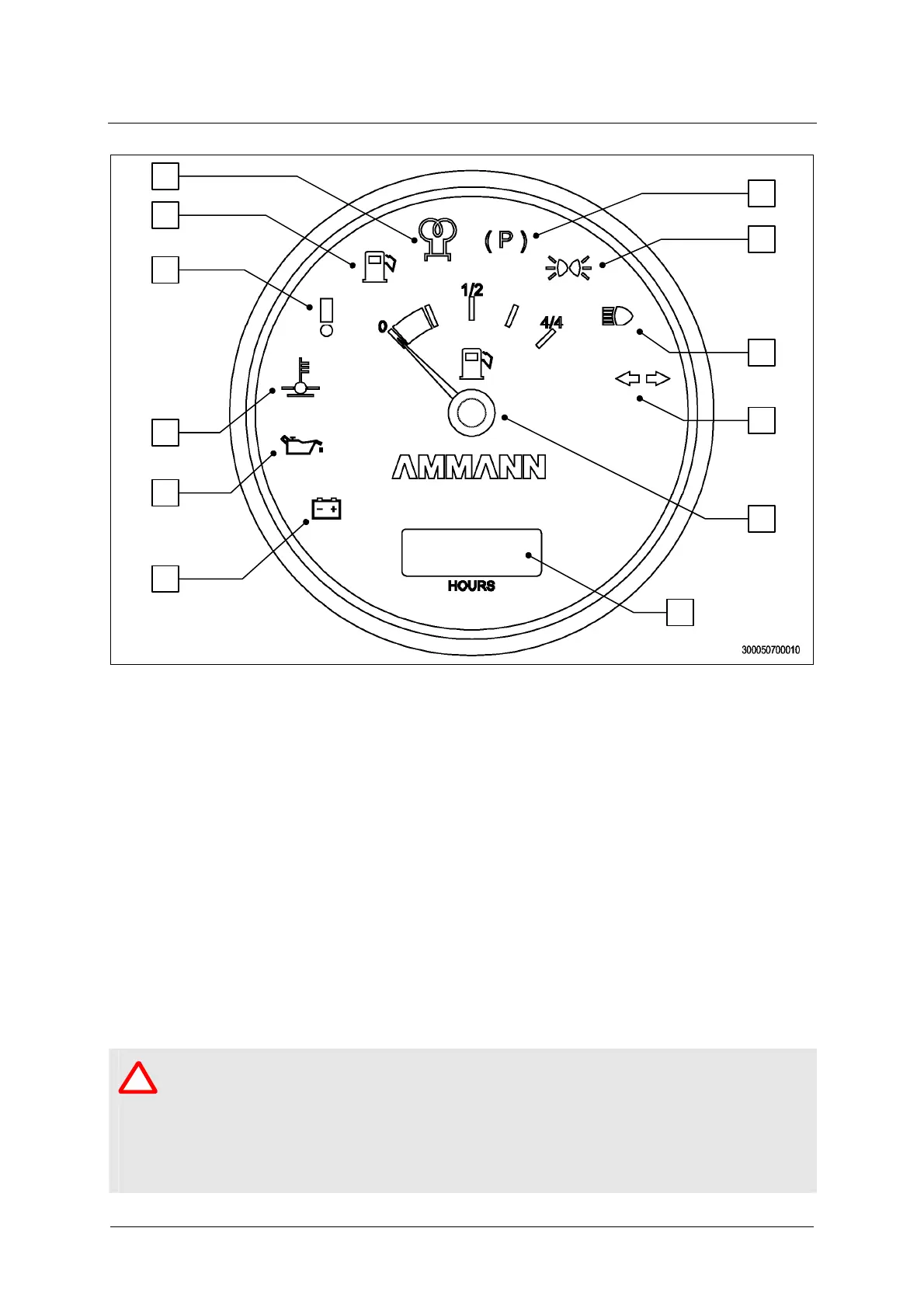

Dashboard (control lamps)
1 Control lamp for battery charge level (charge control)
2 Engine oil pressure control lamp
3 Engine coolant temperature control lamp
4 Control lamp for emergency stop circuit, operating lever zero position and
seat contact
5 Fuel reserve control lamp
6 Control lamp for pre-heating
7 Control lamp for brake release and supply pressure hydraulics
8 Control lamp for parking light
9 Control lamp for road driving light
10 Indicator control lamp
11 Fuel tank display
12 Operating hours counter
ATTENTION!
The warning lamps for engine oil pressure, charge indicator and brake
release/supply pressure must light up when the ignition is switched on. They
must go off as soon as the engine is started.
1
2
3
4
5
6
7
8
9
10
11
12
