Ammann AV23-2 - Dashboard (Switches)

5 Overview
BNNbOO
ID: 1138310 Issue date January 01, 2010
44

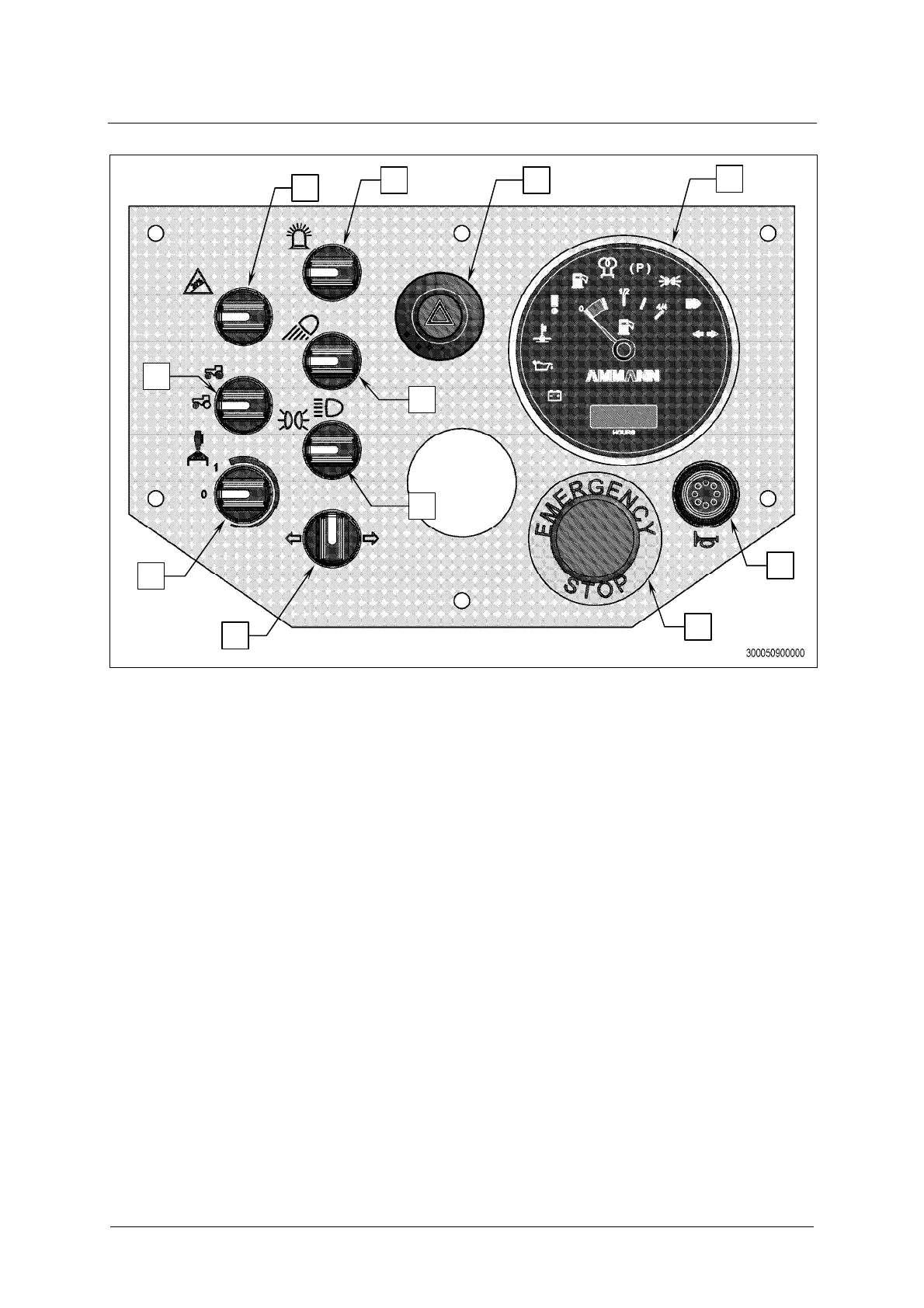

Dashboard (switches)
1 Operating switch for improved climbing (traction aid/flow divider)
(Optional for AV2-2 only)
2 Switch for revolving warning light (optional)
3 Operating switch for hazard flasher (only with light option)
4 Multifunction device with hour counter
5 Selector switch – vibration front or front and rear (optional)
6 Operating switch for work light (only with light option)
7 Operating switch for light (only with light option)
0 – Off
1 – Parking light
2 – Main beam light
8 Continuous sprinkling switch (standard) or sprinkling interval switch
(optional)
9 Indicator switch left/right (only with light option)
10 Emergency stop switch
11 Horn
