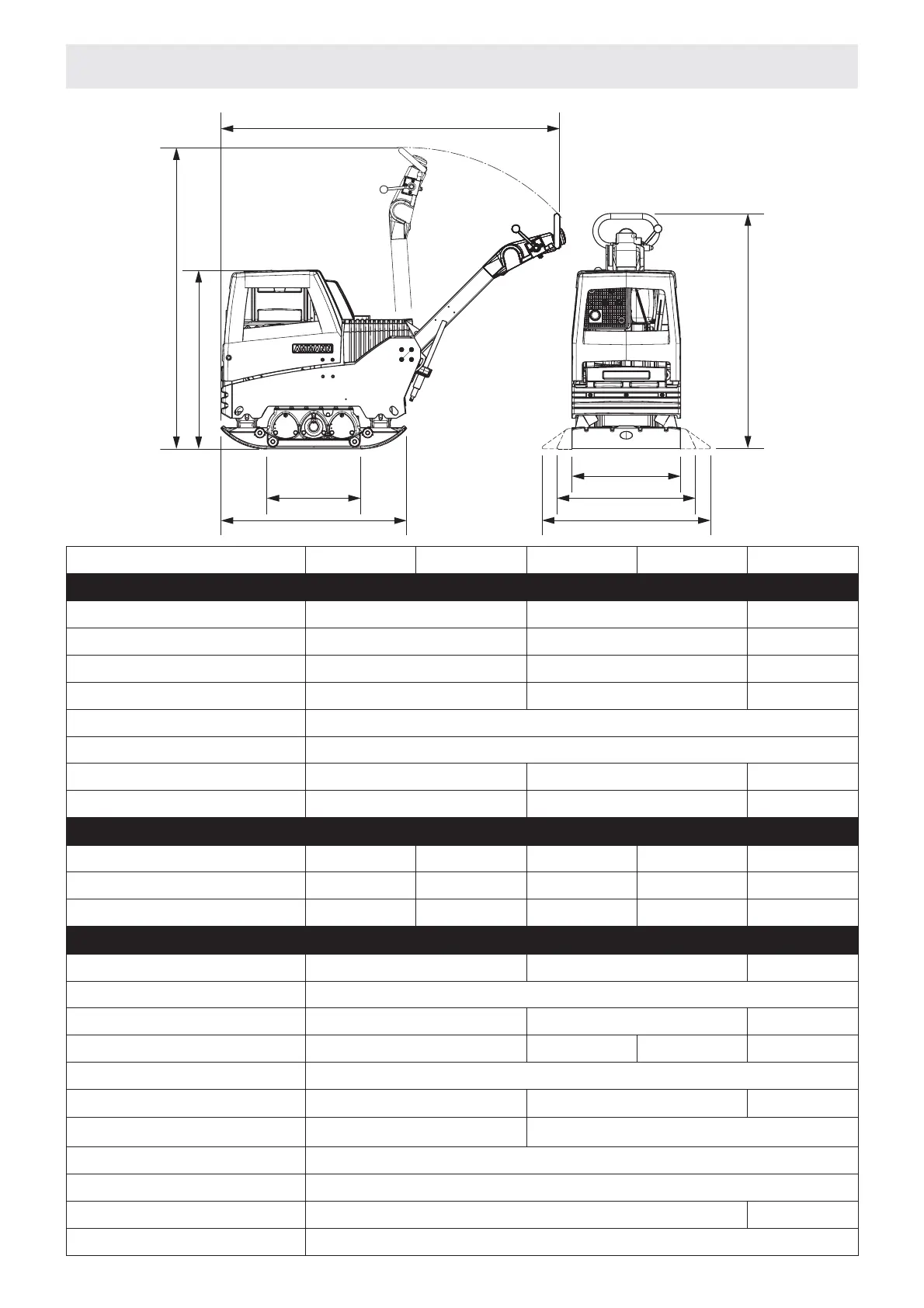

Ammann AVH 6030 - 2. Technical Data; Dimensions and Weights; Drive System Specifications

AVH 5020 AVH 5030 AVH 6020 AVH 6030 AVH 100-20
1. Dimensions
L
1600 mm 1840 mm 1965 mm
L1
900 mm 930 mm 1070 mm
L2
450 mm 470 mm 520 mm
H
775 mm 870 mm 900 mm
H1
ca. 1000 mm
H2
ca. 1500 mm
Working width, base unit
450 mm 550 mm 650 mm
w. mount. brackets 75 / 150 mm
600 / 750 mm 700 / 850 mm 800 / 950 mm
2. Weights (
1)
with electrical starter)
Base unit
365 / 375
1)
kg 391 / 401
1)
kg 438 / 451
1)
kg 480 / 495
1)
kg 678 kg
w. mount. brackets 75 mm
383 / 393
1)
kg 410 / 420
1)
kg 488 / 501
1)
kg 500 / 515
1)
kg 705 kg
w. mount. brackets 150 mm 397 / 407
1)
kg 423 / 433
1)
kg 498 / 511
1)
kg 510 / 525
1)
kg 730 kg
3. Drive
Engine
HATZ 1D50 S HATZ 1D81 S HATZ 1D90 S
Type
1-cylinder, four-stroke diesel
Power output
7,0 kW (9,5 hp) 10,1 kW (13,7 hp) 10,9 kW (14,8 hp)
Speed
2700 1/min 3000 1/min 2800 1/min 3000 1/min
Cooling
Air
Fuel capacitiy
5 l 7 l 10 l
Fuel consumption
1,7 l /h 2,5 l /h
max. sloping position
30°
max. grade ability 36 %
Drive
via centrifugal clutch and hydr. power transmission hydraulic
Control (forward/reverse)
hydraulic
2. Technical data
31
B1
B2
B3
L1
L2
L
H1
H
H2
