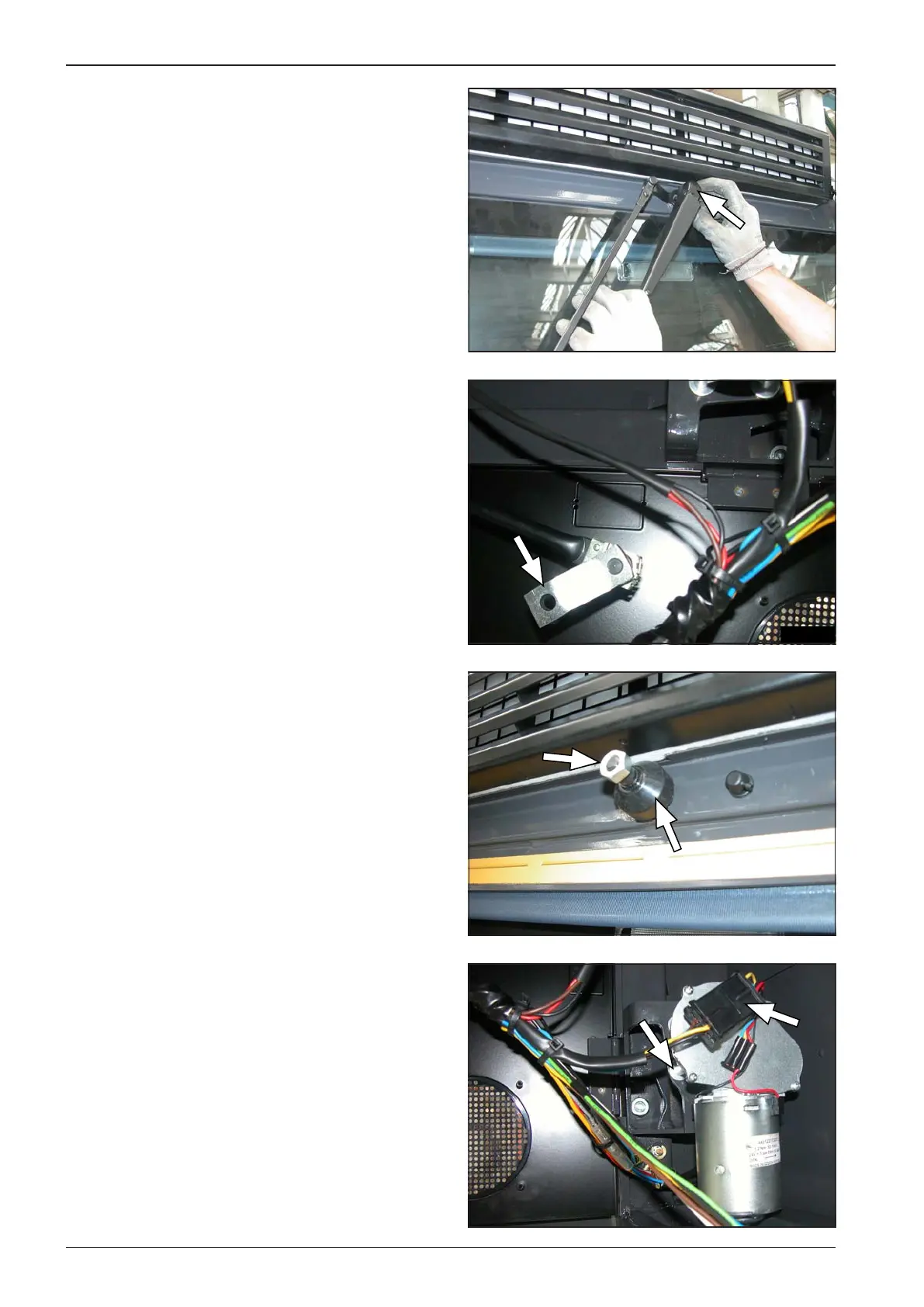

10.
T
he driver‘
s station assembly
Remove wiper from the driv
e.
Remove drive fr
om wiper motor
.
Remove nuts, push back driv
e into the cabin and set it aside.
Disconnect
front wiper
wiring, remove wiper
motor out
of
con-
sole and set it aside.
