12. Electrical installation
HOW TO REPLACE AN INSTRUMENT

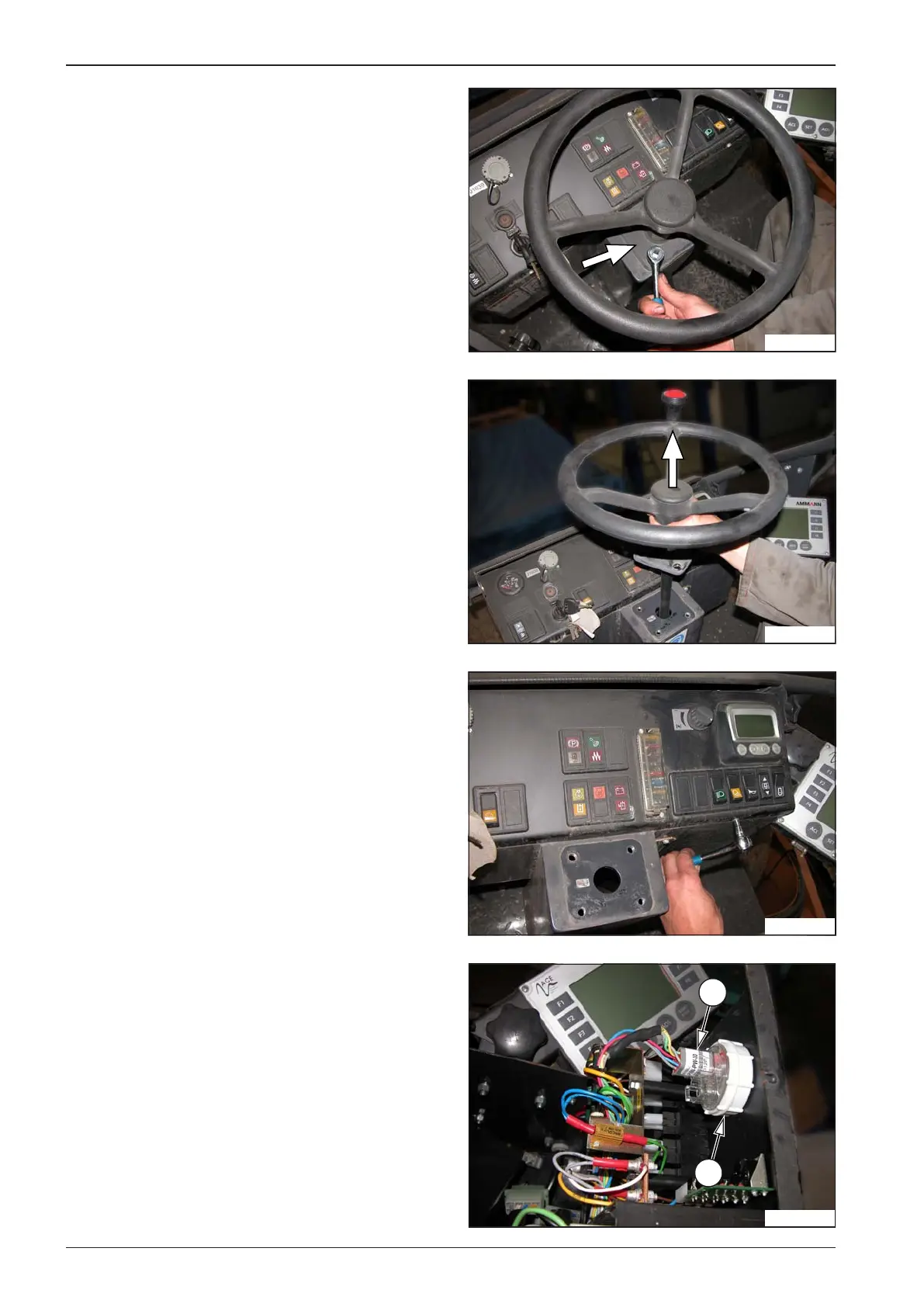

Remove the steering-column shaft along with the steering
wheel.
Pull out the shaft. Shaft end has dust cover put on.
Note:
Unless you pull out the shaft complete with the dust cover (re-
mains tted on servosteering shaft), take it out.
Remove and fold up the instrument board.
Before you remove it, disconnect the battery via master switch.
Unplug connector from socket A, remove nut 1.
