Ammann Cummins ASC110 - Hydraulic System Pressure Testing

197ASC 110
ASC382A
5
ASC383
2
4
1
3
ASC385
1
2
ASC384
6
WORKSHOP MANUAL

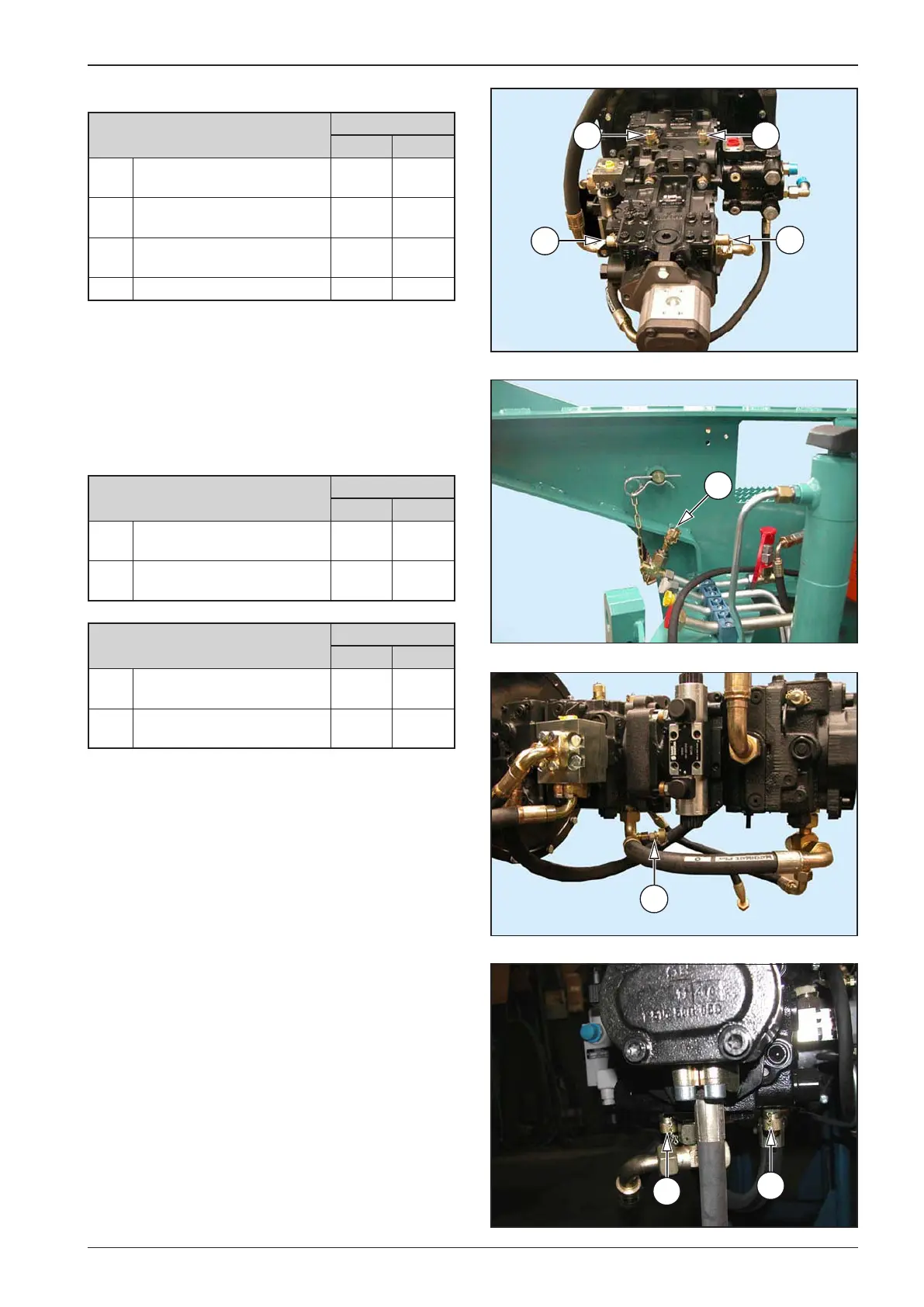

Test spots - Standard
Maximal pressure
MPa (PSI)
1
Pressure in the circuit
of backward travel
42* (6090)
2
Pressure in the circuit
of forward travel
42* (6090)
5
Pressure in the circuit
of steering
19** (2755)
6 Feeding pressure 2,2*** (320)
* The value will increase by supplementary pressure, i.e., by
up to 3 MPa (435 PSI)
** Total pressure in the return line of steering (supplementary
pressure + ow losses)
*** The value at idle speed [it is higher at maximum speeds;
max. 3.0 MPa (435 PSI).
Vibration hydraulic pump Rexroth
Maximal pressure
MPa (PSI)
3
Pressure in the circuit
of vibration I
34 (4930)
4
Pressure in the circuit
of vibration II
34 (4930)
Vibration hydraulic pump Sauer
Maximal pressure
MPa (PSI)
3
Pressure in the circuit
of vibration I
35 (5075)
4
Pressure in the circuit
of vibration II
35 (5075)
