3. Specification manual

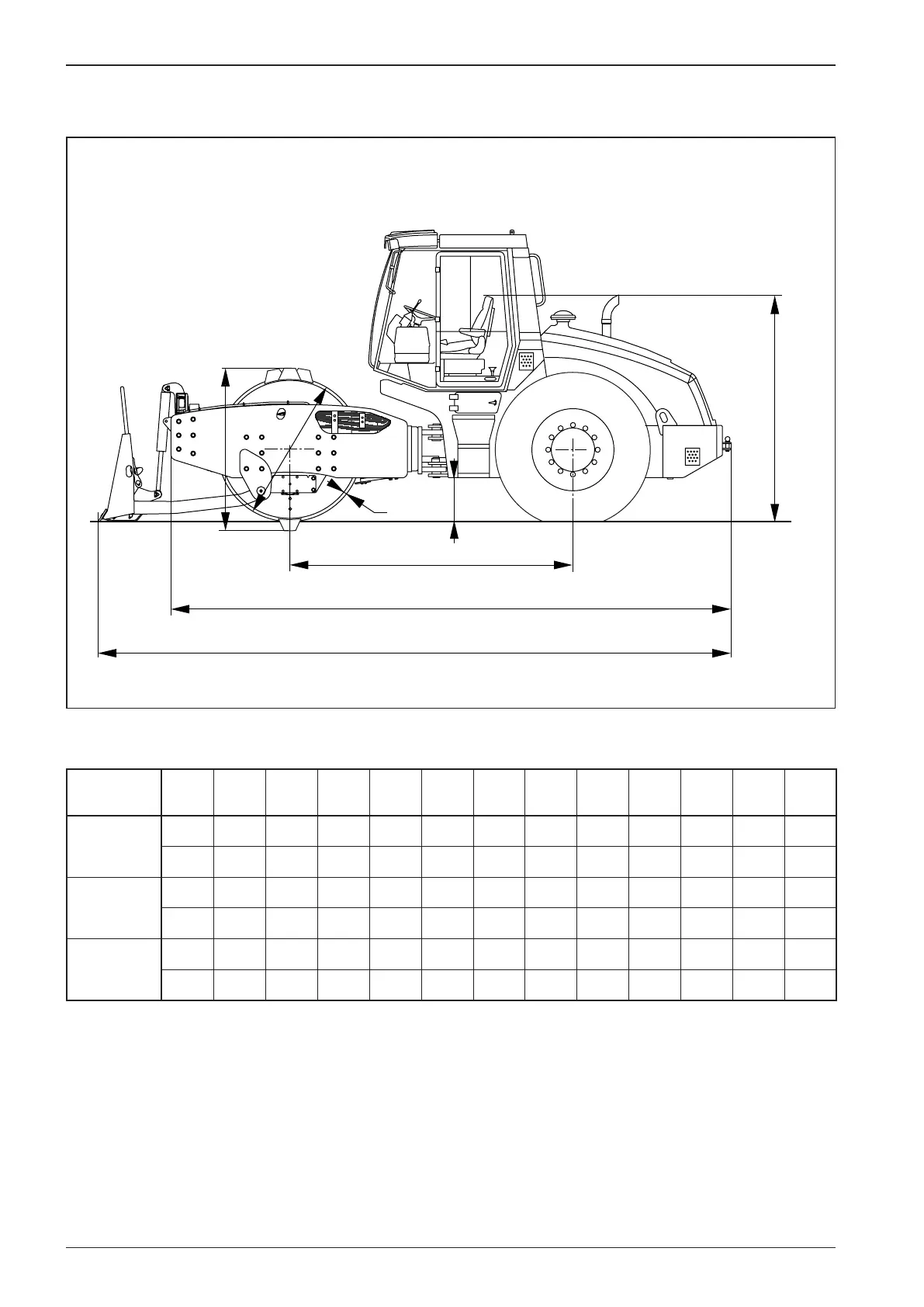

Dimension Chart
mm
(in)
A D D1 G G1 H H1 L L1 T W W1 W2
ASC 110 D
2878 1500 - 440 420 3070 2400 5780 - 25 2130 2258 -
(113,3) (59,1) (-) (17,3) (16,5) (120,9) (94,5) (227,6) (-) (1,0) (83,9) (88,9) (-)
ASC 110 PD
2878 1440 1640 440 420 3070 2400 5780 - 20 2130 2258 -
(113,3) (56,7) (64,6) (17,3) (16,5) (120,9) (94,5) (227,6) (-) (0,8) (83,9) (88,9) (-)
ASC 110 PDB
2878 1440 1640 440 420 3070 2400 5780 6557 20 2130 2258 2441
(113,3) (56,7) (64,6) (17,3) (16,5) (120,9) (94,5) (227,6) 258,1 (0,8) (83,9) (88,9) (96,1)
