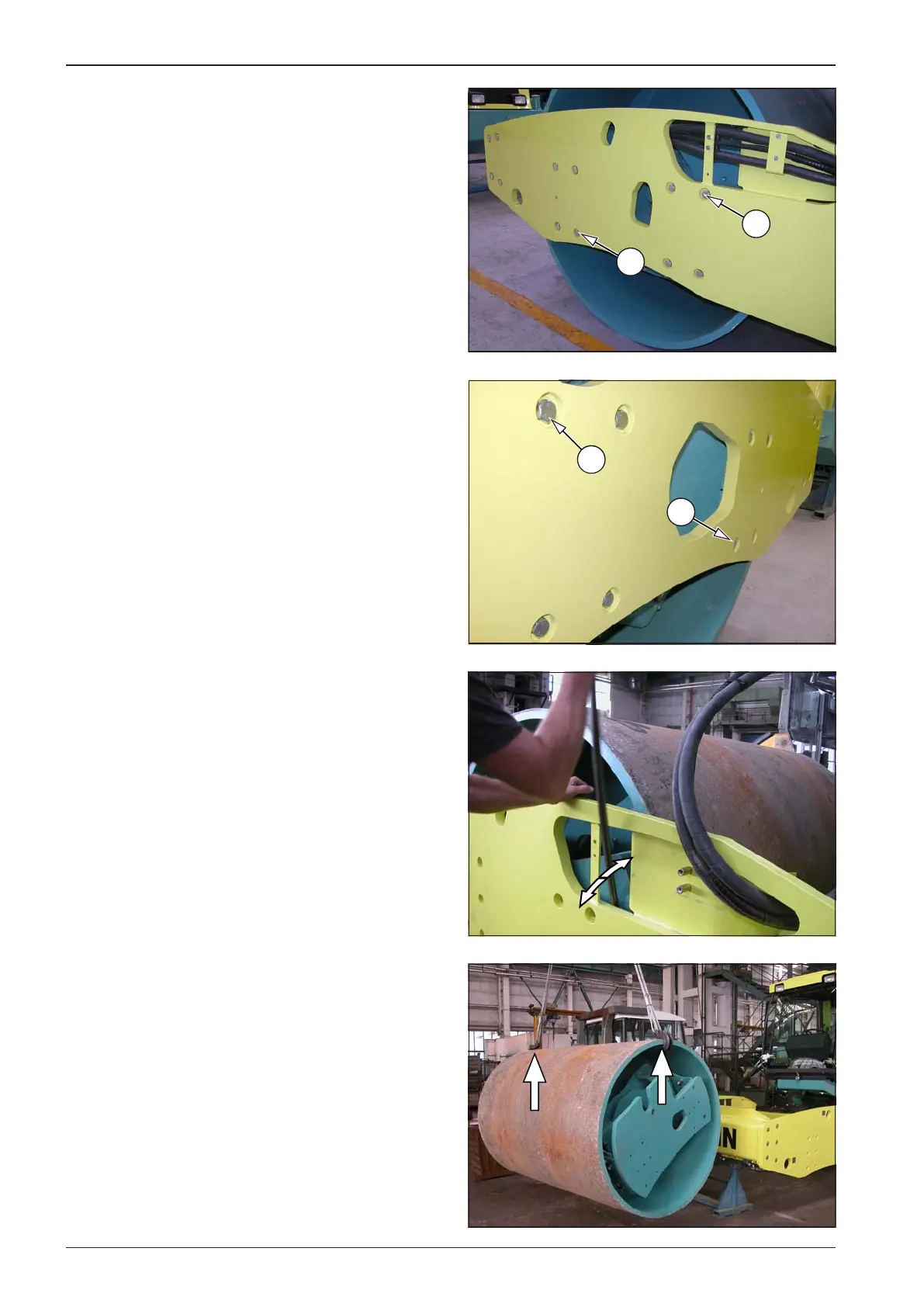

Dismount the screws (10-33) from the weights (10-7) on the left
side of the front frame.
Dismount the screws (30-19) of the bracket on the right side of
the front frame.
Slacken the screws (10-34) and push the weights (10-7) into the
drum so that there is a gap between the weight and the ma-
chine frame. Tighten the screws (10-34).
Hang the drum on the crane using lifting lugs and push it out
from the frame.
