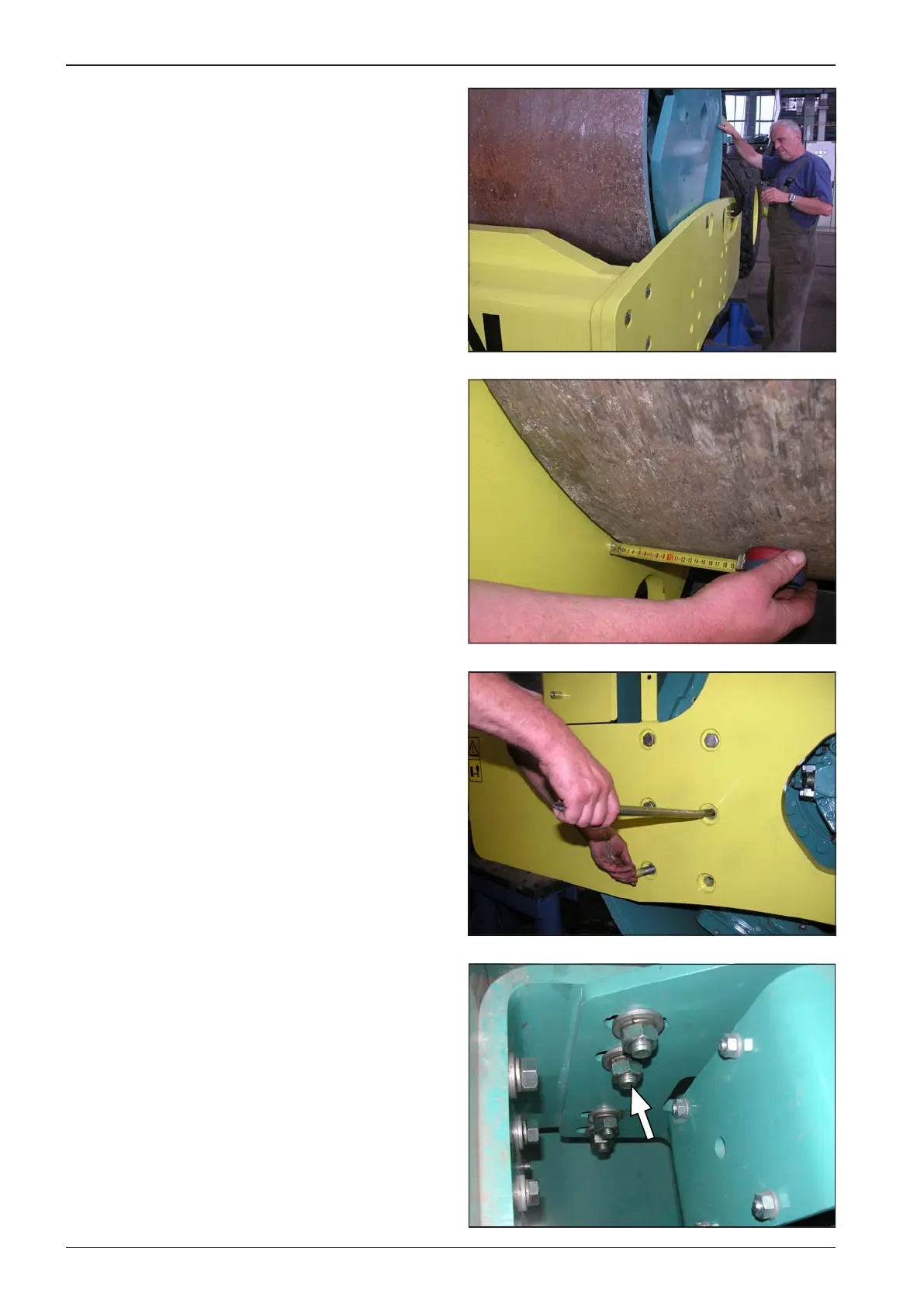

Mounting of the drum into the frame
Place the frame on suitable supports on both sides. Hang the
drum and lift it up using the crane and mount it into the frame
so that the drum does not bumps into the frame.
Make sure that there is a gap of 24 mm ±2 mm between the
frame and the drum on both sides.
Screw the bracket (30-1) on the right side to the frame. If it is
necessary, use shims.
Slacken the screws (10-34) on the left side of the drum.
