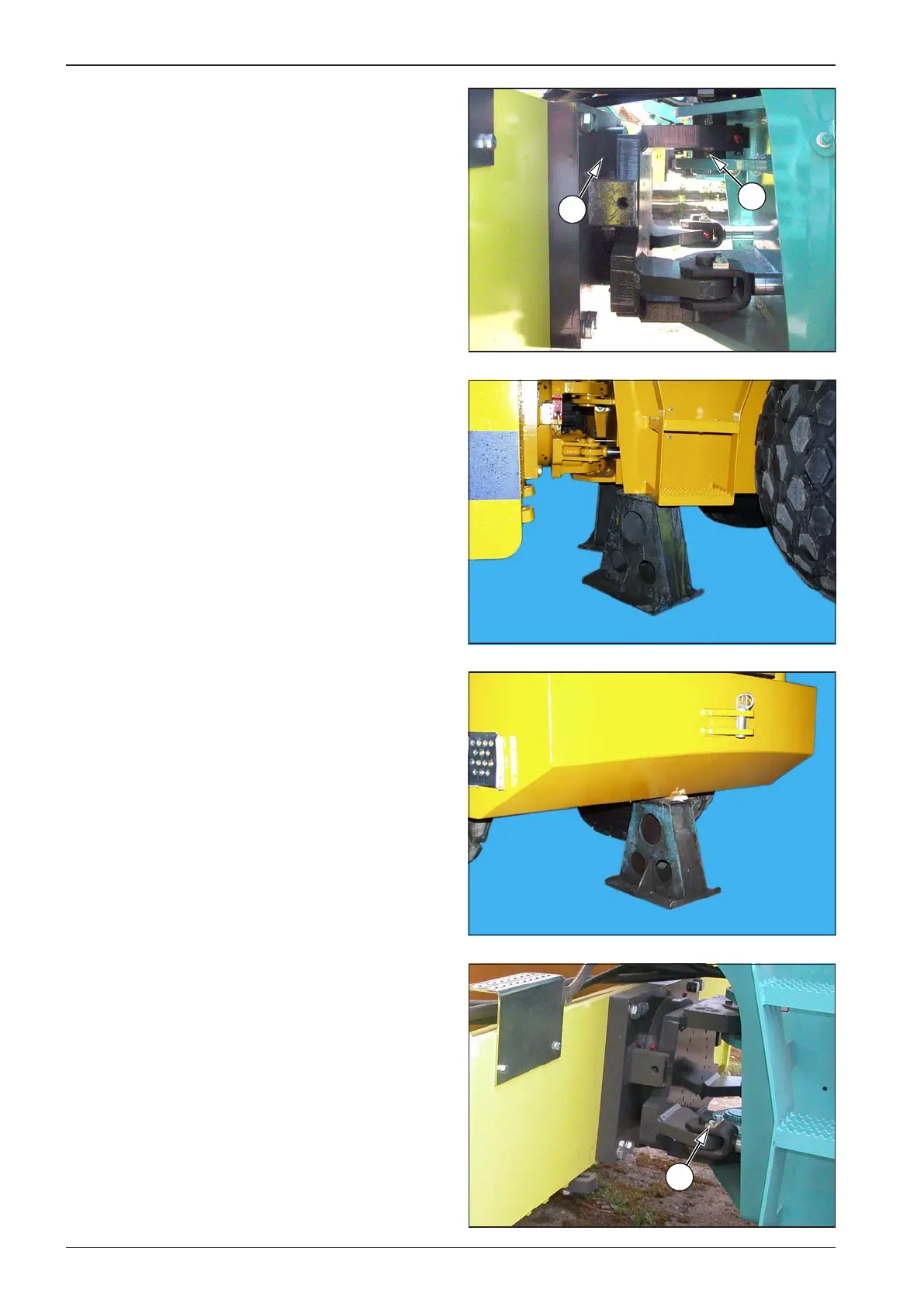

Description
The joint connecting the drum frame with the rear frame is
equipped with a large-size bearing 1 with cross rollers allowing
for the frame to swing in the vertical plane, and two vertical pins
2 allowing for steering angle in the horizontal plane.
Place the machine on rm ground, support the frame in front
and in rear by the proper brace.
Remove packing pieces (372-3).
