WORKSHOP MANUAL

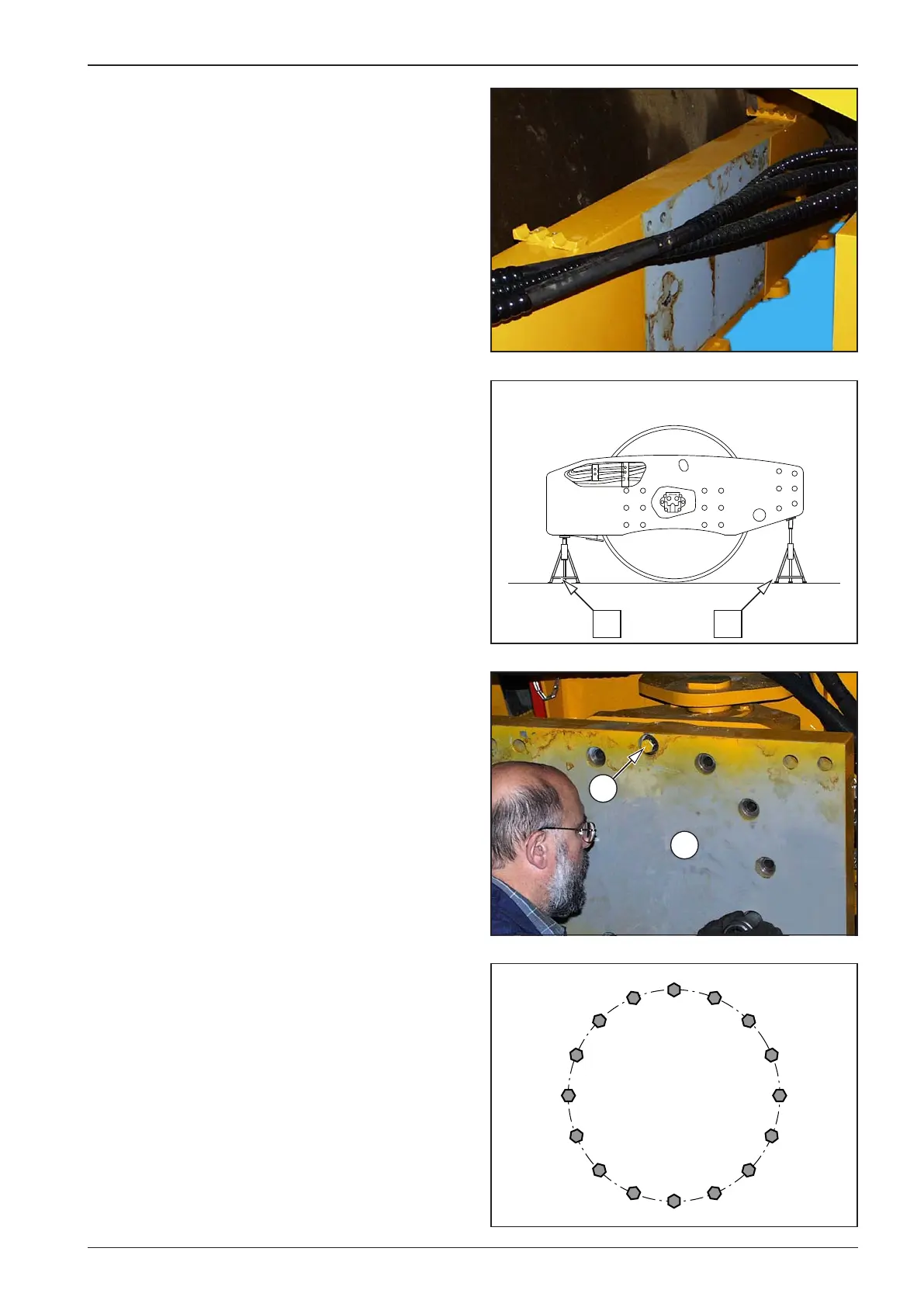

Set aside the drum with front frame on the right side outside
the machine.
Place xture no. 5 underneath.
Place hoist under frame plate (63-2). Remove bolts (63-37).
Tight the bolts (63-37) with torque 184 Nm, safe the screws by
Loctite 243. See the Spare parts for using new bolts.
