Hole set A is to be used on 6.5’ and 8’ beds
Hole set B is to be used on 5.5’ beds.
2
3

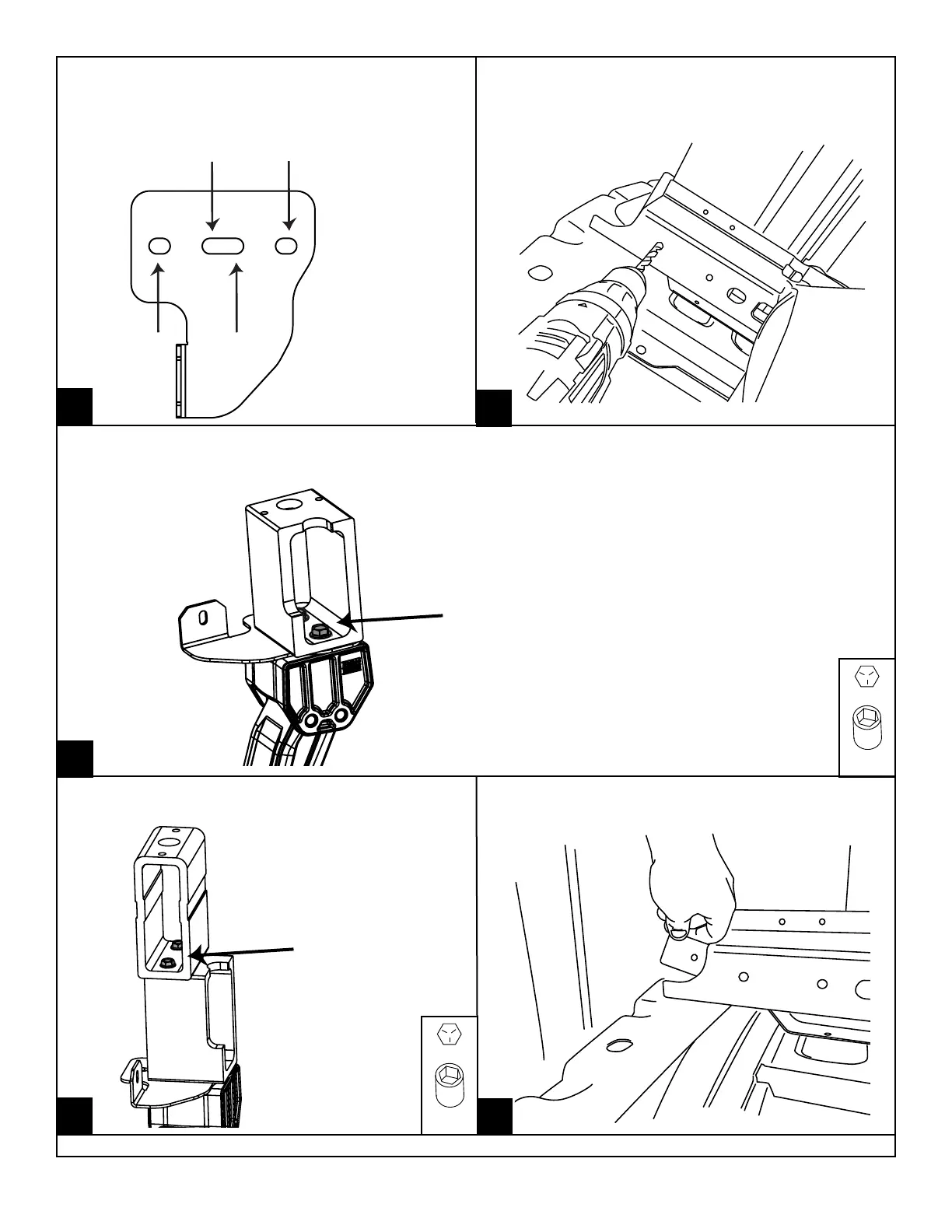

Use supplied drill template (See page 4) and
mark holes in front bed channel mount. Pre drill
holes using 1/4” drill bit. Next drill hole to 3/8”.
Using a 15mm Socket assemble Lateral mount onto linkage. Steel bracket is to be assembled
between linkage and lateral mount. Do not tighten bolts yet. See Step 2 for bracket orientation
based on bed length.
NOTE: DRIVER SIDE SHOWN WITH 6.5’ & 8’ BED.
MIRROR FOR PASSENGER SIDE.
Using a 13mm socket assemble frame mount
onto Lateral mount. Tor que bolts to 16 ft-lbs.
Slide threaded plate into bed channel and line up
threaded locations to pre drilled holes.
To Next Page
