rev 05.14.19
5/6
www.amp-research.com
AMP RESEARCH BEDXTENDER HD™
BED X-TENDER ASSEMBLY – CONTINUED

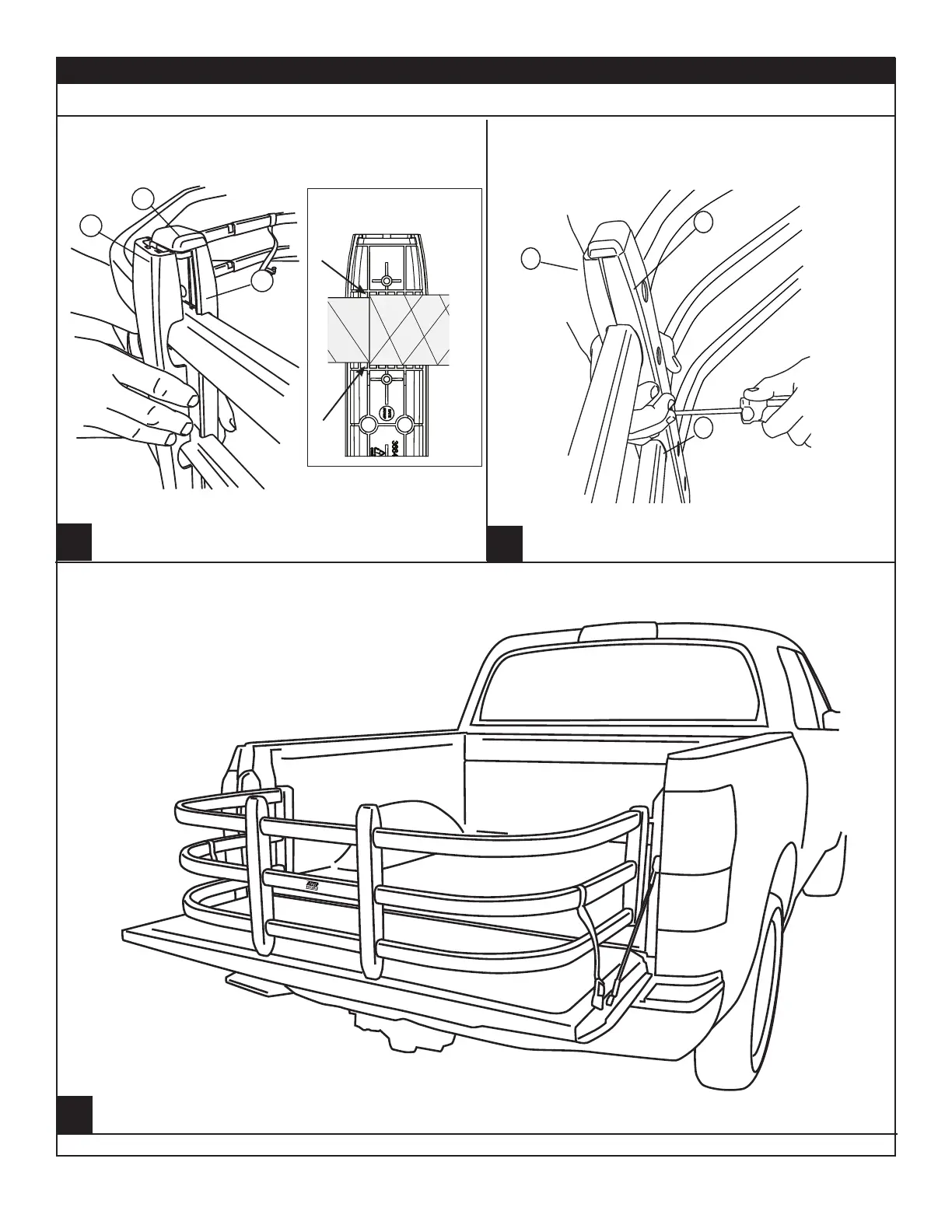

Adjust Strap Buckles to lock into the tailgate when BEDXTENDER is deployed.
Your assembly is now complete.
7
9
8
Tighten PT-Screws using a T-25 torx driver, starting
in the middle of each upright, then the outer screws
and lastly the remaining two to evenly tighten.
3
8
7
NOTE: Do not over tighten as this may strip out.
Fastener will reach a noticable stopping point.
8
Attach plastic upright around the tube juncture,
placing rubber bumpers into the two ends of the
upright.
NOTE: The inside of the upright is stepped
to t correctly around the small and large
diameter tubes.
4
8
7
Upright is not positioned in
center of tube joint.
