AMP RESEARCH BEDXTENDER HD™
2
3

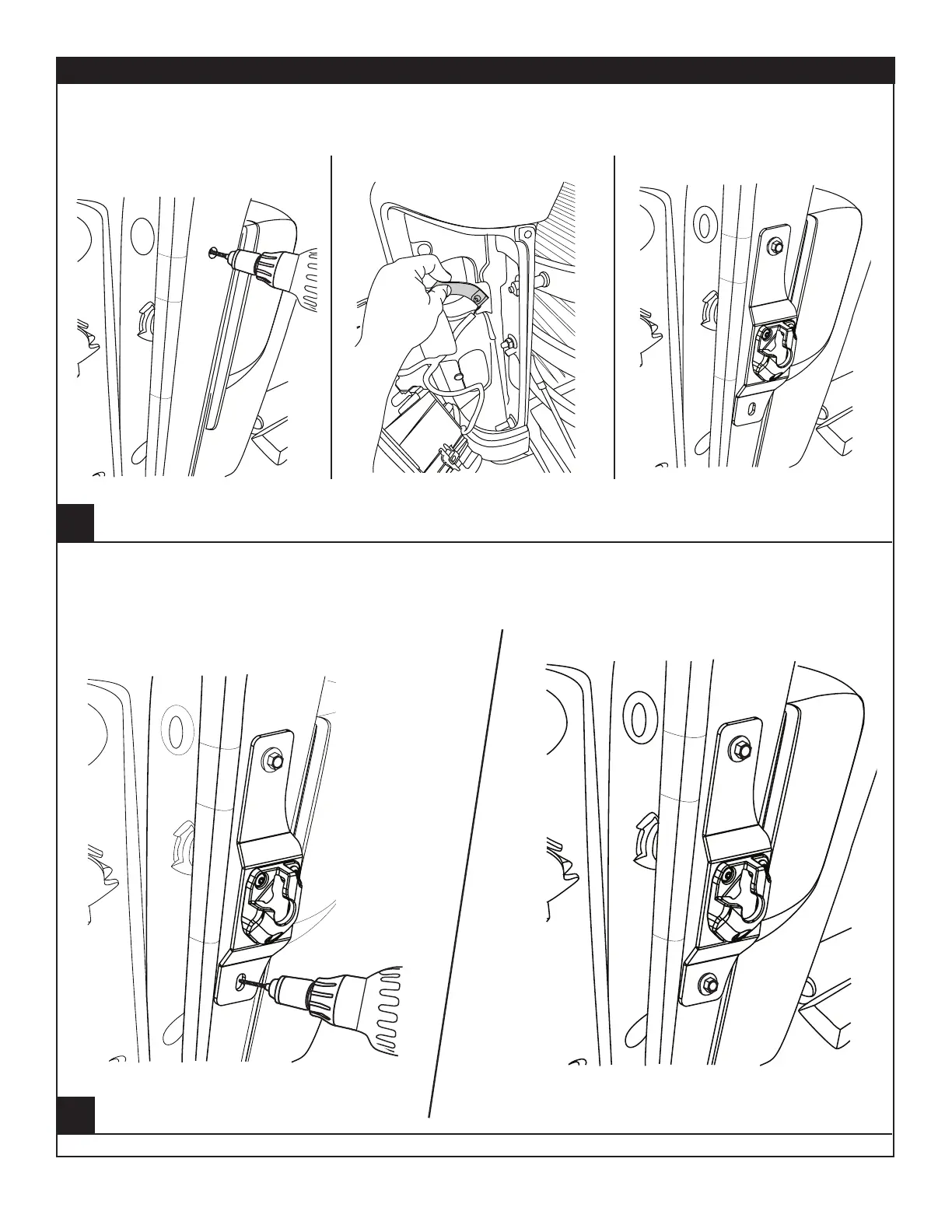

Enlarge hole in D-Pillar with 21/64” drill bit. Fasten the Quick Mount Bracket to the D-Pillar with one M8 Hex
Bolt and Bracket Nut Plate Assembly.
Allow the bracket to hang vertically. Using bracket as a template, mark (Center Punch) the upper hole of
the lower slot (indicated). Pre drill hole with 1/8” drill bit, losen upper mounting hole and rotate bracket away
from hole and open hole using a 21/64” drill bit. Remove burs, apply primer to edge of holes, and allow
primer to dry. Install brackets.
To Next Page
