SVT-3 PRO Bass Guitar Amplifier SVT-3 PRO Bass Guitar Amplifier
9

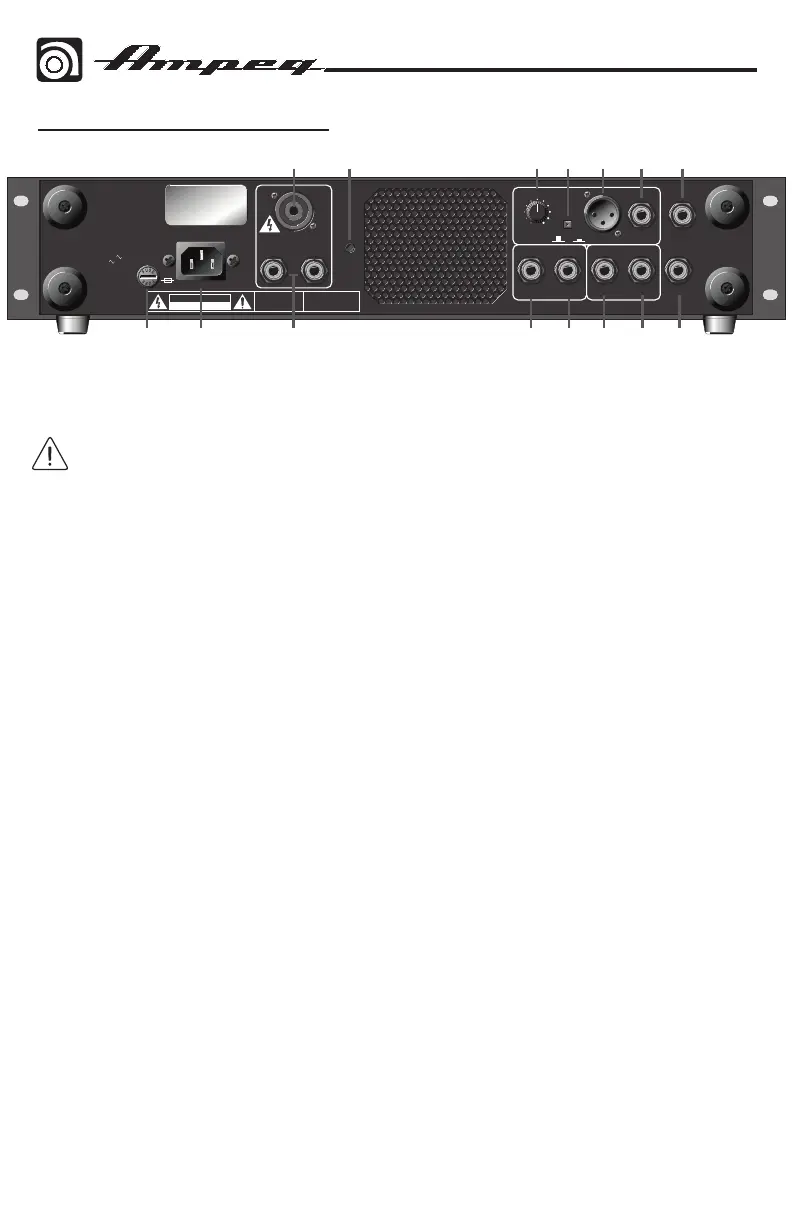

The Rear Panel continued
CAUTION:
TO
REDUCE THE RISK
OF FIRE, REPLACE
FUSE WITH SAME
TYPE AND RATING.
SPEAKER OUTPUTS
AC LINE IN
ATTENTION:
UTILISER UN FUS-
IBLE DE RECHANGE
DE MEME TYPE.
110/115V: 250V T10A SLO BLO
230V: 250V T5A SLO BLO
MODEL:
SERIAL:
LINE: V ~ Hz
WATTS: MAX
SVT-3PRO
120 XX
1000
CAUTION
RISK OF ELECTRIC
SHOCK - DO NOT OPEN
RISQUE DE CHOC
ELECTRIQUE
NE PAS OUVRIR
TO REDUCE THE RISK
OF FIRE OR ELECTRIC
SHOCK, DO N OT EX-
POSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS:
275 WATTS @ 8 OHMS
450 WATTS @ 4 OHMS
4 OHM MIN. LOAD
EFFECTS LOOP
TUO RENUTLEVEL
RETURN SENDPOWER AMP
IN
PREAMP
OUT
FOOTSWITCH
PRE
PULL
GROUND
LIFT
POST
3222 2726252421
BALANCED
TRANSFORMER BAL. LINE OUTPUT
BALANCED/
UNBALANCED
29. IEC POWER INPUT CONNECTOR: This
is where you connect the supplied AC
power cord.
DO NOT DEFEAT THE GROUND PRONG
OF THE AC PLUG!
30. SPEAKER OUTPUTS: These mono 1/4"
TS output jacks supply speaker-level
power to the speaker cabinet. The rated
power output is 275 watts rms into 8
ohms or 450 watts rms into 4 ohms.
The two identical outputs are wired in
parallel, and you can use either one, or
use both. Make sure the total speaker
impedance load is 4 ohms or greater.
For example, you could connect:
Two 16 ohm speakers (an 8 ohm load),
Two 8 ohm speakers (a 4 ohm load)
or one 4 ohm speaker.
Use speaker cables with 1/4" TS ends
to make the connections. Do not use
instrument cables as they may overheat.
We recommend using the Speakon
jack [22] whenever playing at full
output levels.
31. POWER AMP IN: This jack connects
directly to the internal power amp for
use with an external preamp. When
using an external source, connect the
OUTPUT of the source to this jack using
a shielded instrument cable to feed the
signal into the power amp section. The
internal signal is disconnected when a
plug is inserted into this jack.
32. PREAMP OUT: This jack is a direct
post master preamp output for use with
an external power amp. Connect the
external amp’s input to this jack using a
shielded instrument cable.
33. EFFECTS LOOP RETURN: When using
an external signal processor, connect
the OUTPUT of the effect to this jack
using a shielded instrument cable to
feed the processed signal into the unit.
34. EFFECTS LOOP SEND: When using
an external signal processor, connect
the INPUT of the effect to this jack
using a shielded instrument cable to
send the post-EQ signal to the effect
for processing.
35. FOOTSWITCH: Connect a dual
footswitch to this jack for remote Mute
and EQ On/Off control. On the stereo
1/4" plug, the tip controls Mute and
the ring controls EQ On/Off. The EQ
footswitch overrides the front panel
switch and the Mute function is
available from either location.
NOTE:
A footswitch may be purchased at
your local Ampeg Dealer or ordered directly
from LOUD Technologies Inc. Be sure to ask
for model #AFP2.
OTHER: Make sure that the ventilation
openings are not obscured in any way. This
will allow the flow of cooling air to the power
amplifier’s heatsinks.
