Ampeg SVT-4 PRO User Manual

SVT-4 PRO Bass Guitar Amplifier SVT-4 PRO Bass Guitar Amplifier
7

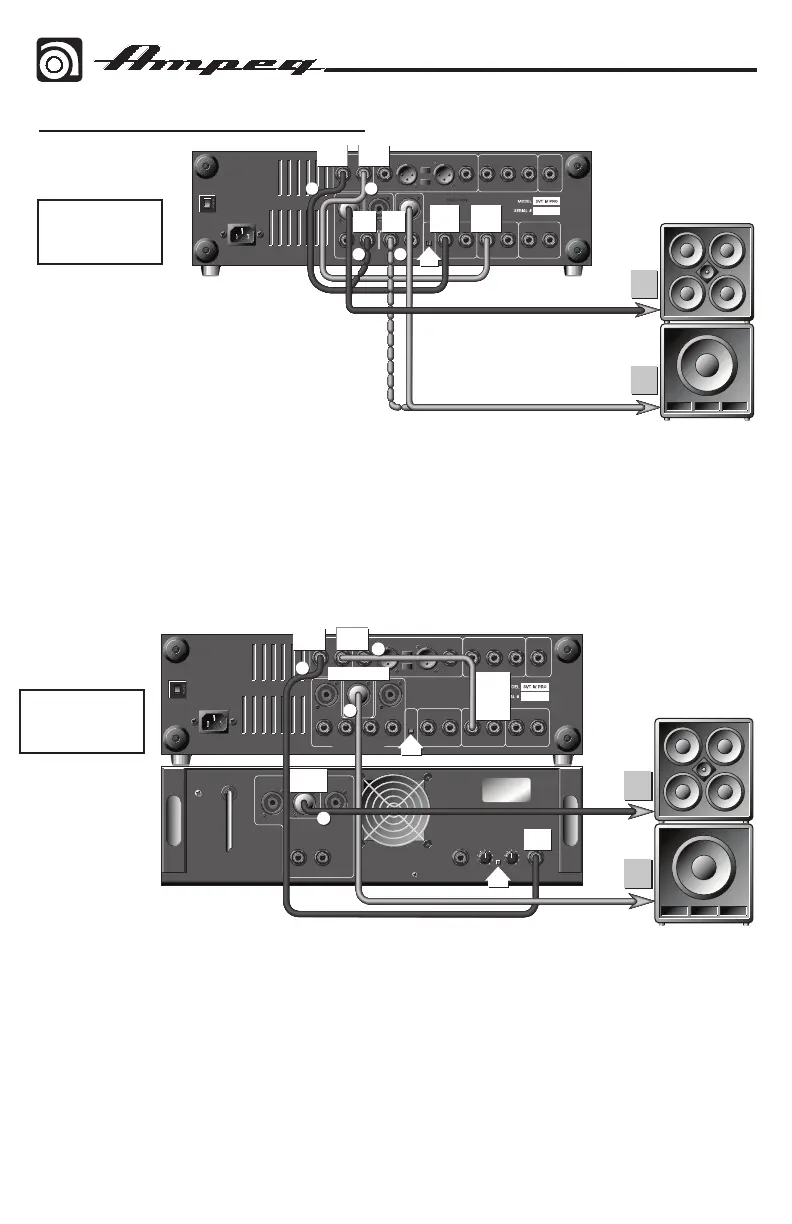

Hook-up Diagrams continued
Bi-amp:
Highs / Lows
Bi-amp with a
Second Amp
In this example, the SVT-4 PRO’s two internal power amplifiers will power both a high
frequency cabinet and a low frequency cabinet. The crossover point for the cabinets is
determined by the Crossover Frequency control [21]. Disengage the Stereo/Mono Bridge
switch [Stereo position]. Connect a shielded cable from the SVT-4 PRO’s Bi-amp High Output
jack to its Power Amp B Power Amp In jack. Connect a shielded cable from the SVT-4 PRO’s
Bi-amp Low Output jack to its Power Amp A Power Amp In jack. Next, connect a speaker
cable from the SVT-4 PRO’s Power Amp A Speaker Output jack to the input jack of the low
frequency cabinet(s). Finally, connect a speaker cable from the SVT-4 PRO’s Power Amp B
Speaker Output jack to the input jack of the high frequency cabinet(s).
In this example, the SVT-4 PRO’s two internal power amplifiers are bridged together and
will power the low frequency cabinet(s). A second amplifier will be used to power the high
frequency cabinet(s). The crossover point for the cabinets is determined by the Crossover
Frequency control [21]. Engage the Stereo/Mono Bridge switch [Mono Bridge position].
Connect a shielded cable from the SVT-4 PRO’s Bi-amp High Output jack to the input jack of
the High Frequency power amplifier. Connect a shielded cable from the SVT-4 PRO’s Bi-amp
Low Output jack to its Power Amp A Mono Bridge Input jack. Next, connect the high
frequency power amp’s Speaker Output jack to the input jack(s) of the high frequency
cabinet(s). [Observe the amplifier’s minimum load rating]. Finally, connect a heavy duty
speaker cable terminated with a Speakon connector [pin 1+ = “+”, pin 1– = “–”] from the
SVT-4 PRO’s Mono Bridge Output jack to the input jack of the low frequency speaker cabinet.
Full
Range
Cabinet(s)
Full
Range
Cabinet(s)
SVT-4 PRO
SVT-4 PRO
BIAMP
HI OUT
POWER
AMP A
P.A. IN
POWER
AMP B
P.A. IN
TO
INPUT
JACK
TO
INPUT
JACK
BIAMP
LO OUT
OUT
(STEREO)
21
34
PWR
AMP B
PWR
AMP A
MODEL:
SERIAL:
LINE: V ~ Hz
WATTS: MAX
SVP-1500
SVP15OOU12B
120 60
1500
BIAMP
HI OUT
POWER
AMP A
P.A. IN
(MONO
BRIDGE)
CH A
INPUT
BIAMP
LO OUT
IN
(MONO)
IN
(MONO)
MONO BRIDGE
1
2
4
TO
INPUT
JACK
TO
INPUT
JACK
MONO
BRIDGE
3

Ampeg SVT-4 PRO Specifications

Output Power

output power rating mono-bridged at 4 ohms	1600 Watts
output power rating mono-bridged at 8 ohms	1200 Watts
output power rating 2 x at 2 ohms	900 Watts
output power rating 2 x at 4 ohms	625 Watts
output power rating 2 x at 8 ohms	350 Watts

Tone Control Range

bass control range	±12dB @ 50Hz
midrange control range	±15dB @ selected frequency
treble control range	+14dB / -19dB @ 5kHz

Graphic EQ

graphic eq level	±10dB
graphic eq range 33Hz	±15dB
graphic eq range 80Hz	±8dB
graphic eq range 150Hz	±8dB
graphic eq range 300Hz	±8dB
graphic eq range 600Hz	±8dB
graphic eq range 900Hz	±8dB
graphic eq range 2kHz	±8dB
graphic eq range 5kHz	±9dB
graphic eq range 8kHz	±10dB

Switches

bright switch	+6dB @2kHz
ultra high switch	+6dB @ 5kHz
ultra low switch	+2.5dB @ 50Hz -12dB @ 560Hz +1.5dB @ 5kHz

General Specifications

signal to noise ratio	75dB typical
compression ratio	10:1
tube complement	12AX7 (3)

Power Requirements

domestic power requirements	120VAC, 60Hz, 1.4kVA
export power requirements 100/115VAC	50/60Hz, 1.4kVA
export power requirements 230VAC	50/60Hz, 1.4kVA

Size and Weight

width	19/17.4”
height with feet	5.6”
depth	15.5”
weight	39.5 lbs
