Ampler Curt - Assembly

3/16
V1.1, 24.04.19
• 4 mm hex key
• 5 mm hex key
• 6 mm hex key
• Pedal washers
• Pedals
You will need
Adjust the handlebar
Assembly

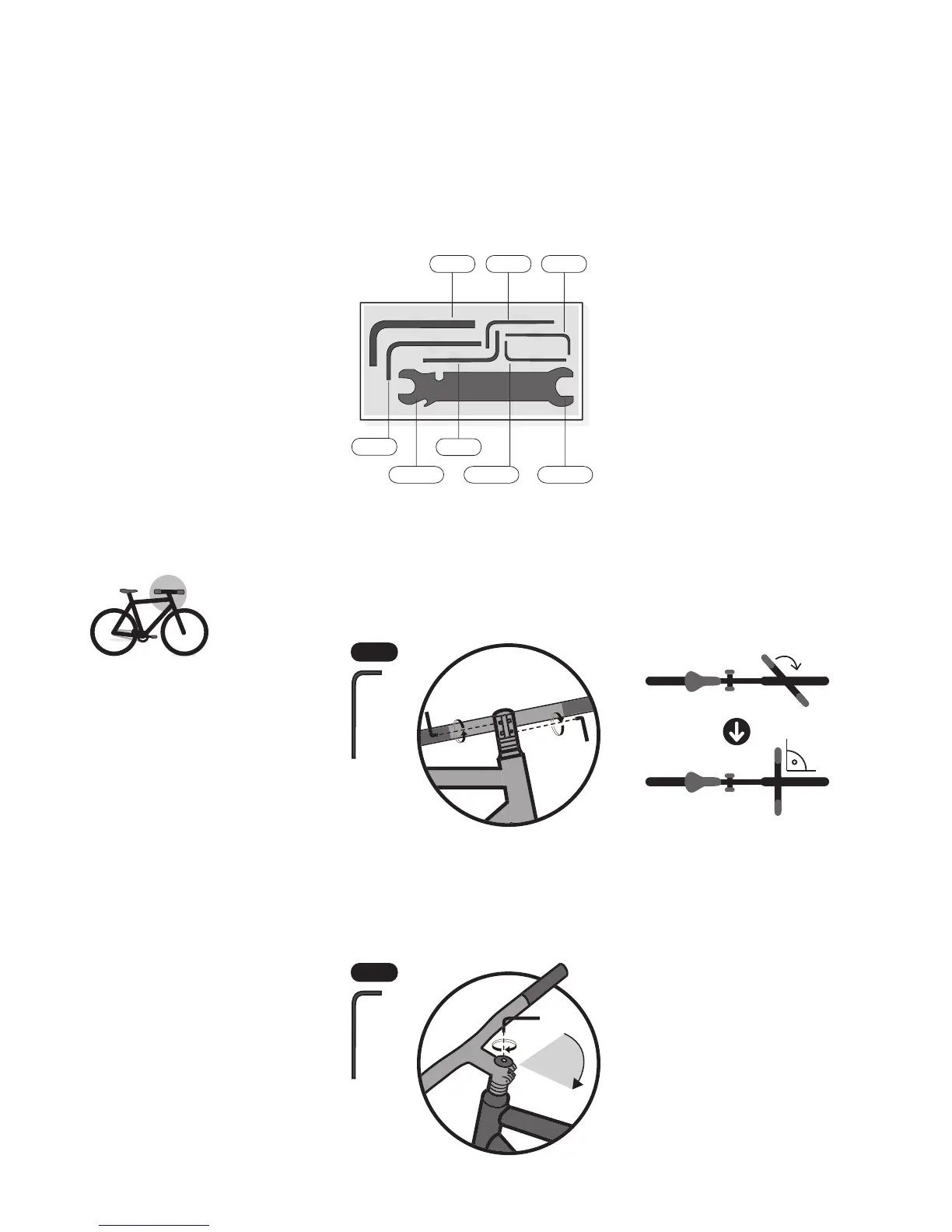

1. Take the 4 mm hex key and loosen the side bolts of
the stem. Turn the handlebar to the riding position.
Make sure the handlebar is aligned with the front
wheel.
2. Take the 5 mm hex key and lightly tighten the top
cap bolt on the handlebar stem.
This will make sure the headset will not have any
play in it.
