Montage

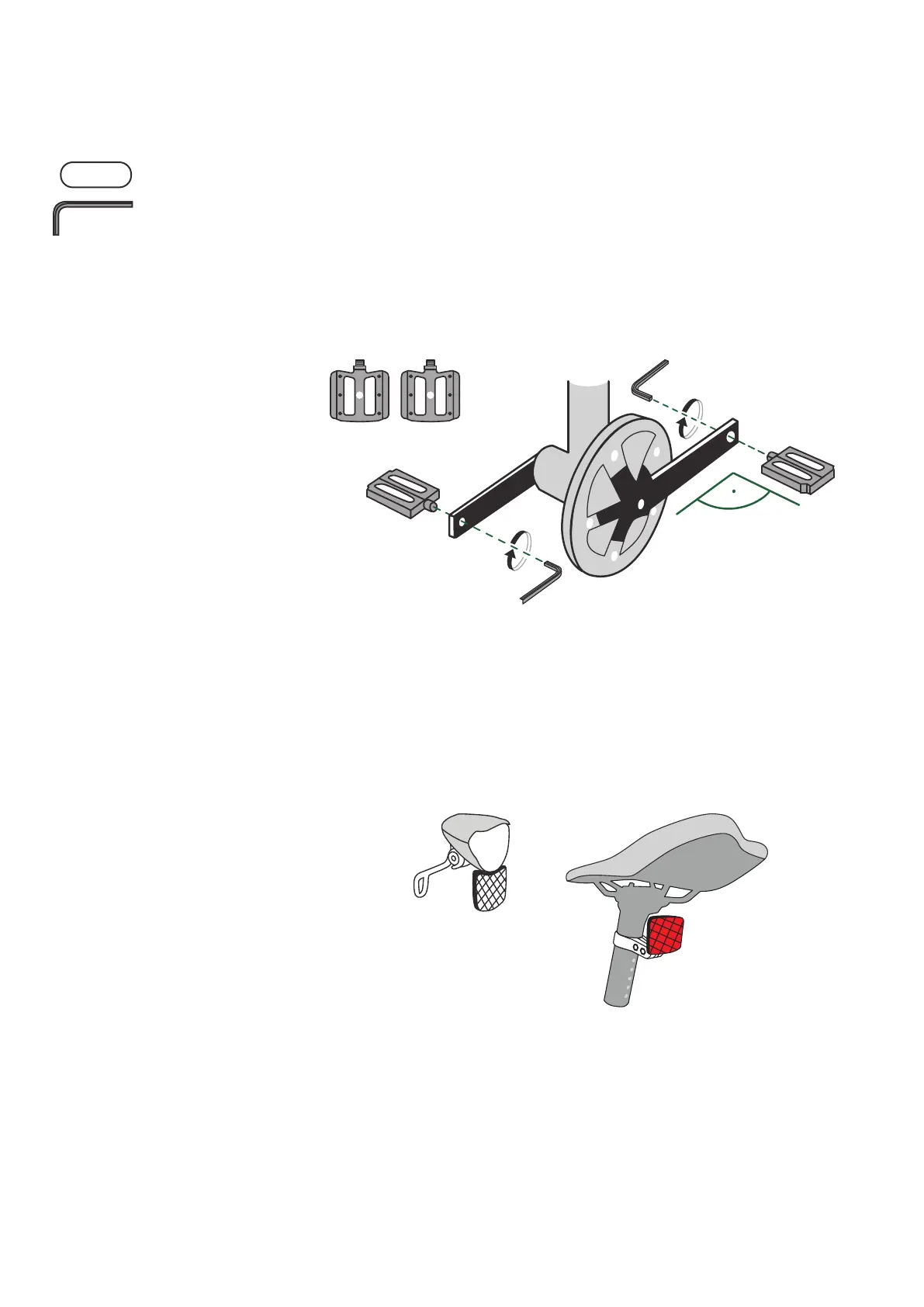

Insert the pedals 1. Unwrap the pedals. The pedals are marked with R (right) or L (left).
The R pedal goes on the chainwheel side and the L pedal goes on
the non-chainwheel side.
2. Tighten the pedals with the 6 mm hex key Pedals need to be tight
so make sure you put some
Pedals need to be tight so make sure you put some force into it.
Expect resistance only at the end of the thread, if the pedal is hard to
thread in from the beginning then the threads must be inspected.
L
R
links rechts
6 mm
1. Clamp the white front reector below the front light.
2. Attach the red rear reector to the bracket. Wrap the bracket
around the seat post and secure it with the screw.
3. Attach one orange reector on the front wheel, one on the rear
wheel. Pick a spoke, place the reector on the spoke and push the
clasp at the reector mount. Fasten it with a screwdriver.
Mount the reectors
