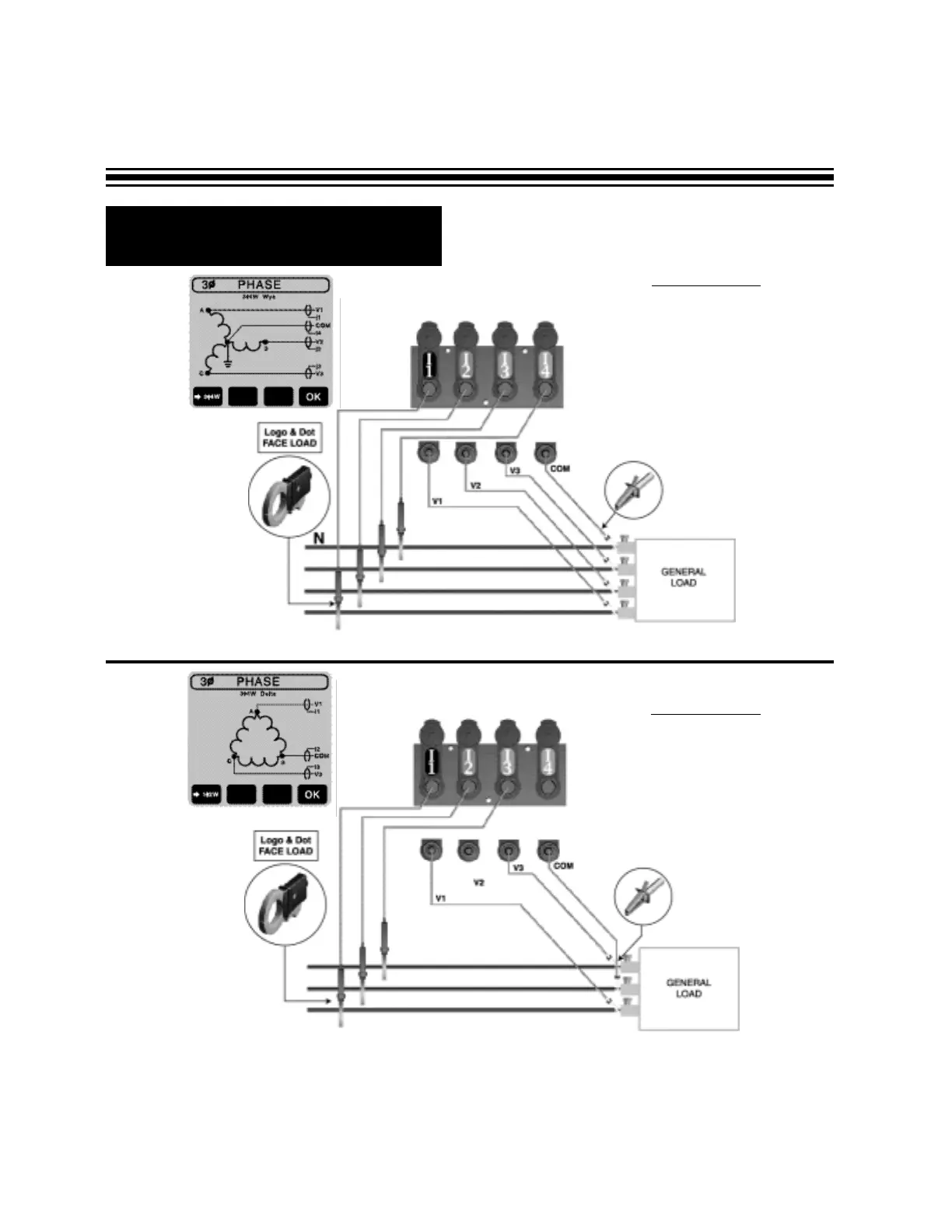

R Phase Set-up (cont’d.)
DRAWING A
3-Phase 4-Wire
(phase to neutral measurement)
DRA
WING B
3-Phase 3-Wire
(phase to phase measurement)
Page 6
NOTE: V2 and I4 inputs are NOT used.
NOTE: Use 3-Phase 3-Wire set-up (below) for phase voltage measurement on 3-phase 4-wire system.
