As an example of this operation, let's assume in figure H. that output channel two operates in CC mode and output
channel one operates in CV mode. Perform the following steps:
1. Set output channel two to the maximum output voltage of desired range.
2. Set output channel one to the desired operating voltage.
The voltage of output channel one controls the voltage across the load. The output currents are algebraic sums of
the individual outputs.
3.5.2 CC OPERATION
The CC operation is similar in many ways to the CV operation, except that the output current must also be set. To
obtain CC operation, perform the following steps:
1. Program output voltage of the two channels to the desired operating voltage.
2. Program output channel one to one-half the desired operating current.
3. Program output channel two to one-half the desired operating current.
Both outputs operate in CC mode.
3.5.3 REMOTE SENSING CONFIGURATION (Parallel Connection Mode)
The following figure I illustrates the configuration for Remote Sensing in Parallel Operation.
OUTPUT
channel 1
OUTPUT
channel 2

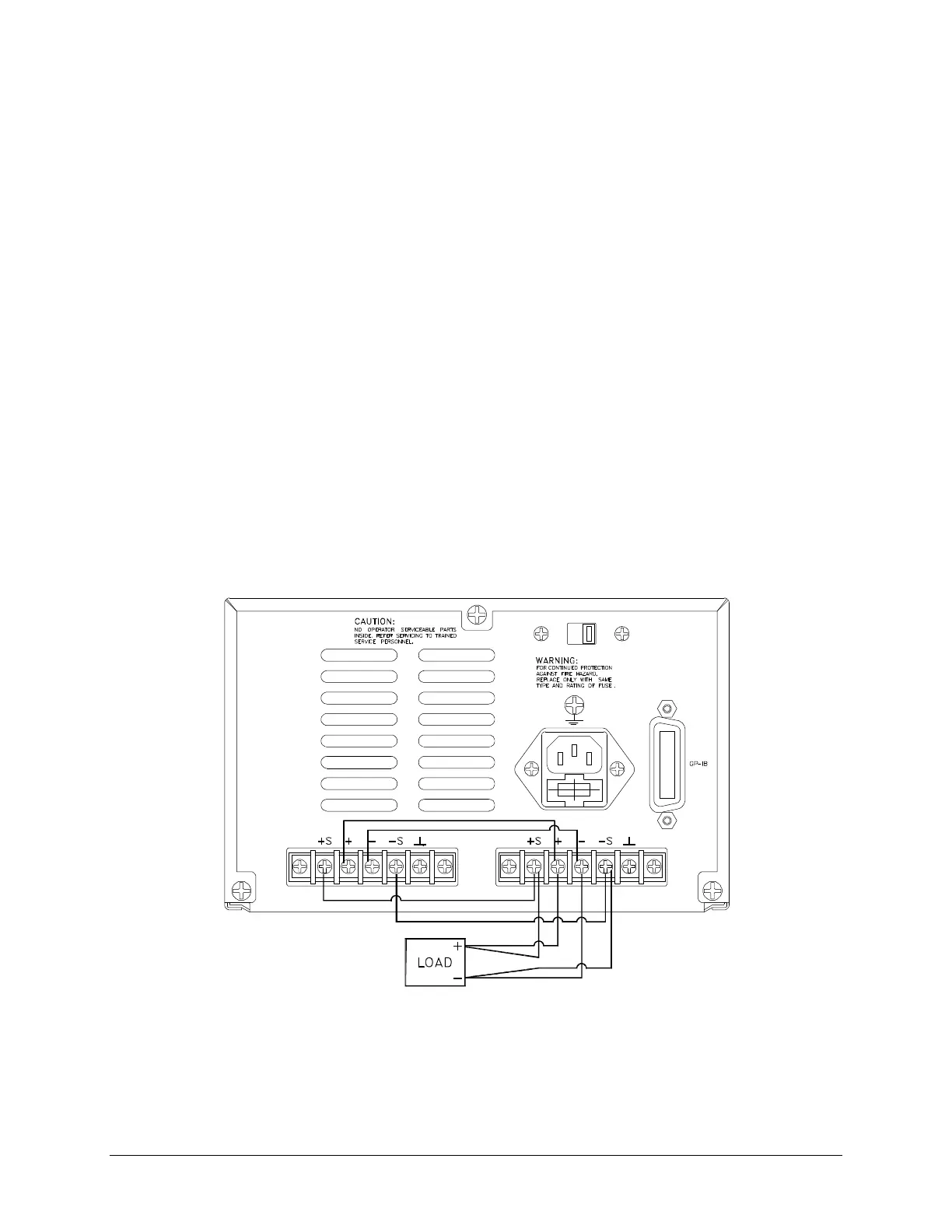

Figure I. Remote Sense, Parallel Mode
