17
3.6.3 REMOTE SENSE CONFIGURATION (Series Connection Mode)

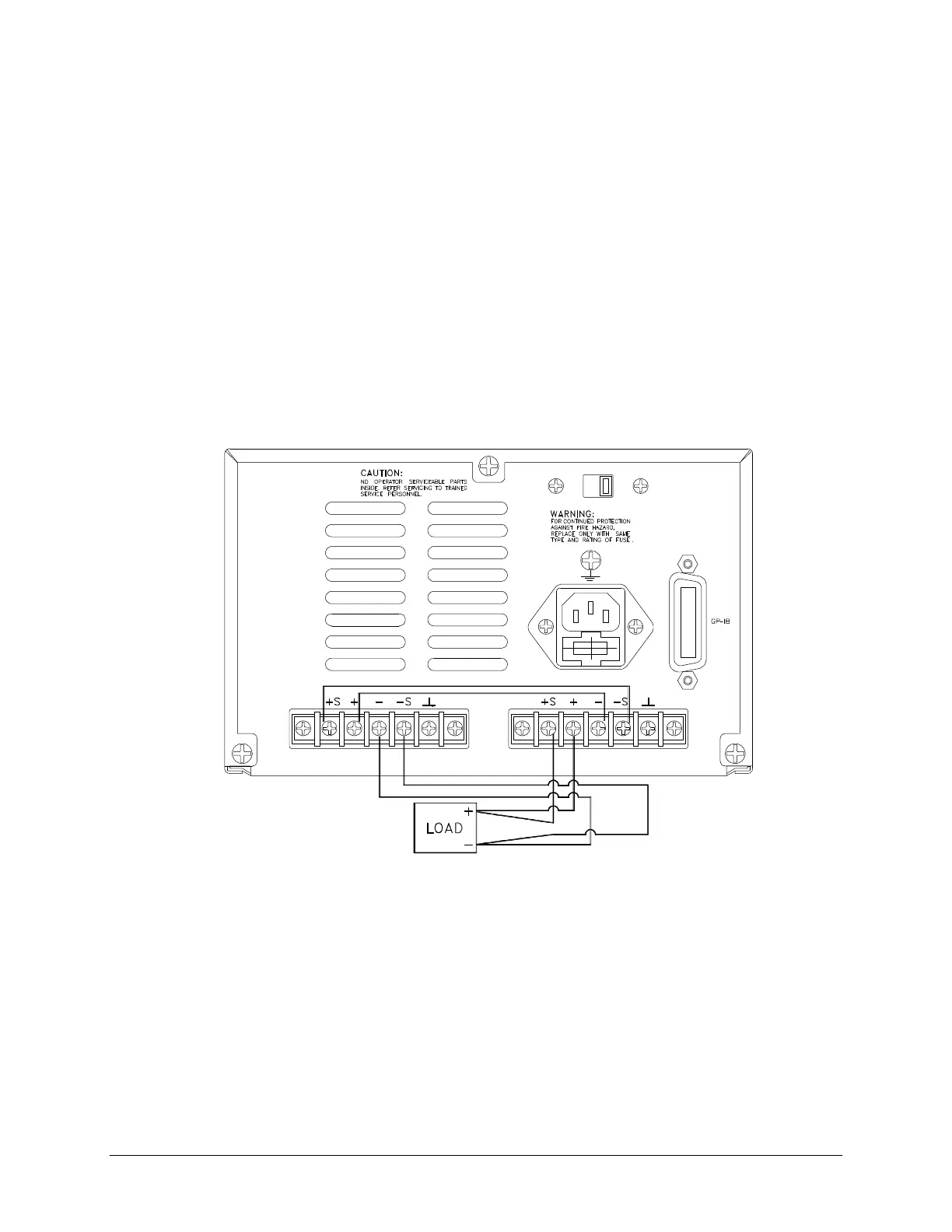

The following figure K illustrates the configuration for Remote Sensing in Series Operation.
OUTPUT
channel 1
OUTPUT
channel 2
Figure K. Series Configuration with Remote Sense
