Position :
> As close to the center of the ceiling as possible.
Incline :
> 90° Vertical.
Mirror surface (ground) :
Essential : The base of the aerial must be installed on a metal roof.
If the roof is made of plastic :
> The poor reception kit is specially designed for congurations
without a mirror surface.
> See Mirror surface on next page.
> Installations directly on the chassis are acceptable (mounted
on a mast).
> A grounding braid as far as the chassis is highly recommended.
> Electronic aerials are denitely not recommended
because they also amplify induced and existing radiated
interference.
Cable route :
> The aerial cable must be straight and must not follow or
cross electric or speaker wires, relays, motors, etc.

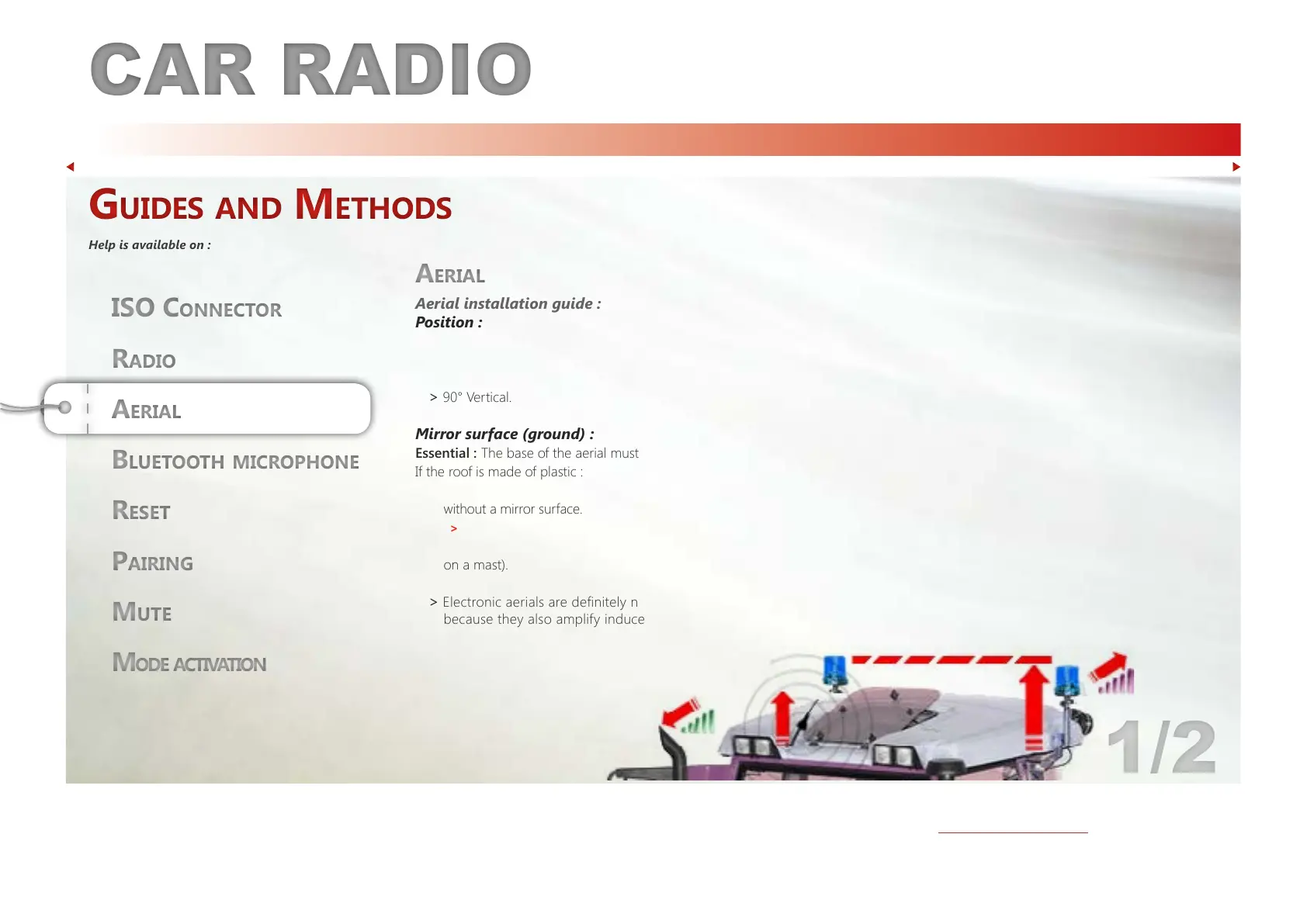

Aerial installation guide :
Mode activationMode activation
Bluetooth microphoneBluetooth microphone
ResetReset
PairingPairing
MuteMute
ISO COnneCtOrISO COnneCtOr
RadioRadio
AeriAlAeriAl
Guides and Methods
Help is available on :
Guides and Methods
Help is available on :
AeriAlAeriAl
1/21/2
> The length must be adapted to the distance between the
radio and the aerial, with no excess.
Length :
> The aerial must be long enough to be higher that the ashing
lights (23,6» above the ashing lights).
Recommendation : We recommend rigid aerials with an
integrated coil, which theoretically extends the length of the
aerial and offers an excellent noise-to-signal ratio.
