AMSTRAD PC1512 - Page 24

CABINET
PARTS LIST
Ref. Description
Part
No.
1 Cabinet Top
171350
2 Lid Expansion
PCB
171352
3
Plate Earth
CPU
171364
4 Cabinet Front
Assembly
SD 171450
5 CPU PCB
171410
6
Cabinet
Bottom
171351
7 Lid, Jack
171353
8 Frame
FDD SD
171365
8a
Frame
FDD A IN DD
171366
9
Screw
Cap
171363
10
Plate Spring Battery
171367
11 Terminal Battery
171368
12 Cabinet Front
Assembly
171359
13 Plate
Shield Top
171689
14 Plate Shield
Bottom
171690
15 F.D. Drive
(A&B)
171576
17 Knob
Volume
171362
18
Speaker
171370
19 Fan HD Unit
171665
21 Top Cabinet
Keyboard
171354
22 Switch
Key Board
171409
23 Keyboard PCB
171412
24 Cabinet Bottom
Assembly
171355
25 Stand Keyboard
171358
26 Washer
171659
27 Cord
6 Pin DIN/Keyboard
171420
Cabinet
Front Assembly HD10
171660
Cabinet Front Assembly
HD20 171661
HD10 Kit Assembly
171662
HD20 Kit Assembly
171663
Mouse
MS-2
171664
Leg
Rubber
171357
Leg Rubber
171356
Plate Brand (Keyboard)
171360
Plate Brand (C.P. Unit)
171361

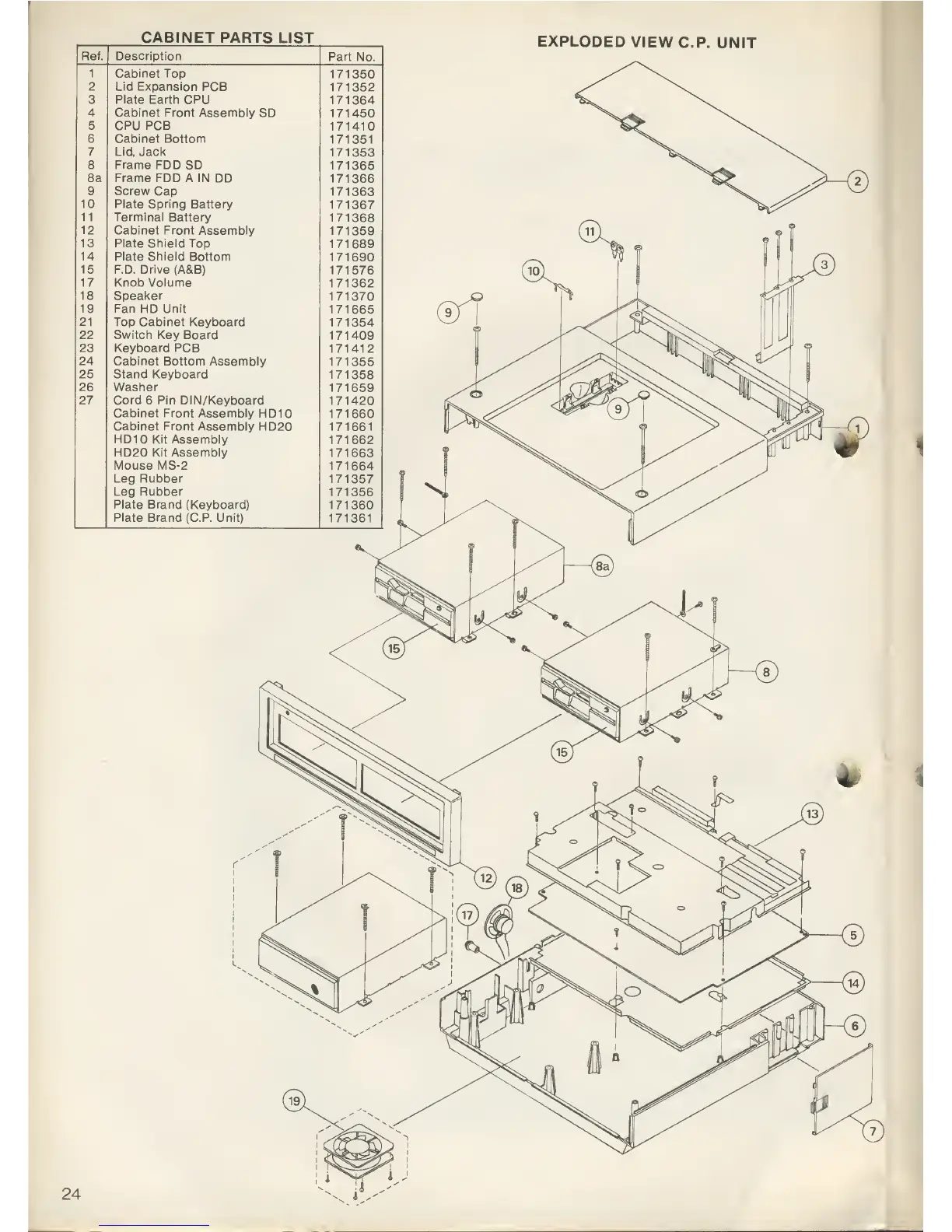

EXPLODED
VIEW
C.P.
UNIT
24
