Installing Wall-Mount (MXD) Panels
36
Modero S Series G4 Touch Panels Instruction Manual
Not all of the tabs must be extended to lock the Backbox in place, but extending a minimum of the top and
bottom tabs is highly recommended.
Apply enough pressure to the screw head to keep the box flush with the wall: this ensures that the locking tabs
will tighten up against the inside of the wall.
The Backbox is clear to allow visual confirmation that the tabs have been extended and are gripping the wall,
as well as in assisting with removal if necessary.
MSD-1001-L and MSD-701-L only: For additional strength, #4 mounting screws (not included) may be
secured through circular holes located at the left and right sides of the panel. In order to prevent damage to the
touch panel, make sure that these are flush with the Backbox.
9. Insert each connector into its corresponding location along the back of the device:

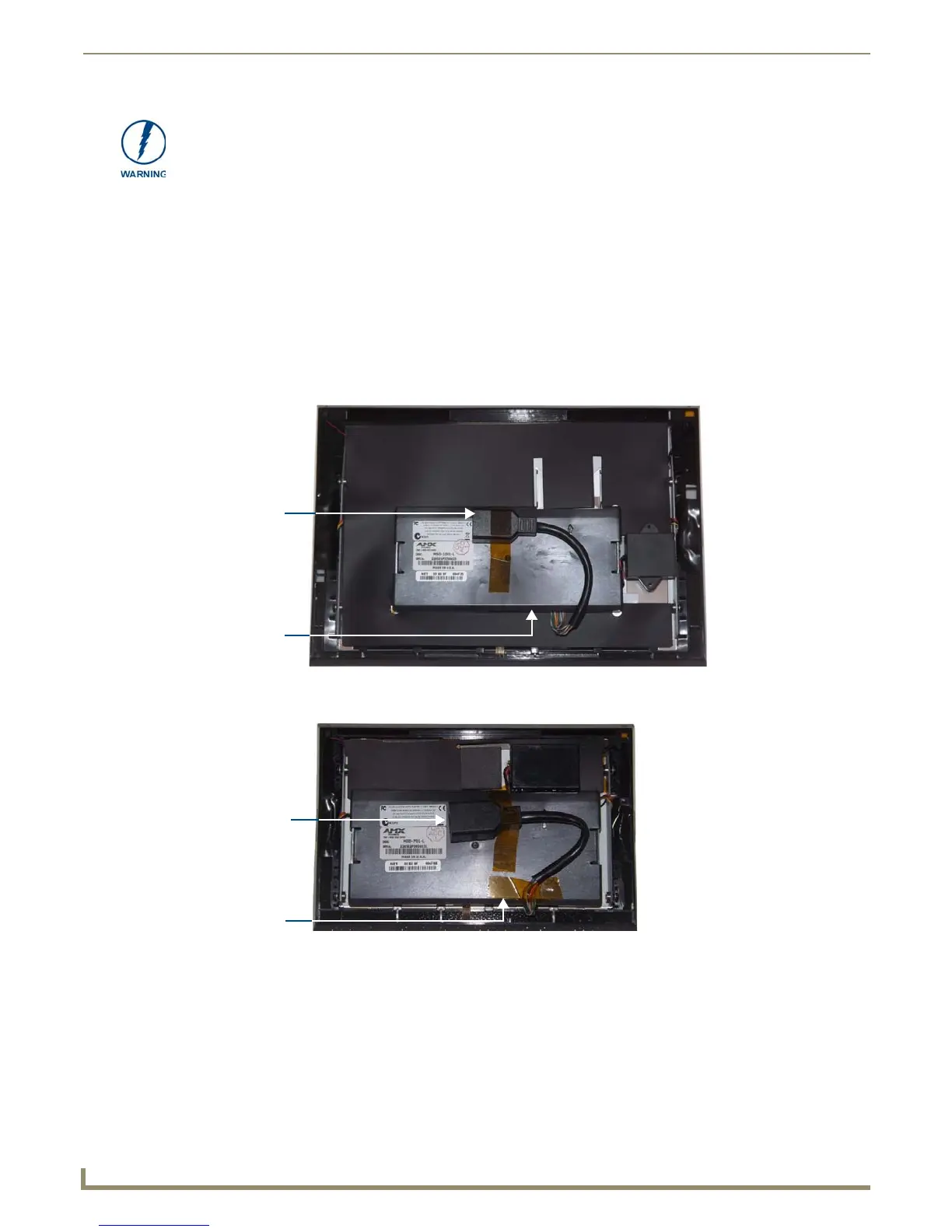

FIG. 22 shows the connectors on the rear of the MSD-1001-L: .
FIG. 23 shows the connectors on the rear of the MSD-701-L:
The maximum recommended torque to screw in the locking tabs on the plastic
Backbox is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the tab
screws, such as with powered screwdrivers, can strip out the locking tabs or damage
the Backbox.
FIG. 22 Rear of the MSD-1001-L
FIG. 23 Rear of the MSD-701-L
