NXA-CFSP Compact Flash
9
MVP-7500/8400 Modero Viewpoint Wireless Touch Panels
2. Place the circuit board on a flat level surface so that the IR Emitters are pointing away from you
(FIG. 6).
3. Insert the tip of a grounded flat-head screwdriver into one of the card removal grooves (located on
either side of the existing Compact Flash card), and gently pry it out of the slot (FIG. 7). Repeat this
process on the opposite card removal groove. This alternating action causes the pre-existing card to
"wiggle" away from the on-board connector pins.
4. Slip your finger into the opening (between the connector pins and the card resulting from step 3)
and push the card out.
5. Finish the process by firmly gripping the exposed sides of the card and pulling it out (FIG. 7). USE
CARE WHEN HANDLING THE CARD.
6. Insert the new card firmly into the slot opening connector (FIG. 7) until the contact pins are
completely inside the card and securely attached to the pin sockets.

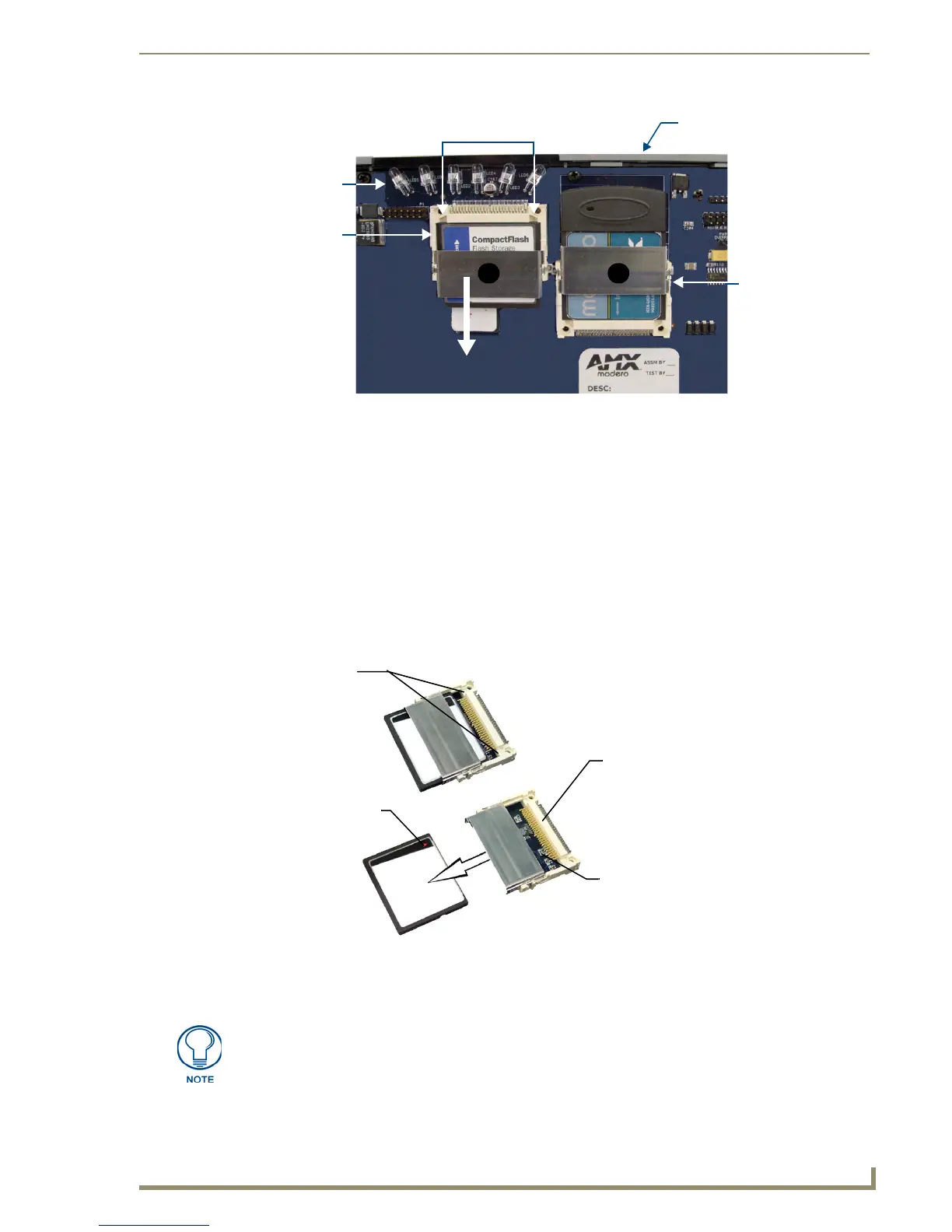

FIG. 6 Location and orientation of the Compact Flash cards (both MVP panels)
FIG. 7 Removing/installing a Compact Flash Memory card
Compact Flash
Card removal grooves
IR Emitters
Internal circuit board
(top view - detail)
A B
Wireless Interface
card
card
Card removal
grooves
Insert with arrow
facing towards the pins
On-board Compact
Flash connector (with pins)
Connector opening
Any new Compact Flash card upgrade is detected by the panel only after the unit
cycles power.
