MVP-7500/8400 Modero Viewpoint Wireless Touch Panels
NXA-WC80211GCF 802.11g Wireless Interface Card
Optionally, MVP panels can be upgraded with the field-installable 802.11g Wi-Fi card (FG2255-07),
purchased separately as a Wi-Fi Upgrade Kit.
The NXA-WC80211GCF is a 2.4 GHz Wi-Fi LAN CF Card which upgrades a Modero panel’s RF
capabilities from 802.11b to 802.11g. This card provides enhanced range and throughput, wireless
encryption and data security (WPA and WPA2 and WEP) in Compact Flash Type I form factor.
The NXA-WC80211GCF incorporates DSSS and OFDM radio technology and operates at ISM
frequency bands of 2.4 GHz, while providing data transfer speeds of up to 54Mbps.
Other features include:
 Support for IEEE 802.11b and 802.11g
 Supports Advanced Encryption Standard (AES) at 128-bit.
802.11b Wireless Interface Card Specifications (Cont.)
Power Consumption: • TX power consumption: < 265 mA
• RX power consumption: <
165 mA
• Sleep Mode: 2 mA - 15 mA
Radio Data Rate: • 1Mbps, 2Mbps, 5.5Mbps, 11Mbps, Auto Rate
Receive Sensitivity: • @PER < 8%
11 Mbps: -83 dBm (max)
5.5 Mbps: -86 dBm (max)
2 Mbps: -89 dBm (max)
1 Mbps: -92 dBm (max)
RF Output Power: • 15 dBm +/- 1 dBm
• Channels 1 - 11 (North America)
Security: • WEP 64,128 bit, WPA/TKIP
Wireless Restrictions: • In R&TTE countries, such as France, the 802.11g frequency band is restricted to
2454 - 2483.5 MHz (2.4 - 2.4835 GHz) and a max power output of
100 mW EIRP outdoor.
Certifications: • FCC (United States)
• IC (Canada)
• CE (Europe)
• TELEC (Japan)
The only time the wireless card should be removed is in case of failure or when
upgrading to the 802.11g Wi-Fi card.

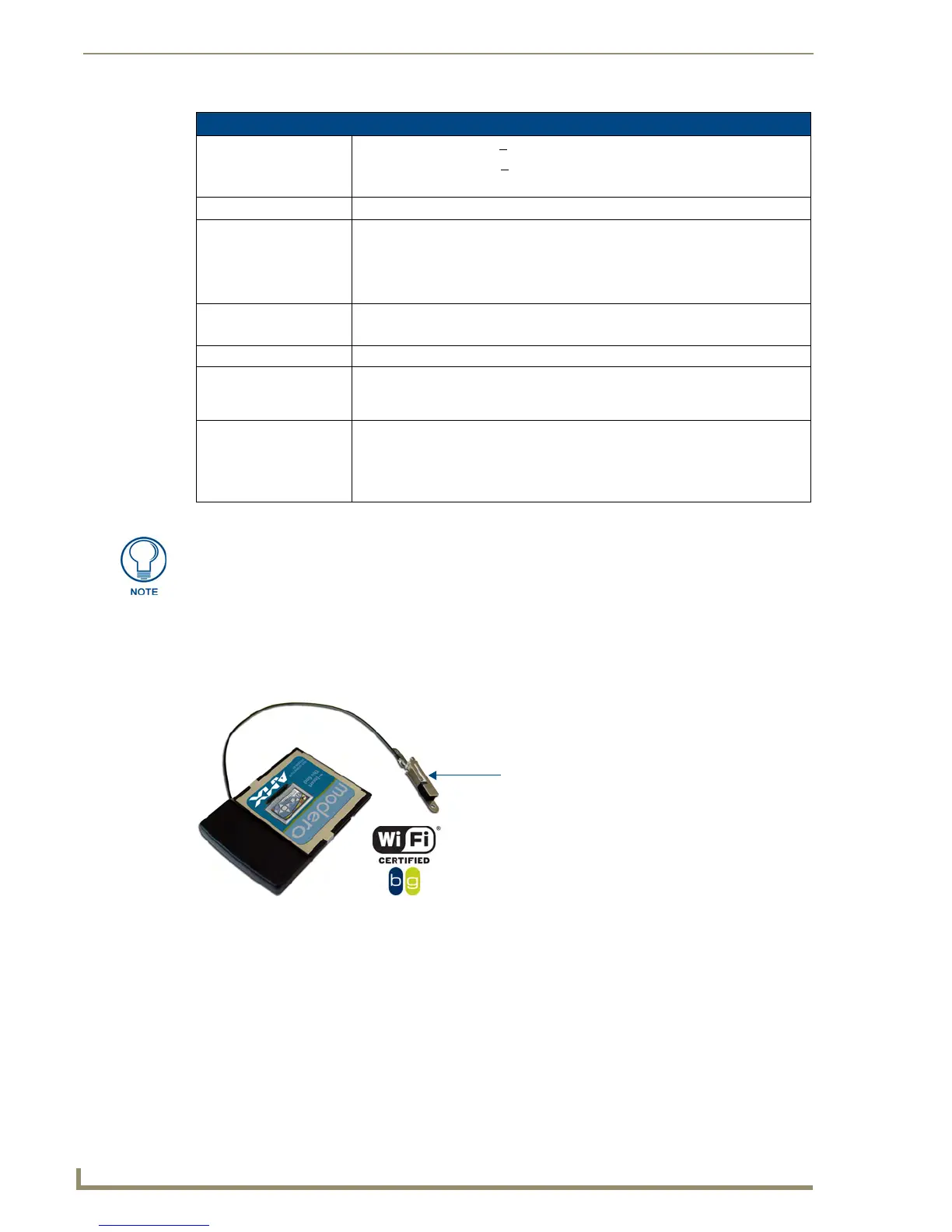

FIG. 9 NXA-WC80211GCF 802.11g wireless card
PIFA antenna
