AMX MVP-7500

MVP Modero Viewpoint Wireless Touch Panels
2
MVP-7500/8400 Modero Viewpoint Wireless Touch Panels
MVP Specifications
 The MVP-7500 (FG5965-01) utilizes a 7.5" Color Passive LCD to display a 640 x 480 pixel
image with 4096 colors.
 The MVP-8400 panel (FG5965-02) utilizes an 8.4" Color Active LCD to display an 800 x 600
pixel resolution using 256K colors.

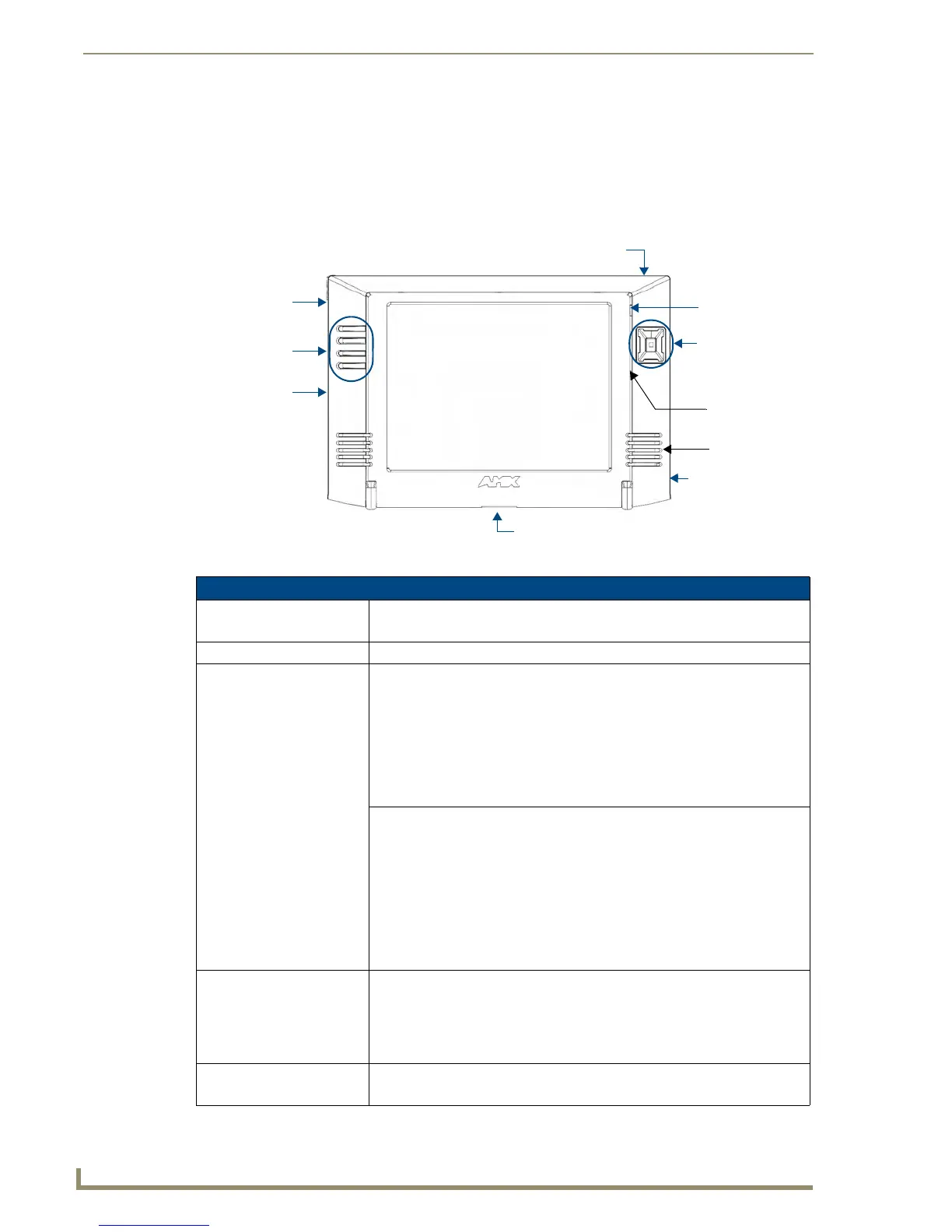

FIG. 2 MVP Touch Panels
MVP Specifications
Models: • MVP-7500
• MVP-8400
Dimensions (HWD): • 7.09" x 10.47" x 1.47" (18.00 cm x 26.60 cm x 3.73 cm)
Power Requirements: Without Charging:
MVP-7500:
• Constant current draw: 1.0 A @ 12 VDC
• Startup current draw: 1.5 A @ 12 VDC
MVP-8400:
• Constant current draw: 1.2 A @ 12 VDC
• Startup current draw: 1.8 A @ 12 VDC
While Charging:
MVP-7500:
• Constant current draw: 3.0 A @ 12 VDC
• Startup current draw: 3.6 A @ 12 VDC
MVP-8400:
• Constant current draw: 3.2 A @ 12 VDC
• Startup current draw: 3.8 A @ 12 VDC
• If MVP panel is mounted onto a TDS or WDS, add 0.1 A to the above figures.
Power Modes: • ON: Panel is fully functional.
• STANDBY: Panel uses low power, the LCD/backlight is shutdown, LEDs still
function. Panel resumes the ON mode in ~ 1 second.
• OFF: On-board programs not running, touch screen still powered, LED not
functional. Panel resumes the ON mode in ~ 30 seconds.
Battery Duration:
(per battery)
• Four hours of normal use (25% On state, 25% Standby, and 50% Off).
• Two hours of continuous use.
Docking station interface connector
Mini-USB connector
PWR connector
programmable
status LED
programmable
Stylus
(fits within slot
on side panel)
programmable
pushbuttons
programmable
pushbuttons
Stylus LED
Speaker (right)
Microphone
MVP-8400 only
MVP-8400 only
(joystick
configuration)
