The elements of this page include:

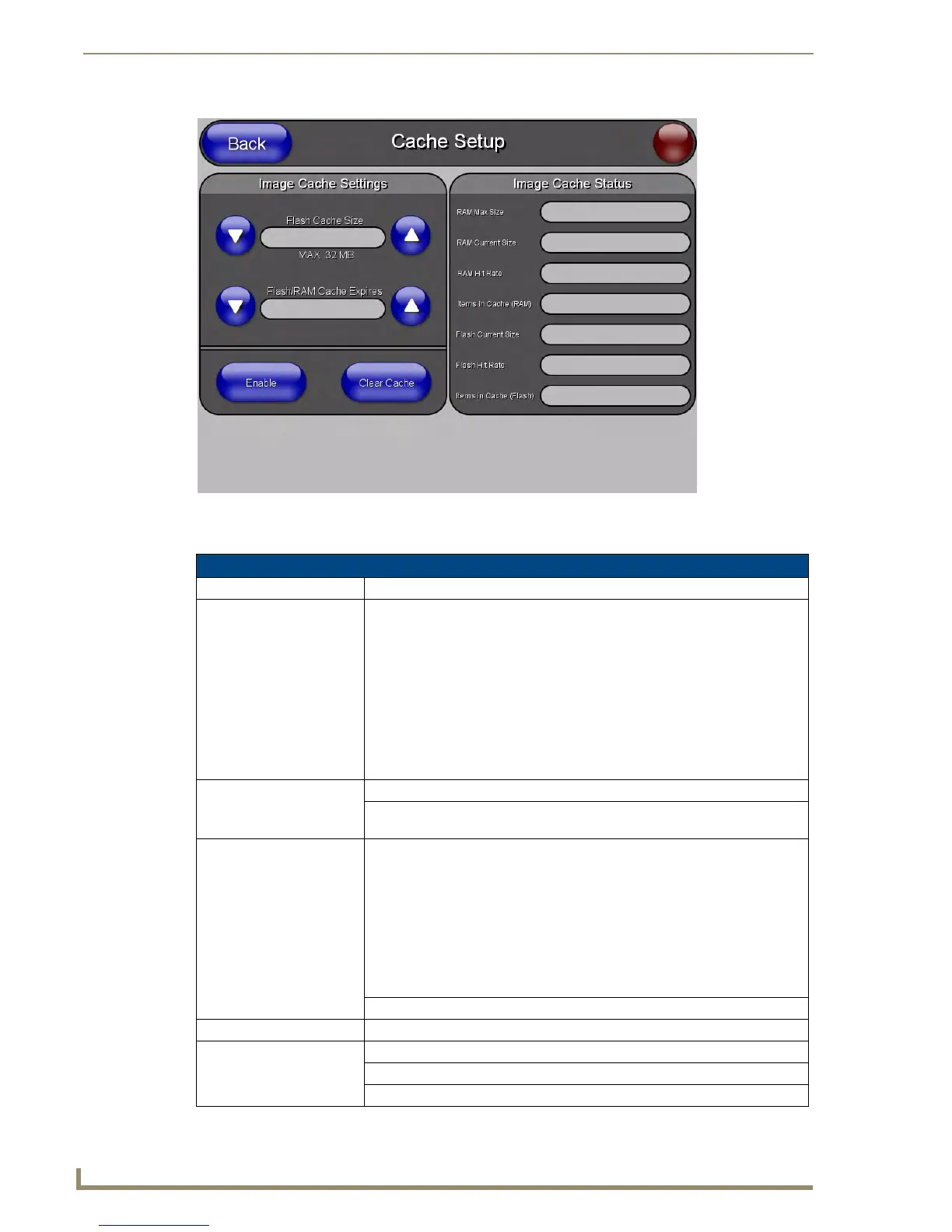

FIG. 63 Cache Setup Page (MVP-8400)
Cache Settings/Cache Setup Page Elements
Back: Saves all changes and returns to the previous page.
Connection Status icon: The icon in the upper-right corner of each Setup page shows online/offline state
of the panel to the master.
• Bright red - disconnected
• Bright green - connected. Blinks when a blink message is received to dark
green every 5 seconds for half a second then go back to bright green.
• Bright yellow - panel missed a blink message from the master. It will remain
yellow for 3 missed blink messages and then turn red. It will return to green
when a blink message is received.
Note: A Lock appears on the icon if the panel is connected to a secured
NetLinx Master.
Image Cache Settings: Allocates Flash memory for image caching.
Flash Cache Size Press the Up and Down arrows to add and remove memory. Flash memory
allocation cannot exceed the amount of Flash memory on the panel.
Flash/RAM Cache Expires Press the Up and Down arrows to change the amount of time the images stay
in cache memory. The options are:
•Never
• 2 Hours
• 8 Hours
•1 Day
•2 Days
•5 Days
Enable: Press this button to toggle the image Flash cache option On and Off.
Clear Cache: Press this button to clear both the Flash and RAM cache of all stored images.
Image Cache Status: The status of the memory available versus in use.
RAM Max Size The maximum amount of memory available for all image caching.
RAM Current Size The memory that is currently in use for caching static and dynamic images.
