Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
NX-4200
The NX-4200 (FG2106-04) has 1GB of on-board RAM, a 13GB CompactFlash card, and is Device Discovery
enabled to simplify programming by standardizing device and function definitions, default touch panel button
assignments, and control and feedback methods. A complete list of device specifications is listed below.

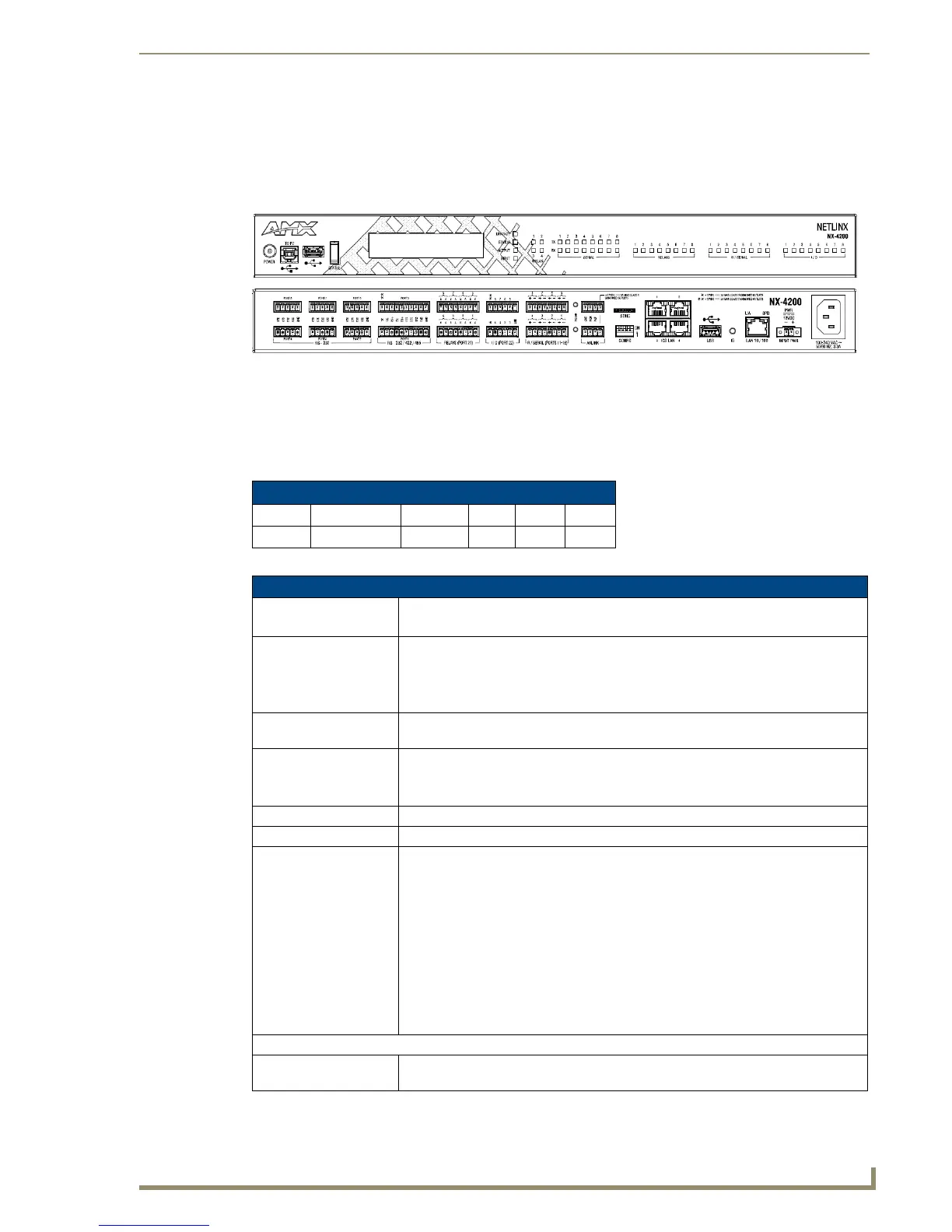

FIG. 5 displays the NX-4200.
FIG. 5 NX-4200 (front and rear panels)
The NX-4200’s on-board Master also provides the ability to update installed control card firmware.
Note: Verify you are using the latest NX firmware for the on-board Master. Verify you are using the latest
version of NetLinx Studio 4.0 (available for download from www.amx.com).
Port Numbers
The following table lists the port numbers for the NX-4200:
NX-4200 Specifications
NX-4200 Port Numbers
RS-232 RS-422/485 IR/Serial I/O Relay PoE
2-4, 6-8 1, 5 11-18 22 21 24-27
NX-4200 Specifications
Dimensions (HWD): 1.766" x 17" x 9.18" (44.85mm x 431.8mm x 233.17mm)
RU: 1
Active Power
Requirements:
• DC input voltage (typical): 12 V
DC
• DC current draw: 200 mA @ 12 V
DC
• DC range, voltage: 9-18 V
DC
• AC voltage (typical): 100-240V
AC
50/60Hz
Active Power
Consumption:
8.4W
Memory: • 1 GB RAM
• 1 MB Non-volatile RAM (NVRAM)
• 8 GB Internal MicroSD memory card
Weight: 7.6 lbs (3.4473 kg)
Enclosure: Metal with black matte finish
Certifications: • FCC CFR Title 47 Part 15
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
• IEC 60950-1
• UL 60950-1
• C-Tick CISPR 22
• IC CISPR 22
• VCCI CISPR 22
• RoHS / WEEE compliant
Front Panel Components
Power: Press the Power button to power on or power off the controller. Hold for 2 seconds to
power off. Momentary press to power back on.
