Installation & Setup
21
Precis LT Instruction Manual
Attaching Video Cables
Standard Video
The video BNC connectors are color coded; the white BNC connectors are inputs and the black BNC
connectors are outputs.
To attach BNC cables:
1.
Fasten the cable connectors onto the input and output BNC connectors (FIG. 10).
S-Video
The Precis LT S-Video models are equipped with locking S-Video connectors. When used in conjunction
with AMX AutoPatch manufactured S-Video cables, the cable connectors lock into the Precis LT
connectors. Cables with standard S-Video connectors may be used, but will not lock.
To attach S-Video cables:
1.
Fasten the cable connectors onto the input and output S-Video connectors (FIG. 11).
Caution: The connector or the Precis LT may be damaged by pulling on the cable instead of the
housing to remove a locking S-Video connector.
To attach locking S-Video cables:
1.
Hold the connector at a slight angle to the right while pushing in.
Or
Pull back on the housing of the connector (FIG. 12) while pushing the connector in.
To remove locking S-Video cables:
Pull back on the housing of the connector (FIG. 12).

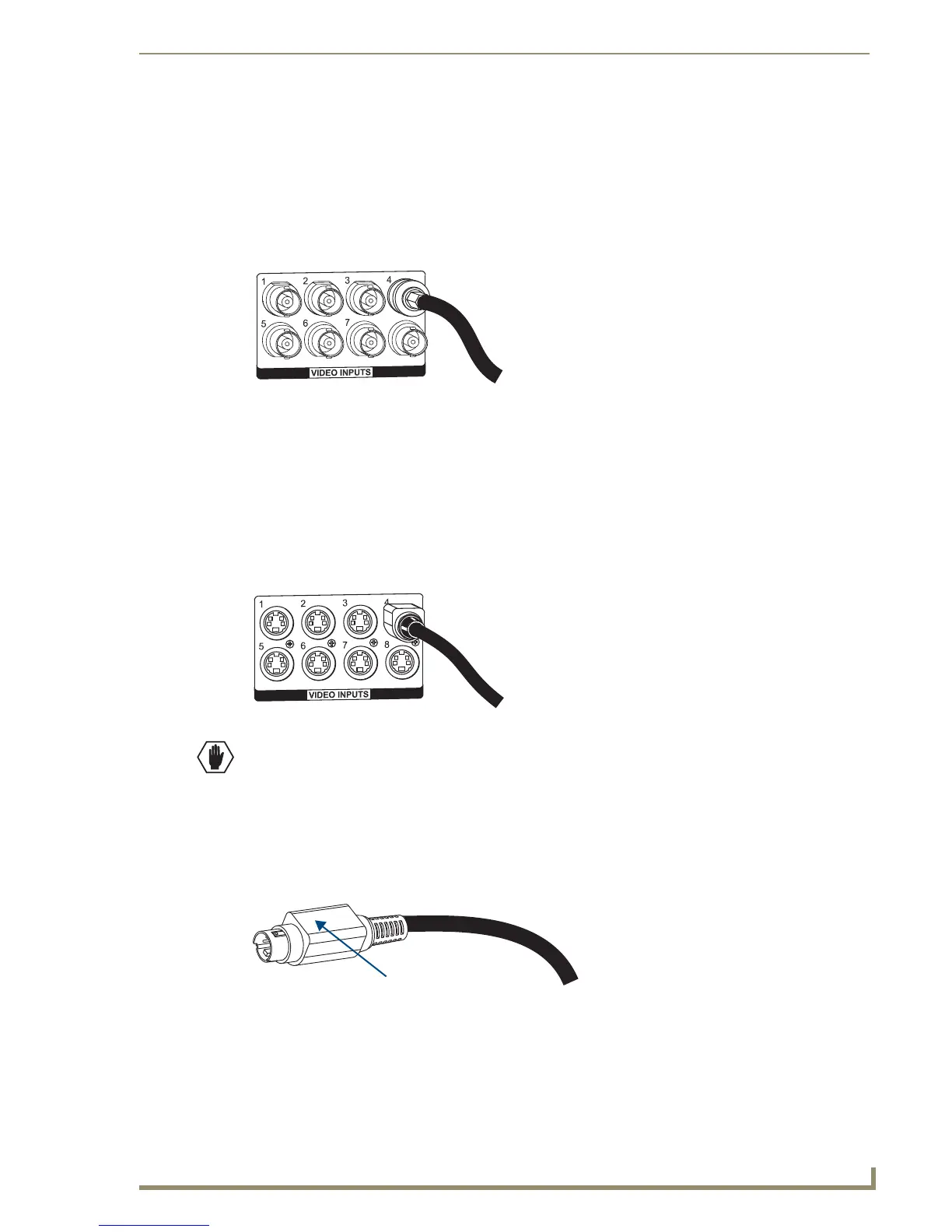

FIG. 10 Fasten cable connector onto BNC connector
FIG. 11 Fasten cable connector to the S-Video connector
FIG. 12 Pull back housing to fasten or unfasten locking S-Video connectors
