To Replace Light
Caution: LED light can not replace a new bulb, r eplace the whole LED light.
Make sure all the control switches are off, and the r ange hoods unplugged!

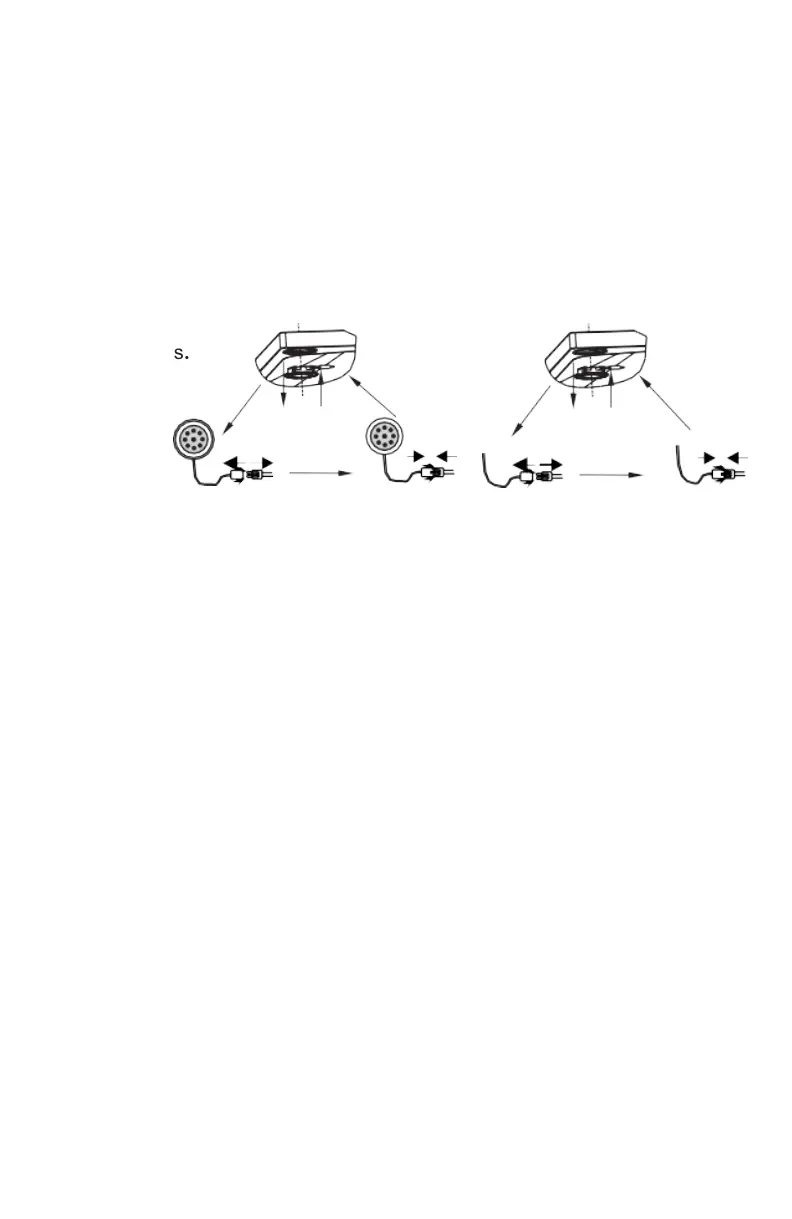

Take out the fliters and cut off the wire connection of the light, press the spring
You can replace a new LED light unit no more than rating!
Then put the light unit to the hood in reverse direction. Connect the wire of
Fit on the flters.
Installation instructions
Preparing the range hood:
1. Open the electrical knockout which is best for your wiring.
2. Fix the shutter to the range hood’s vent; prevent the leakage of oil by
taping the connection with aluminum metal adhesive tape, or duct tape.
3. Attach the ruber support to the back of the range hood.
4. Unscrew and remove the range hood’s bottom cover.
1. Pass the wiring through the electrical knockout hole in the range hood.
2. Put the range hood onto the bottom of the cabinet. Make sure the rear
side is close to the wall, and the hood is equally spaced on each side and
that the top of the range hood is attached to the cabinet. On each side of
the range hood, use 2pcs screws to fix the body to the cabinet.
3. Connect the green wire from power source to the green ground wire on
the range hood. Make the electrical connection by fastening the white wire
line to white and the black wire to black.
4. Reinstall the range hood’s bottom cover and stainless steel baffle filters.
5. Reinstall the oil container.
6. Turn on the power and check the operation of the fans and light.
