Anchor AN-1000X User Manual

LINE IN
Balanced Input
The balanced XLR jack input allows the AN-1000X to be
used in a variety of applications. The input can be configured
by the user for use with Lo-Z microphone or bridging
balanced line-level inputs (such as used in the pro-audio and
broadcast industry). In addition, the input has 15 volt
phantom power which may be switched on or off.
To set the input, remove the rubber grommet just above
the XLR input to expose the configuration switch. With a
small pointed object, slide the three dip switches to the con-
figuration required as shown below.
Line Inputs
The line-level inputs (RCA and 1/4"-phone) may be used
with input sources such as VCR's, cassette and CD players,
musical instruments, computers, mixing consoles, etc. Both
inputs may be used simultaneously on the AN-1000X—the
volume control will control the composite program output.
Line Output
The line-level output provides a replica of the composite
input signal. Use it for direct recording, or to daisy-chain
additional powered sound systems to the AN-1000X for
greater crowd coverage.
NOTE: All line-level connections must be made with shielded
cable to avoid hum, buzzing or radio interference.
Speaker Output
The external speaker output jack (1/4"-phone, unswitched)
allows the user to power an auxiliary unpowered speaker
(such as the AN-1001X). The auxiliary speaker must have a
minimum impedance of 8 ohms.
POWER
two-way powered monitor
LINE OUT
SPEAKER OUT
(8 OHM)
LINE IN
BALANCED
INPUT
FUSE
MIC LINE
Operation
7
LINE OUT
SPEAKER OUT
(8 OHM)
Operation
6
ALWAYS use
shielded audio
cables on all
input connec-
tions to prevent
interference

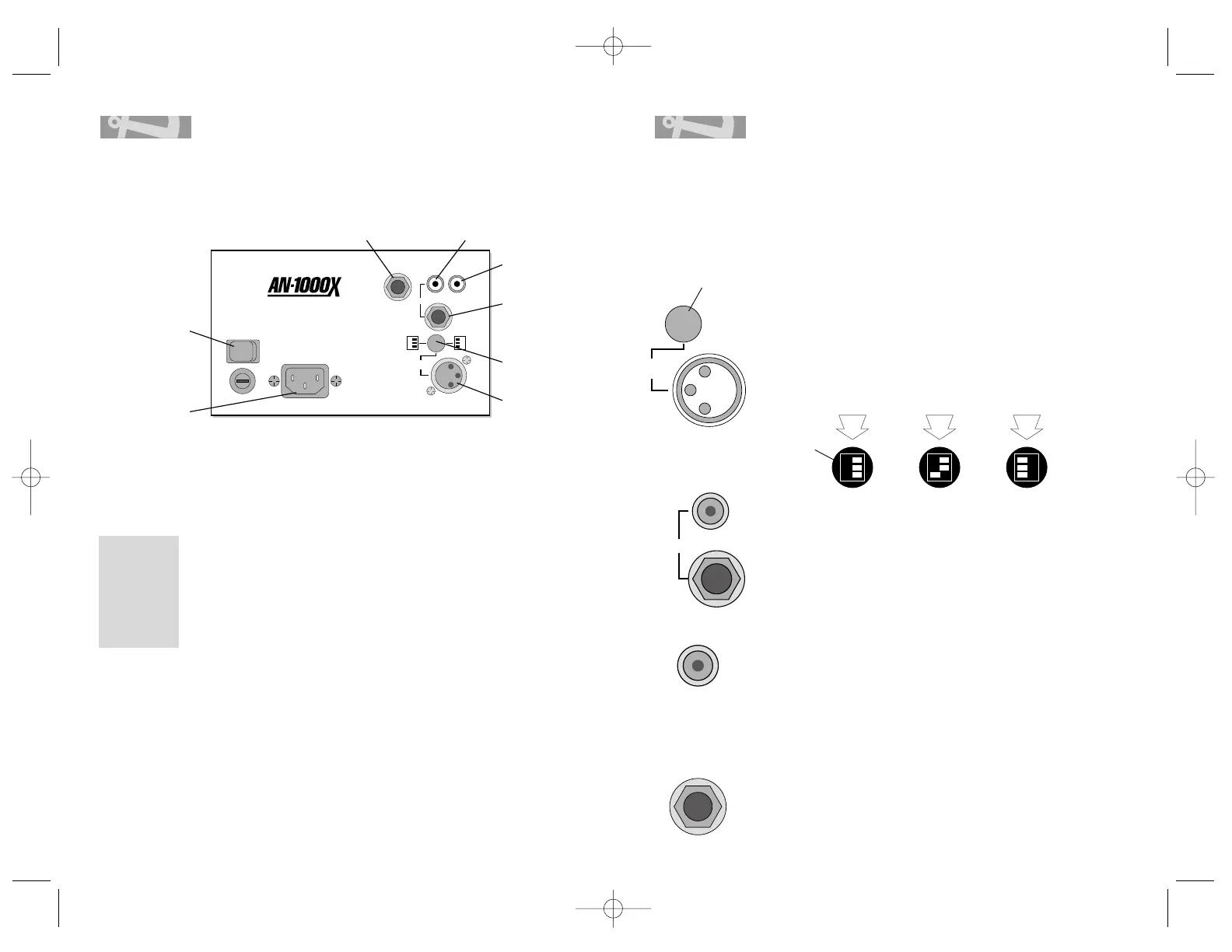

AN-1000X Rear Panel
MIC LEVEL
phantom power ON
LINE LEVEL
phantom power OFF
MIC LEVEL
phantom power OFF
factory setting
BALANCED
INPUT
rubber grommet
Operating the system
1. Place the AN-1000X at desired listening location.
2. Plug the power cord into a grounded AC outlet.
3. Plug an audio source into one of the three input jacks
on the back panel:
• LINE IN; RCA jack
• LINE IN; 1/4-inch phone jack
• BALANCED INPUT; XLR jack (*see below)
4. Set the volume knob on front panel to minimum,
then turn power switch on back panel ON (the red
LED on the front panel of the unit should light).
5. Adjust the volume bass and treble for desired sound
output.
* The BALANCED INPUT jack is set at the factory for
microphone-level inputs with 15 volts DC phantom
power. See page 6 for instructions on how to change
the configuration of this input jack.
Line Output
(RCA jack)
Line Input
(1/4"-phone jack)
Balanced Input
Switch
Balanced Input
(3-pin XLR jack)
Line Input
(RCA jack)
Speaker Output
(1/4"-phone jack)
Power Switch
AC Cord Receptacle
