1.5 Power And Signal Connections
1.5.1 Power Supply Unit (PSU)
The Zyla camera is powered by a external 12 V DC Power Supply Unit (PSU). The Zyla camera is connected
via a 4 pin power connector - refer to Section 1.6.5. The external power supply has an IEC male socket that
requiresacertiedmainsleadwithanIECfemaleplugforconnectiontothemainselectricalsupply.
The Zyla PSU is for use with Telecommunications, Computer, Industrial Controller, and OA Systems and must
only be used indoors
The Zyla requires a Direct Current (DC) supply.

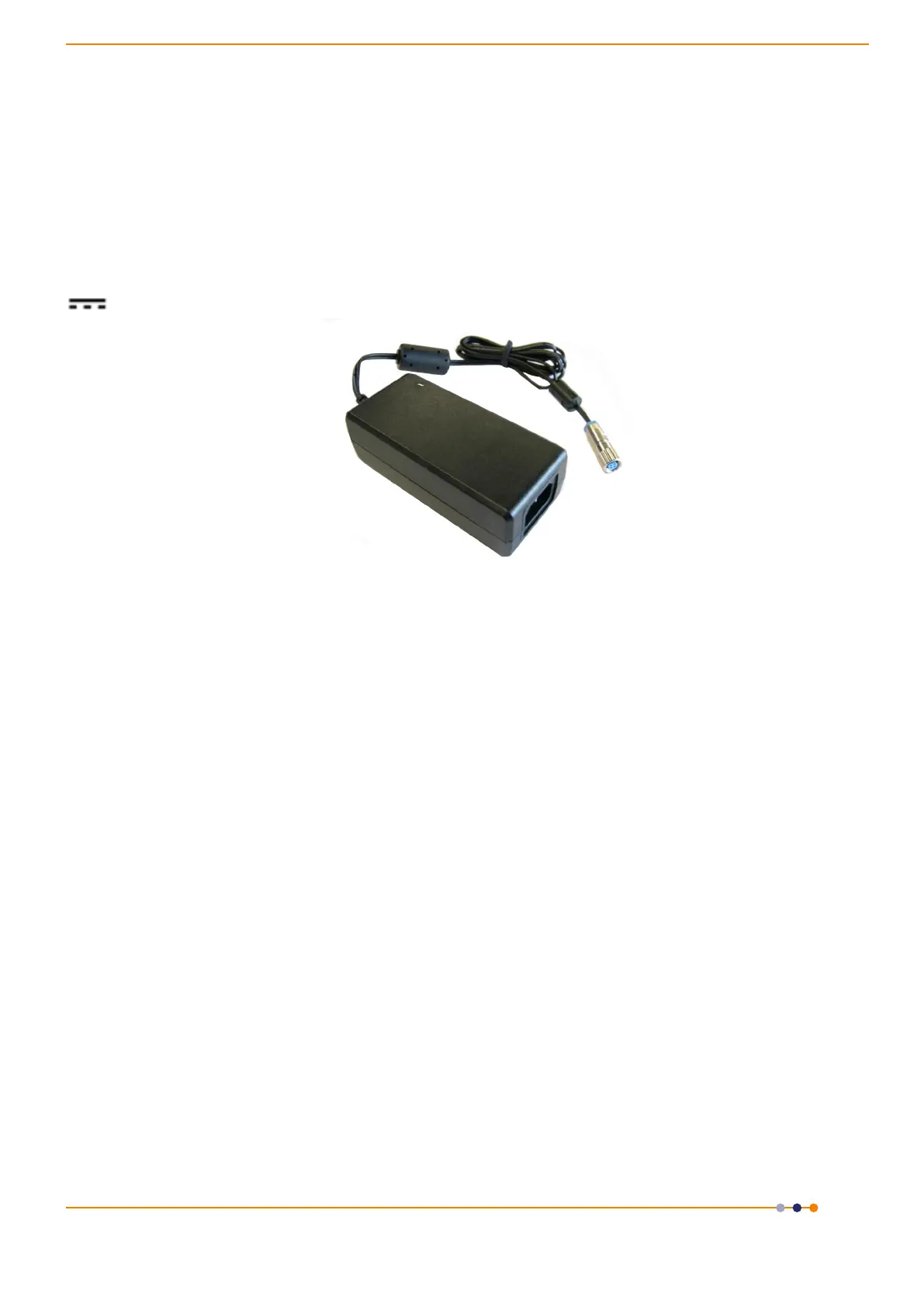

Figure 2: Power Supply Unit
NOTES:
1. Theelectricalmainsleadshouldbecertiedforuseinyourcountryandinapplicablecountriestheplug
mustbettedwitha240V5Afuse.
2. If users use any other power supply, they do so at their own risk.
