24 Andover Controls

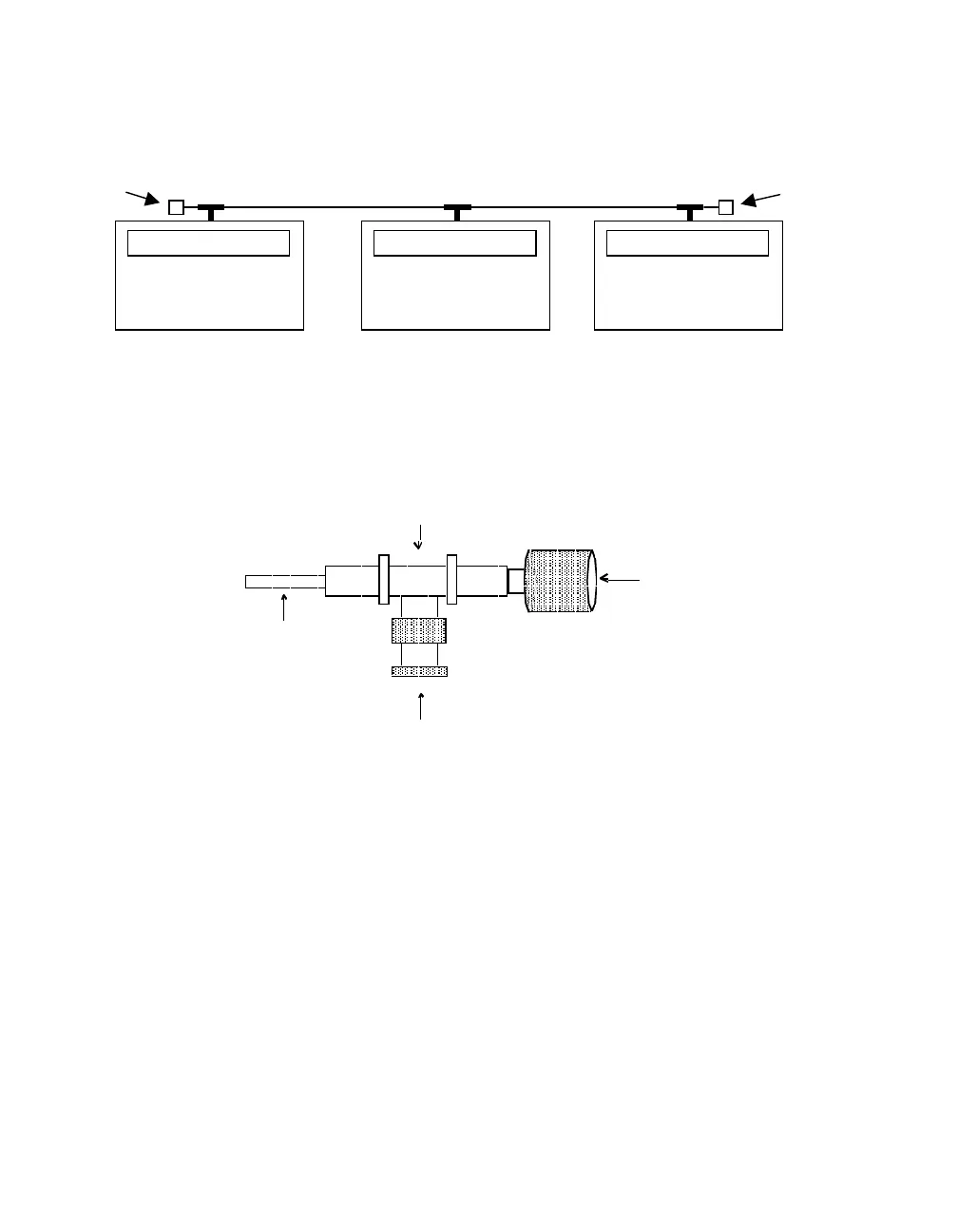

The following illustrates a simple 10Base-2 Ethernet installation with termination:
10BASE-2 Ethernet requires 50
Ω
terminating resistors on the first and last nodes on
the bus. The figure shown below illustrates the connection of the terminating resistor.
Terminator
Terminator
Coaxial
Connects to Coaxial
Coaxial T
Terminating
Connector on NetController
Resistor
