Andrew ES76PK-1 User Manual

Step 4
22
Installation Procedures

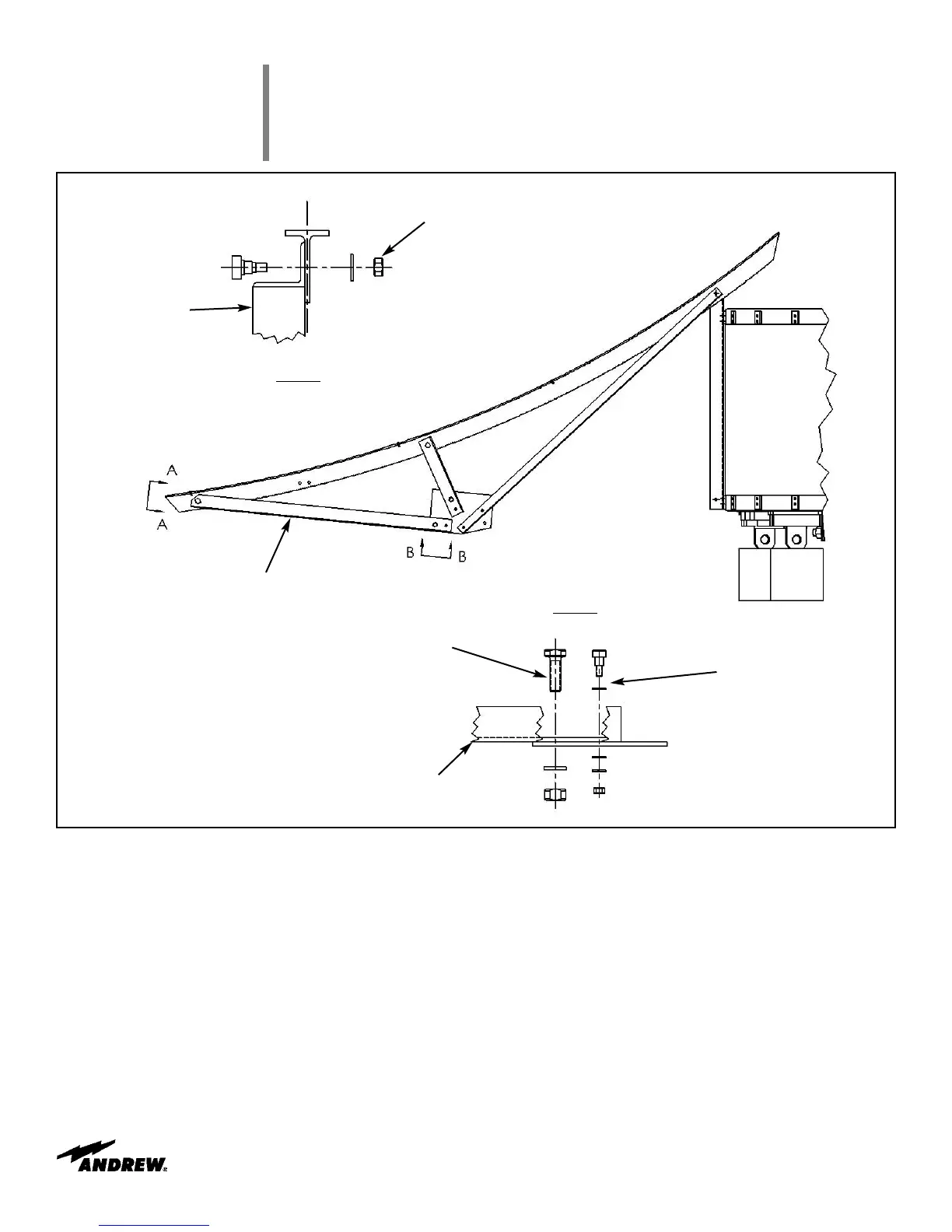

Install Outer Strut to assembly as shown in Figure 13. Leave hardware loose.
Figure 13
V
iew A-A
Eccentric Bolt, 300084A
Washer, 9997-101
1/2” Locknut, 9979-54
(Outer Strut, 300079)
Outer Strut, 300079
View B-B
1/2”x1/2 Shoulder Bolt, 9858-19
1/2” Washer, 9997-101
3/8” Washer, 9997-89
3/8” Lockwasher, 9974-63
3/8” Nut, 9999-60
5/8”x2.0 Bolt & Nut, 45980-1
Washer, 9997-227
(300079)
