Andrew Node G Series - Power Supply Unit; Figure 4-6 Power Supply

4 Functional Description
ID No: 7164491 Page 35
4.3.2. Power Supply Unit
The power supply unit is mounted in the door of the Main Unit.
This device transforms mains power into a predefined DC voltage. When performing
maintenance, ensure that all circuits are voltage-free and that the Node G is
disconnected from mains.

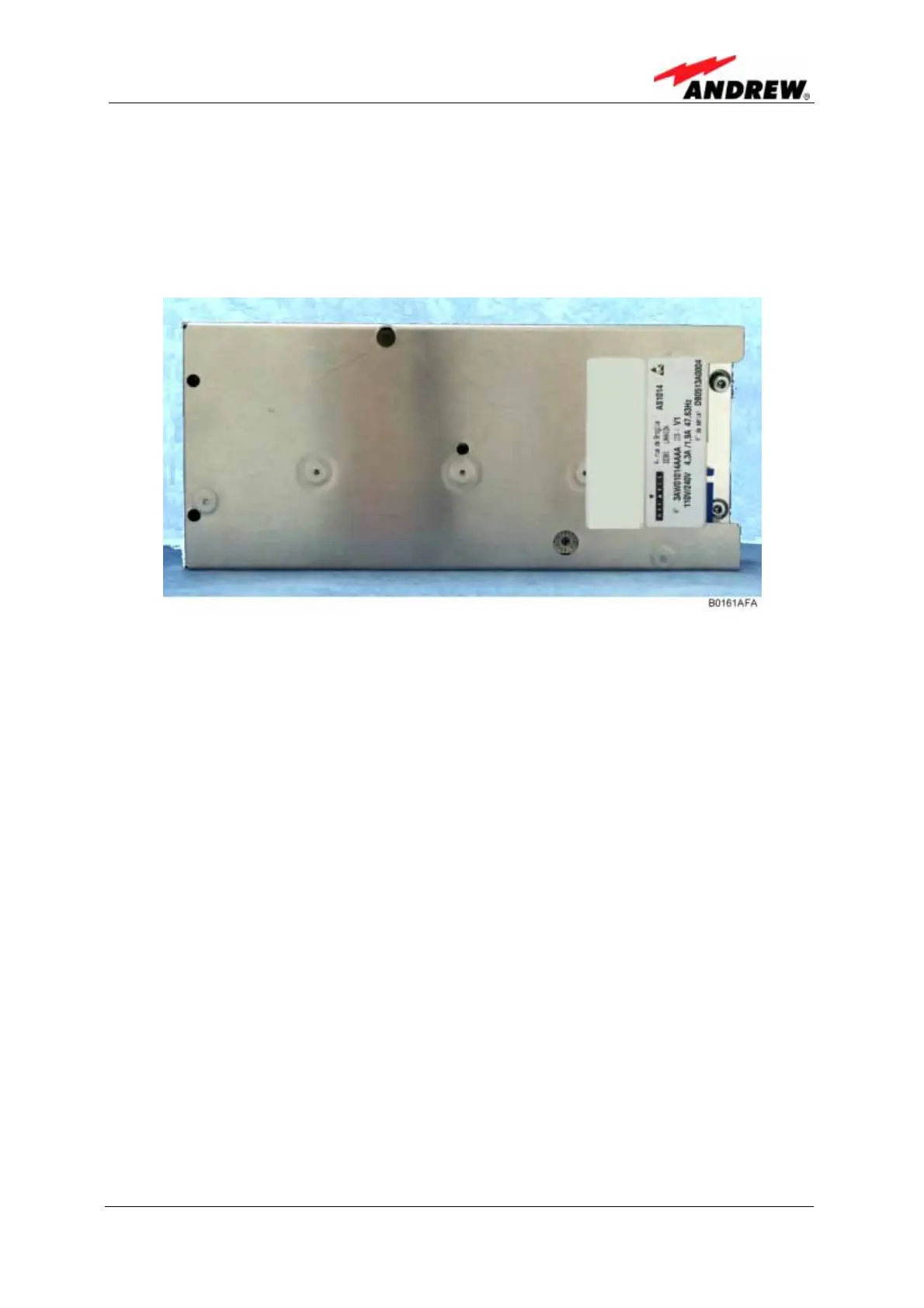

figure 4-6 Power supply
