Andrew Node G Series - Battery Pack; Figure 5-2 Battery Connection to DCM; Figure 5-3 Location of Battery Pack

User’s Manual for Node G
Network Elements
Page 50
M0121A2A.doc
5.2.2. Battery Pack

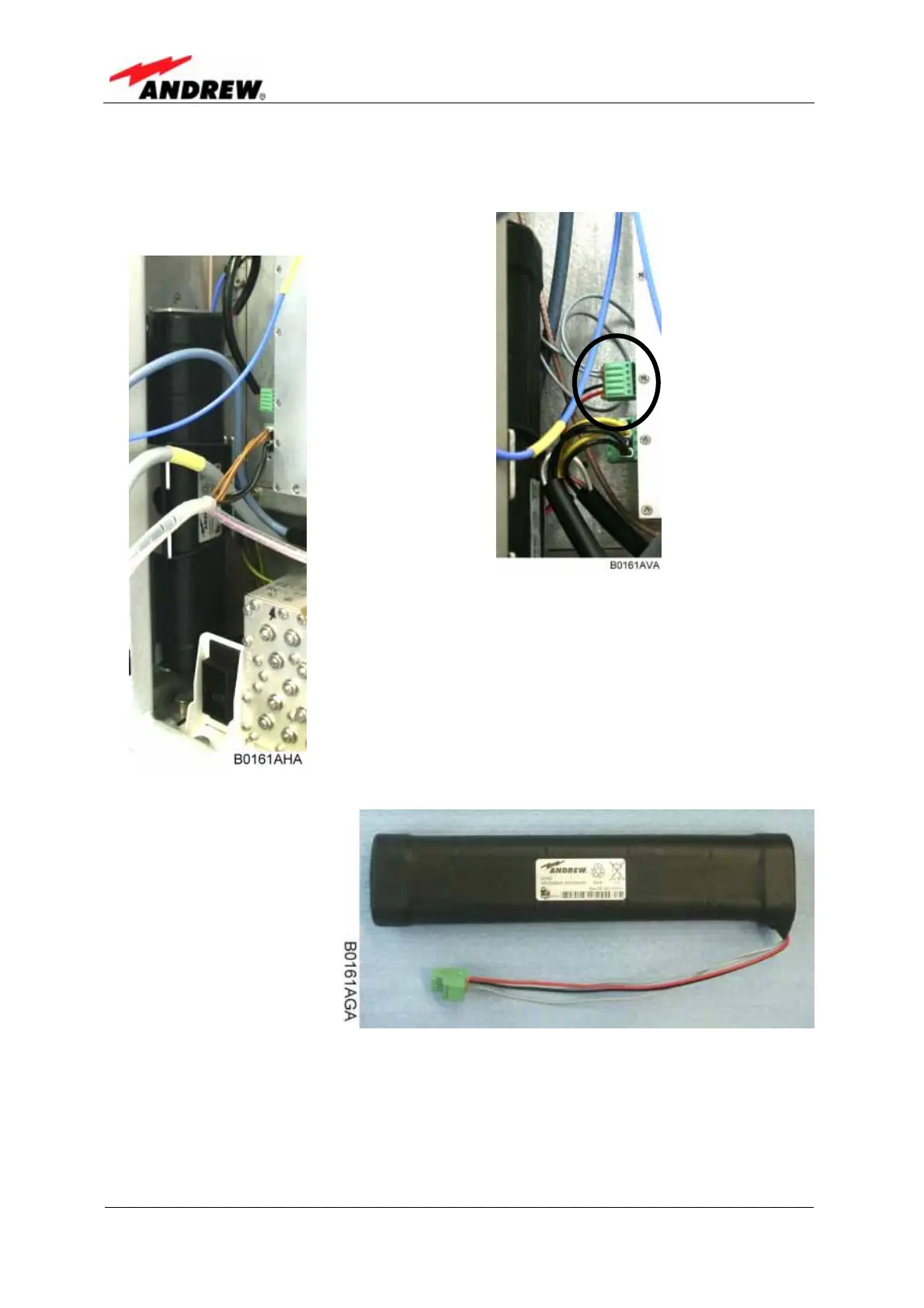

figure 5-2 Battery connection to DCM
• Before removing the battery, disconnect the
battery cable from DCM.
• Loosen the elastic band in the middle of the
battery pack.
• To install the new module, proceed in reverse
order.
figure 5-3 Location of
battery pack
figure 5-4 Battery pack
