TECHNICAL DATASECTION 2
APPLIANCE
DIMENSIONS
4
MODEL RFF190 RFF280
A mm 1448 1524
inches 57 60
B mm 158 158
inches 6
1
⁄4 6
1
⁄4
C mm 559 660
inches 22 26
D mm 279 279
inches 11 11
Emm 80 80
inches 3 3
F mm 1397 1397
inches 55 55
G mm 432 490
inches 17 19
1
⁄4
H mm Min - Max 150 -300 150 - 300
inches Min - Max 6 - 12 6 - 12
J mm Min - Max 483 - 7000 533 - 4000
inches Min - Max 19 - 276 21 - 156
K mm 310 310
inches 12
1
⁄4 12
1
⁄4
L mm 305 305
inches 12 12
M mm 345 396
inches 13
1
⁄2 15
1
⁄2
N mm 275 326
inches 11 13
O mm 610 610
inches 24 24
J
H
E
B
A
C
D
G
F
K
L
L
N
O
L
M
MINIMUM SERVICE CLEARANCE
RECOMMENDED SERVICE CLEARANCE
RECOMMENDED SERVICE CLEARANCE
RECOMMENDED SERVICE CLEARANCE
RECOMMENDED SERVICE CLEARANCE

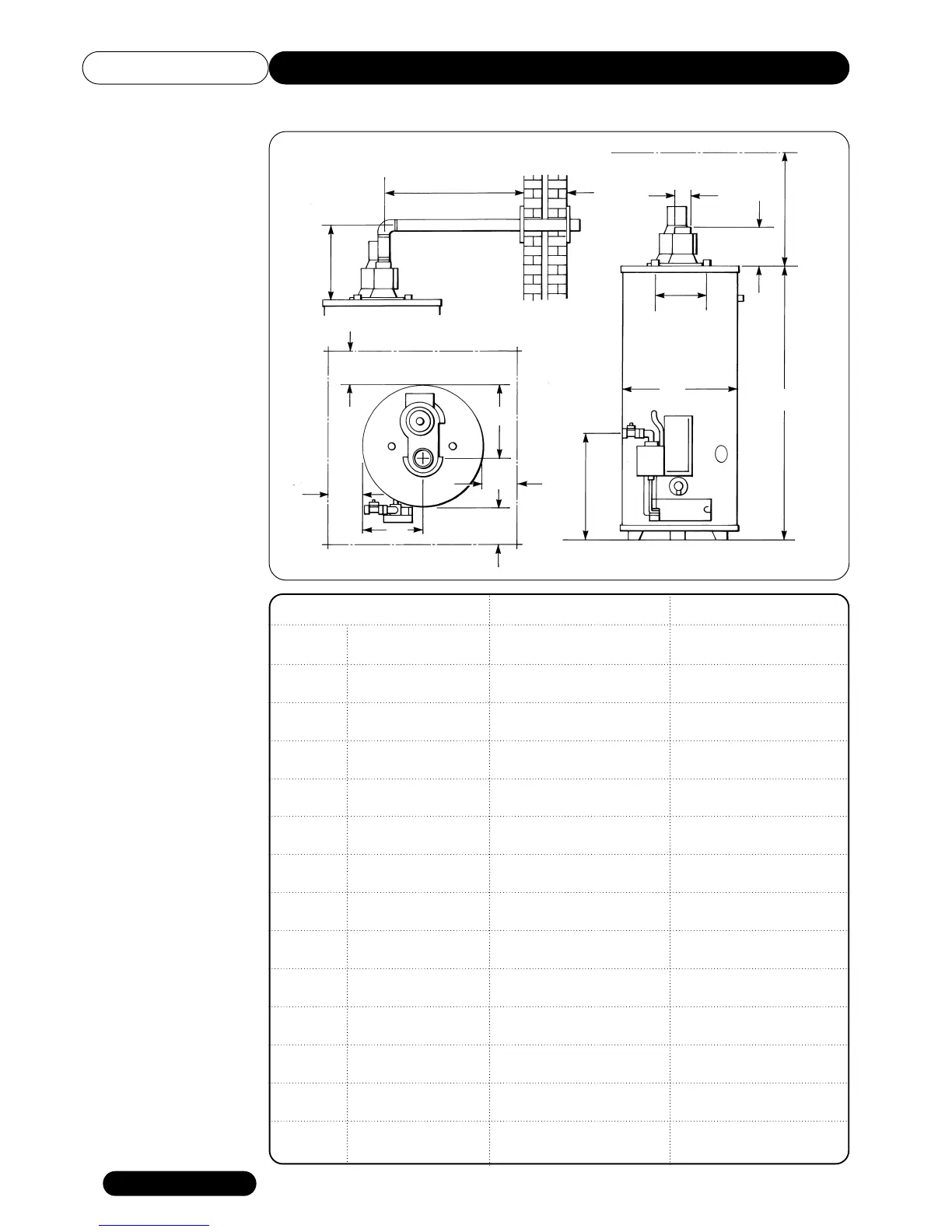

Fig 1.
