Name
QTY
Note
Mainboard
1
M3*15 Pillar
4
M3*25 Screw
4
M3 Nut
4
Mainboard
Please Install in the recommended hole

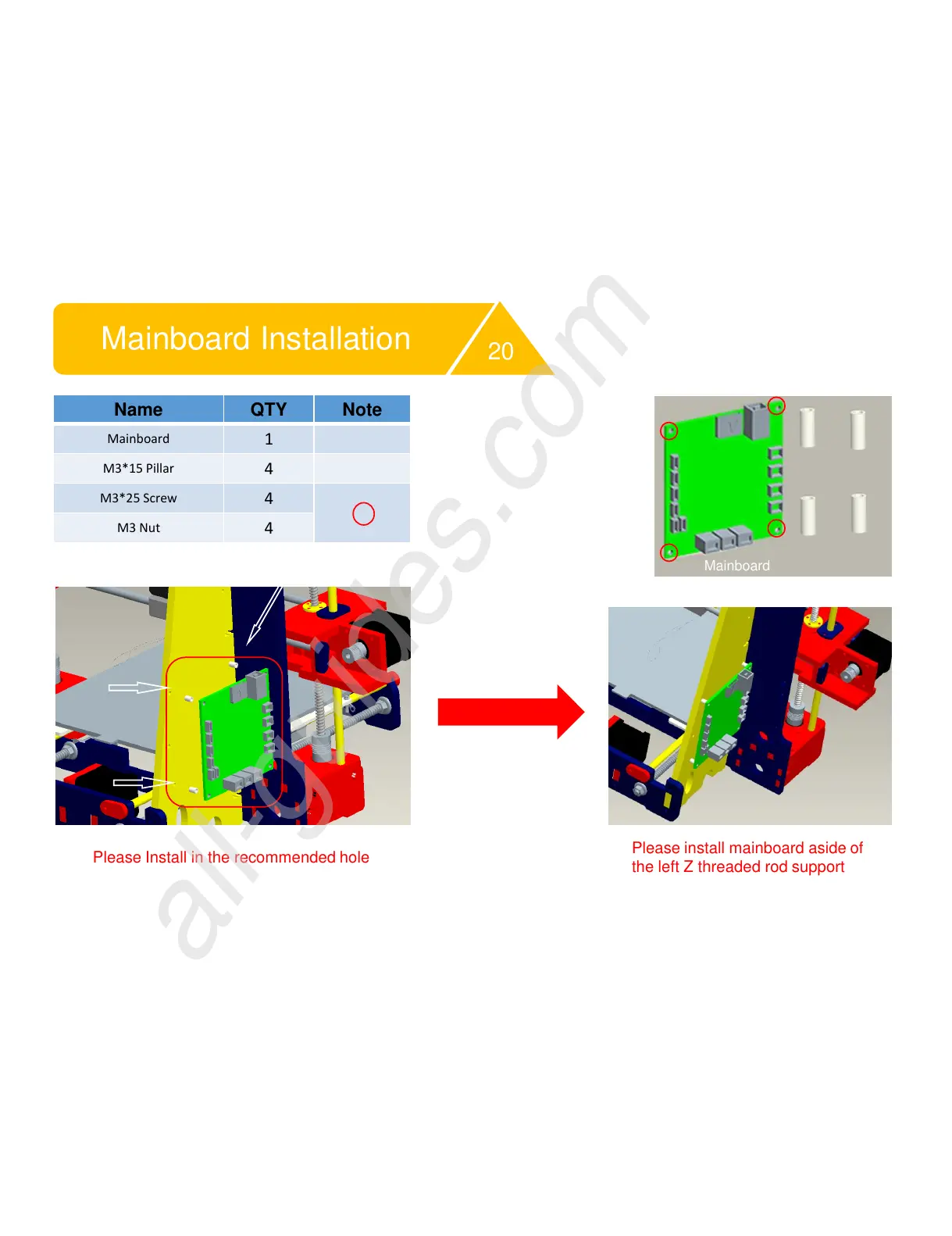

Mainboard Installation
20
Please install mainboard aside of
the left Z threaded rod support
