Power Supply Installation
21

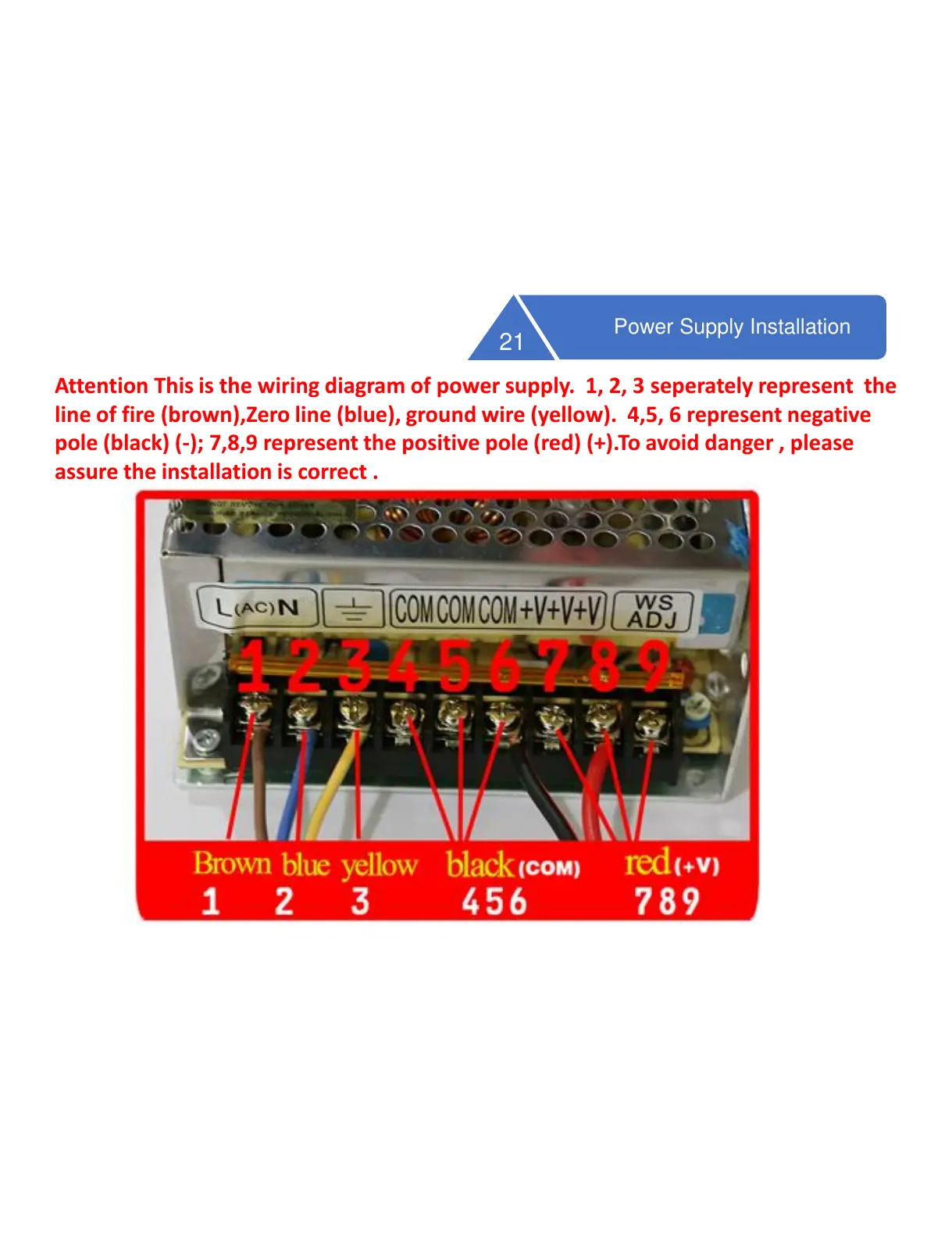

Attention This is the wiring diagram of power supply. 1, 2, 3 seperately represent the
line of fire (brown),Zero line (blue), ground wire (yellow). 4,5, 6 represent negative
pole (black) (-); 7,8,9 represent the positive pole (red) (+).To avoid danger , please
assure the installation is correct .
