Anritsu VectorStar MN469 C Series User Manual

2. System Connections
QSG-4 PN: 10410-00738 Rev. C VectorStar MN469xC QSG
Rear Panel Connections
1. Connect the GPIB cable between the VNA Rear Panel Dedicated GPIB connector and the Test Set IEEE
488.2 GPIB connector as shown in Figure 2.
2. On the VNA rear panel, remove and set aside the eight SMA (m-m) loops.
3. Install the eight semi-rigid cables provided as shown in Figure 2 and Table 1.
4. Connect the AC Power Cords to the VNA and the Test Set and then to the AC Mains.

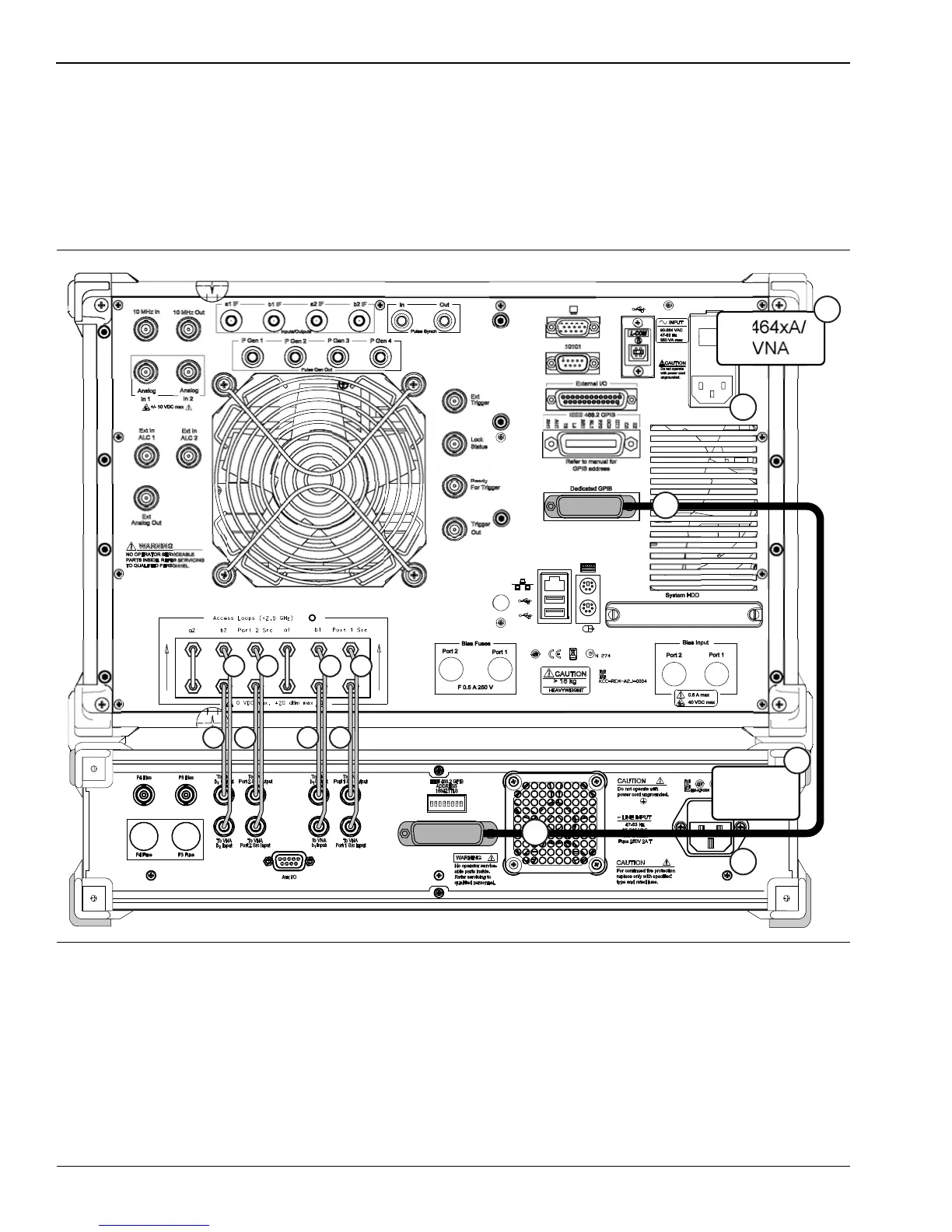

Figure 2. MS464xA/B VNA and MN469xC Test Set Rear Panel Connections (MS464xB shown)
MN469xC
Test Set
MS464xA/B
VNA
3
10
11
11
12
13
10
5
6
7
8
9
2
4
