ANSMANN W5 User Manual

2-Channel Wheel Radio W5 2.4 GHz
G

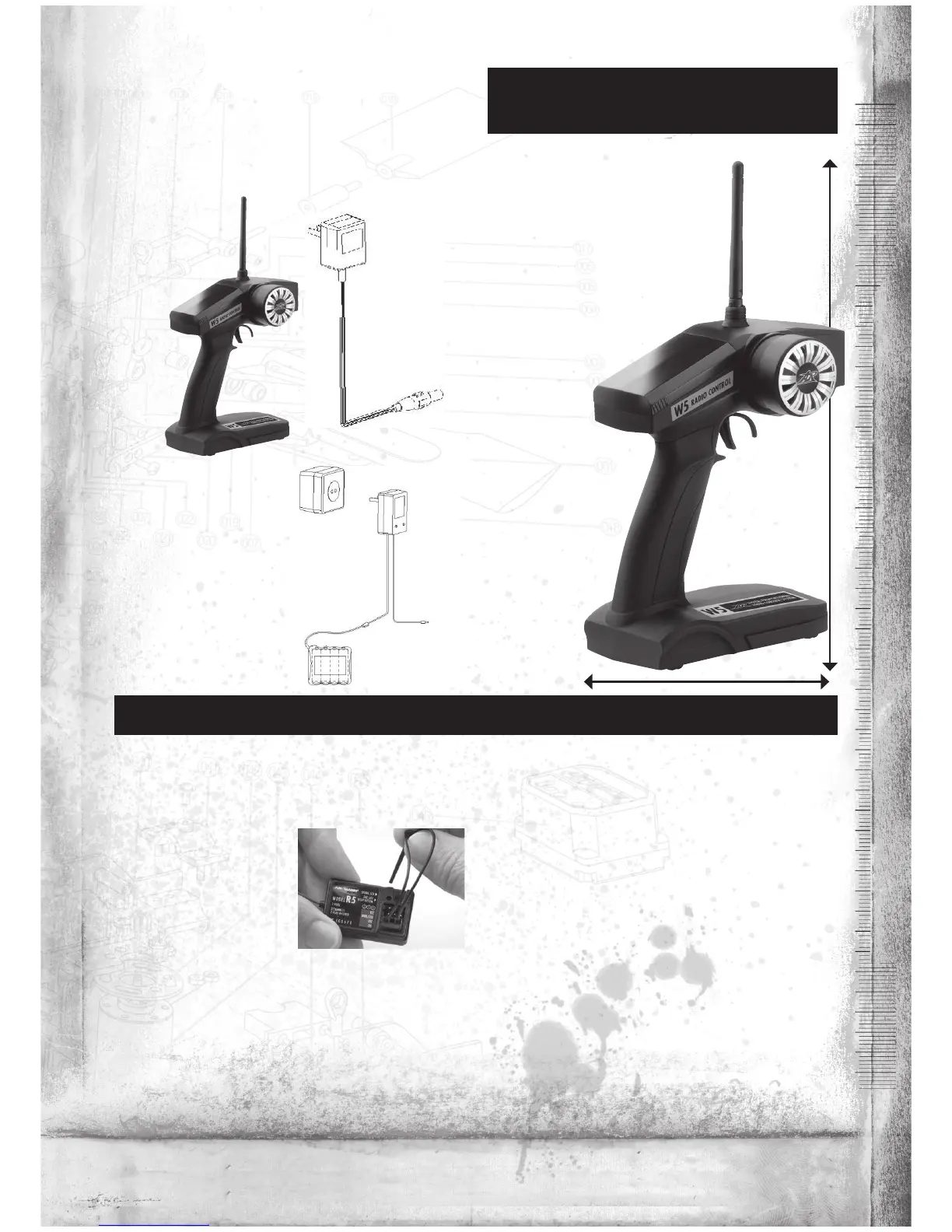

5.01 Transmitter Charger
• Install the battery to transmitter with correct direction and cover it.
• Connect the charger to the commerical power connector.
• Connect the charger to the transmitter connector.
• Cut off the power supply immediately after recharge completed.
Charger not included
159 mm
315 mm
5.02 Receiver
charger
• Connect the charger to the
commercial power connector.
• Connect the rechargeable
receiver with battery charger.
• Recharge completed, cut off
the power supply immediately.
Specifications:
• Channels: 2
• Model type: car/boat
• RF power: less than 20 dbm
• Modulation: GFSK
• Code type: digital
• Sensitivity: 1024
• Low voltage warning:
yes (less than 9 V)
• DSC port: yes (3.5 mm)
• Charger port: yes
• Power: 12 vdc (1.5 aa *8)
• Weight: 328 g
• ANT length:
26 mm
• Size: 159 x 99 x
315 mm
• Color: black
• Certificate: CE FCC
Specifications:
• Channels: 3
• Model type: car/boat
• Frequency band: 2.4 GHz
• Modulation: GFSK
• Sensitivity: 1024
• RF receiver sensitivity:
-100 dbm
• Power: 4.5–6 vdc
• Weight: 5 g
• ANT length: 26 mm
• Size: 37.6 x 22.3 x 13 mm
• Color: gray semi-transparent
• Certificate: CE FCC
2. Setup Method:
a) Turn on the power of transmitter.
b) Connect power supply to receiver; LED on receiver should be solid.
c) Control the throttle trigger to make servo or speed controller to
“brake” or “stop” mode and remain for a while.
d) Press setup button on receiver, then LED on
receiver should be sparkling and will be off after 3 second.
e) Setup is complete.
3. Testing Method:
a) Turn on the power of transmitter.
b) Connect power supply to receiver.
c) Turn off the power of transmitter.
d) Servo or speed controller which controlled by throttle trigger will
automatically goes to the state of location that setup already
before.
e) In case can be complete step by step with the above action, means
setting is correct.
Art.No. 152000100
6. Transmitter
Parameters
7. Receiver Parameters
1. Function introduction:
Fail safe function – digital protection against radio interference.
The safety electronic can detect reception of a “false” or incomplete
radio signal. E.g. due to a low transmitter battery or environmental
radio interference which reach the model, or if the model is out of
the transmitter range. For protection against damage, speed control
switches to the neutral position and the model comes to a stop.
