2-Channel Wheel Radio W5 2.4 GHz
G

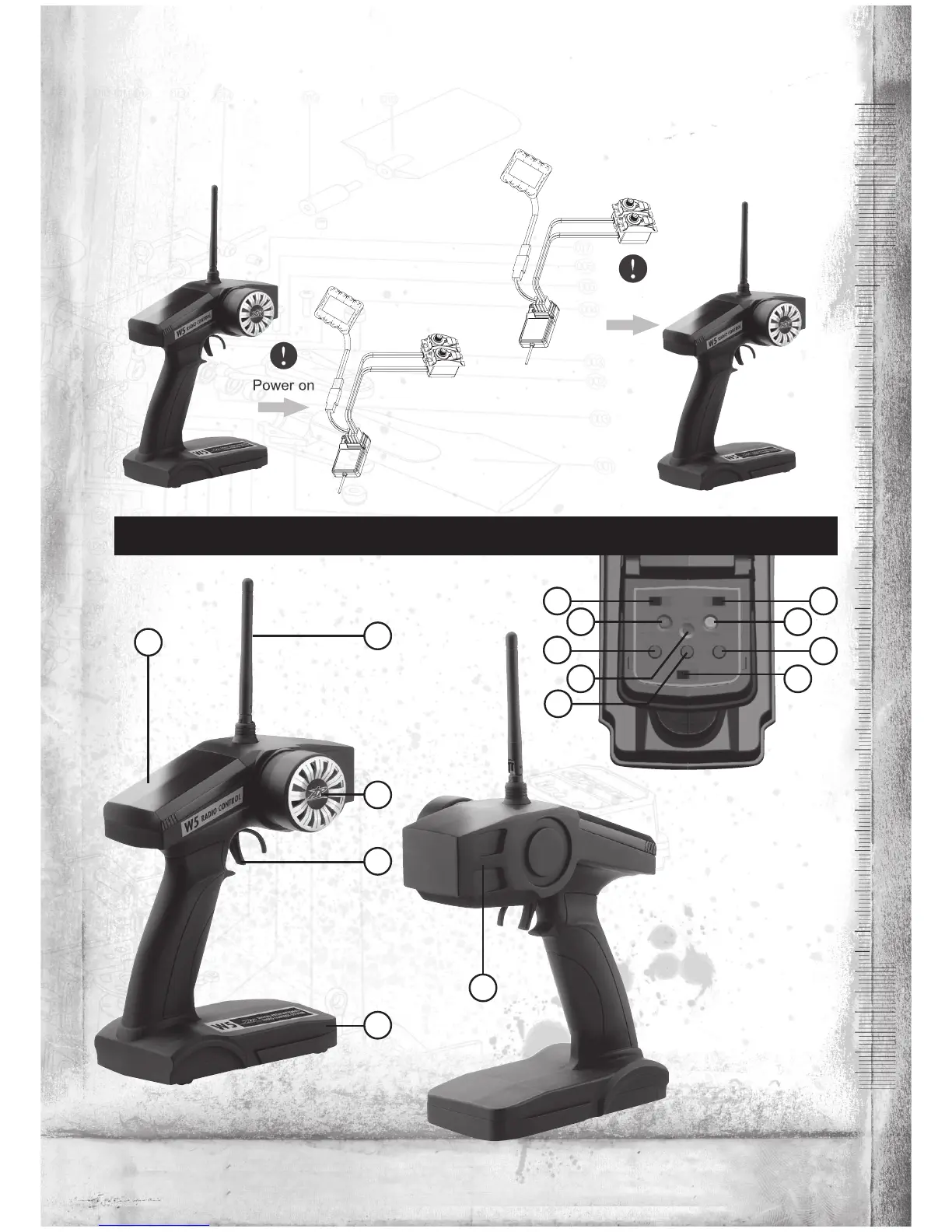

10. Each Part of the Transmitter
9.02 Power on
• Connect every part.
• Switch on the power supply of the transmitter.
• Connect the power supply of the receiver.
• Receive LED light solid.
• Finish and use.
9.03 Shut down
• Cut off the receiver power supply.
• Cut off the transmitter power supply.
Shut Down
Tx Power ON Tx Power OFFRx Power ON
Rx Power OFF
1 Control Box
2 2.4 GHz Antenna
3 Steering Wheel
4 Throttle Trigger
5 Battery Box
6 Charger
7 ST REV
8 Power LED
9 ST Trim
10 Bind
11 TH REV
12 Power Check
13 Dual Rate
14 Power switch
15 TH Trim
