Antari M-7X - Page 10

10

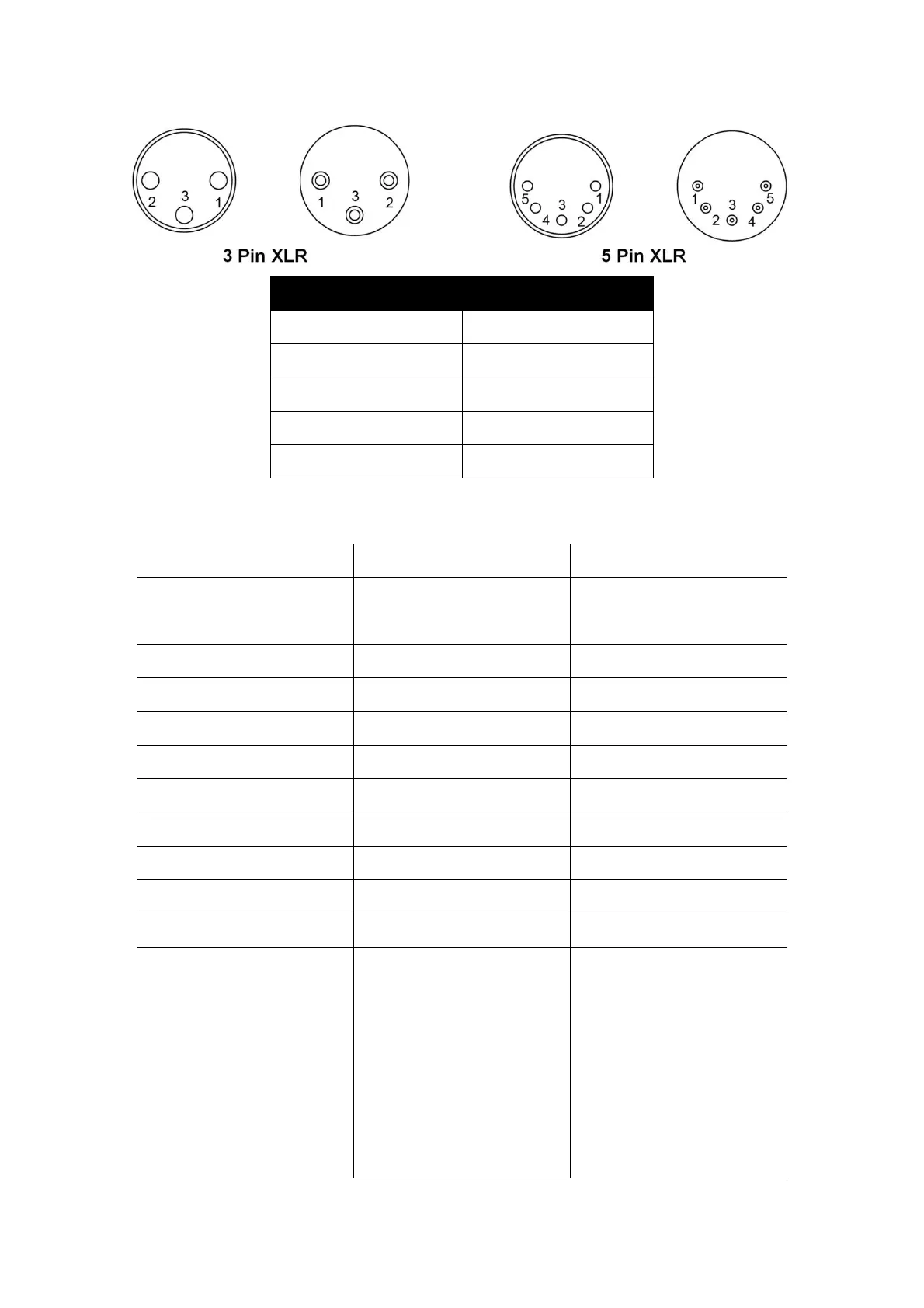

Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
DMX Channel Function
Channel 1
DMX Value Range
Function
Fog
0 – 4
5 – 255
Fog Off
Fog On (lasts for 20s)
Channel 2
DMX Value Range
Function
Red LED
0-255
0-100%
Channel 3
DMX Value Range
Function
Green LED
0-255
0-100%
Channel 4
DMX Value Range
Function
Blue LED
0-255
0-100%
Channel 5
DMX Value Range
Function
Amber LED
0-255
0-100%
Channel 6
DMX Value Range
Function
Chase
1-15
16-31
32-47
48-63
64-79
80-95
96-111
Chase 1
Chase 2
Chase 3
Chase 4
Chase 5
Chase 6
Chase 7
