2. CONNECTIONS continued …

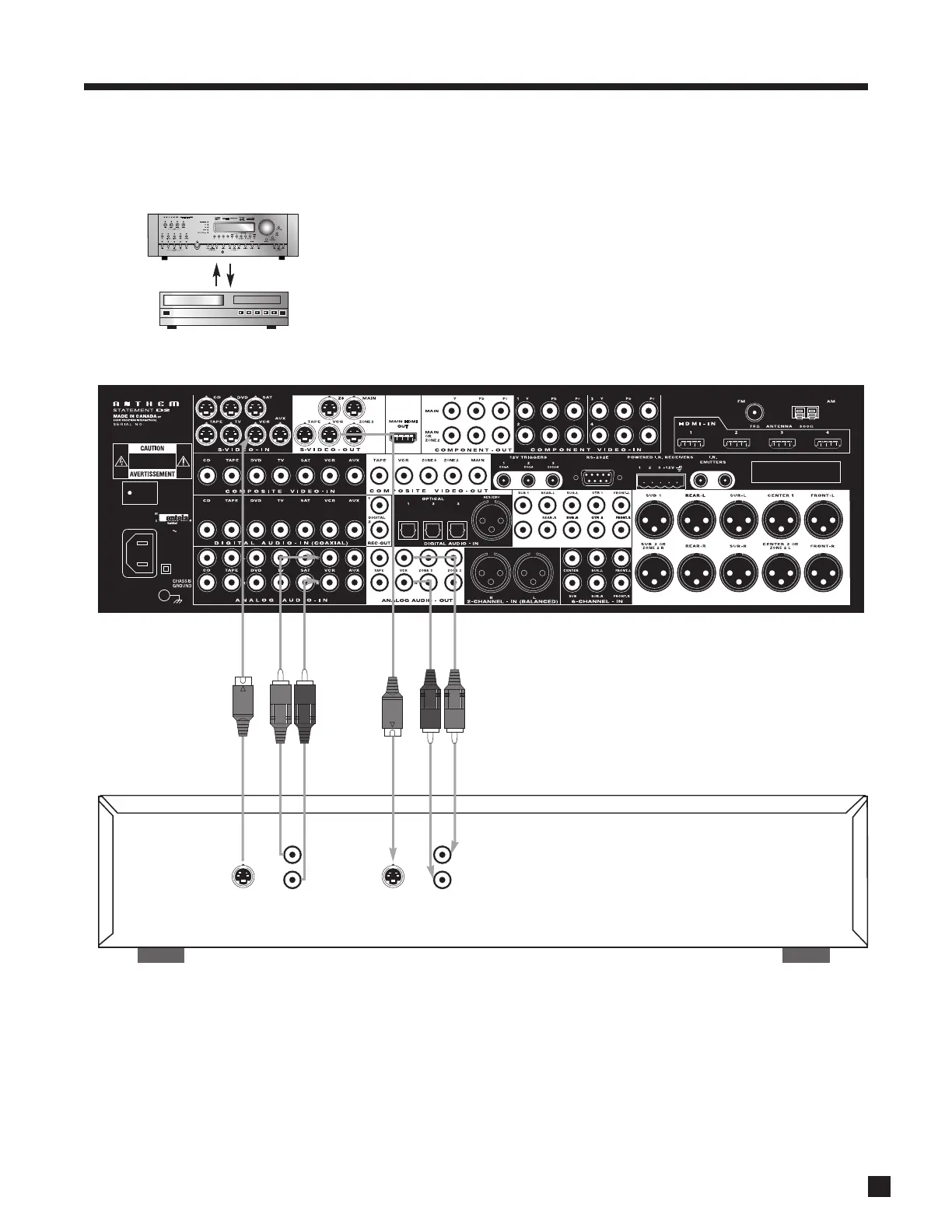

Example 2: Video recorder to processor
VCR
EJECT
AUDIO
OUT
L
R
AUDIO
IN
For ZONE2, ZONE3, and
REC, in most cases you
must use the same input
type as the output type.
If MAIN uses a different
input connection, all you
need to do is add these
connections for ZONE2,
ZONE3, and REC.
VIDEO
OUT
VIDEO
IN
L
R

