2. CONNECTIONS continued …

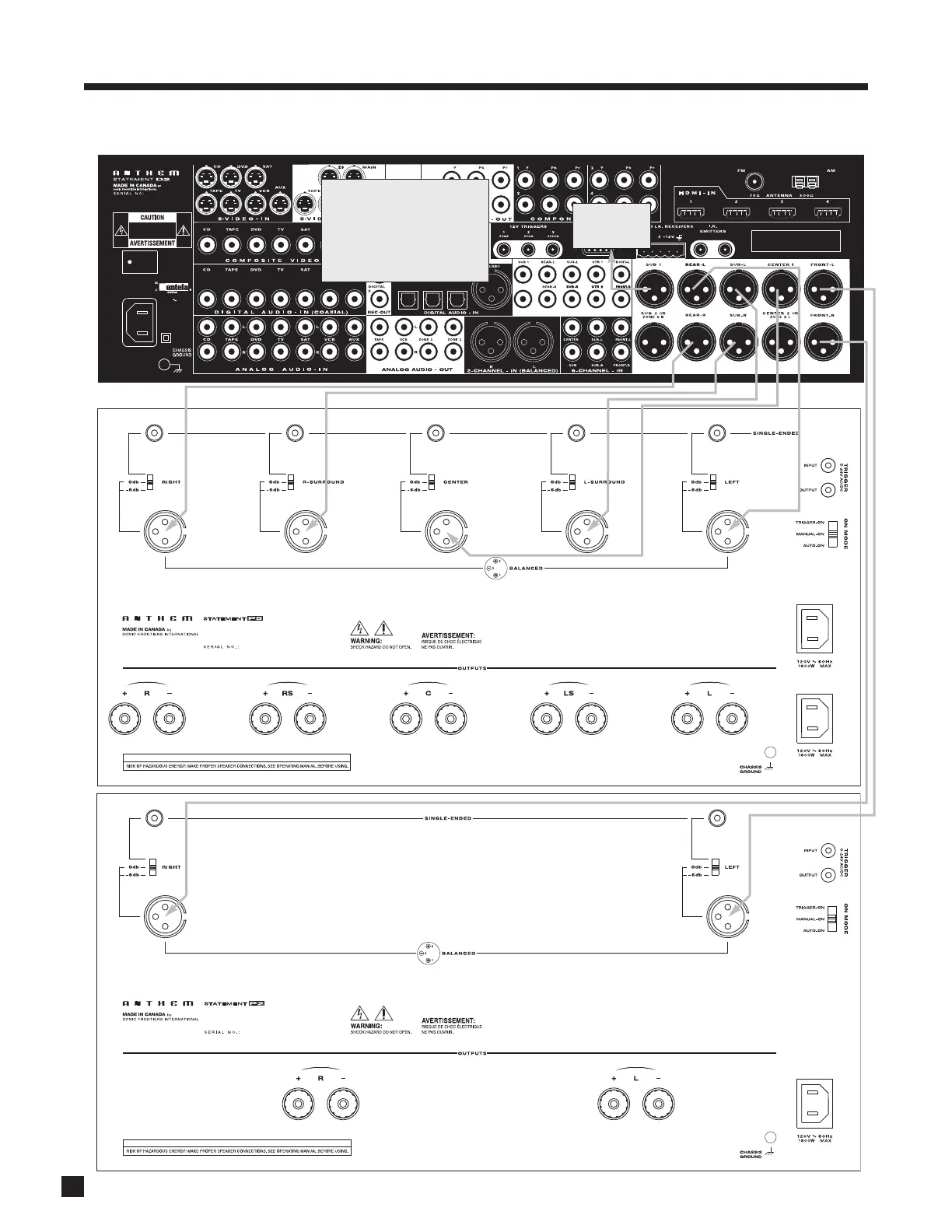

Example 3: Processor to amplifiers and subwoofer (Balanced connection shown, single-ended is similar)
120V 60Hz
170W MAX
EXPANSION PORT
SHOCK HAZARD
DO NOT OPEN.
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
MAIN AUDIO-OUT (BALANCED)
SUB 2
MAIN AUDIO-OUT
To powered
subwoofer
Trigger Setup Suggestion:
If it is not necessary to have both
amplifiers turned on when stereo
sources are playing, set triggers
to turn on only the 2-channel
amplifier when a stereo source is
selected (see section 3.11).
